Climax Technology SD-29-AC-ZW Series User Manual-Draft

S D - 2 9 - A C - Z W
S D - 2 9 - A C - Z W

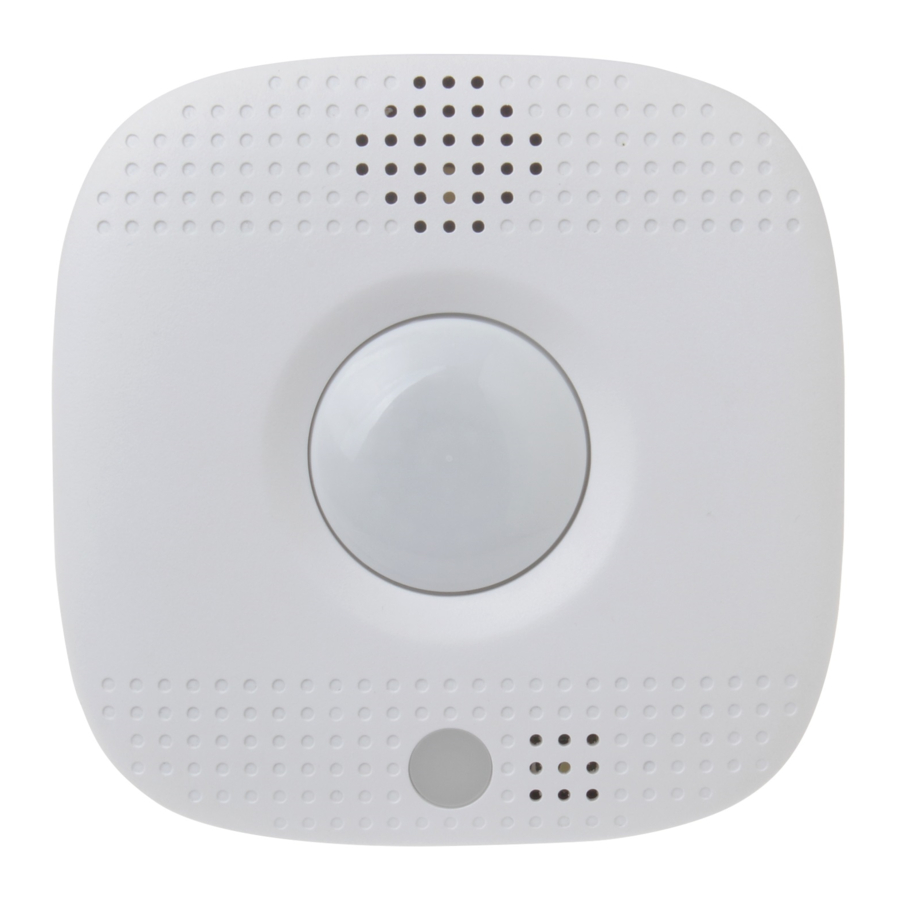

SD-29 series is a mini-sized wireless smoke detector with built-in PIR motion sensor, temperature sensor and emergency light (optional).
Designed to protect your family against potential fire hazards, the Smoke detector is also capable of detecting movements and reporting
temperature to users. The Z-Wave Smoke Detector allows access to the "S2 Unauthenticated" class.
The SD-29 is a wirelessly operated photo-electronic Smoke Detector designed to operate with any Z-Wave enabled controller devices; it also
features smoke detecting, temperature sensing and IR detection. The Smoke Detector's alarm situations, battery condition, operating conditions,
supervisory data and general fault information are sent to the Z-Wave Gateway/Control Panel wirelessly. The device is also serially connected
with other sensors in the Z-Wave gateway to serve as an extra siren. When any other sensor in the Z-Wave network is activated and sends an
alarm signal, the Smoke Detector will also raise alarm with its built-in buzzer as a siren to help sound warning.
The SD-29 is a Z-Wave enabled device and is fully compatible with any Z-Wave enabled network. Z-Wave is a wireless communication protocol
that uses a low-power RF radio
The Smoke Detector calibrates for the air contents after warming up to determine a standard condition for the environment. It can also be
manually instructed to calibrate for air content. It is also pre-programmed to automatically calibrate once a month.
The Smoke Detector includes the following models:
Model Name Heat Detection
SD-29-TH-SC
SD-29-THM
SD-29-THME
P a r t s I d e n t i f i c a t i o
P a r t s I d e n t i f i c a t i o
1. LED Indicator /Function Button / Emergency Light
Red LED
 Turns ON briefly: Transmitting signal.
 Quick flash: Alarming.
 Flashes every 1 second: Smoke Detector under Sleep Mode
 Flashes every 2 seconds: Smoke Detector under warmup and calibration process.
 Flashes every 4 seconds: battery exhausted.
Orange LED
 Flash every second: Device power on/Calibration failed.
 Flashes every 5 seconds: Detecting smoke failed or device malfunctioning.
 Flashes every 4 seconds: battery exhausted.
 Flashes every 45 seconds: Low battery condition
Function Button
 Press the button once to send temperature signal to the gateway.
 Press the button once during alarm to silence the alarm.
 Press the button twice to discharge before inserting new batteries.
 Press the button 3 times within 1.5 seconds to send a learn code.
 Press and hold the button for 10 seconds to enter calibration process.
 Press and hold the button for 20 seconds to perform factory reset.
White LED (Emergency Light)
 The emergency light will begin to flash slowly to alert uses that the system is alarming. (SD-29-THME only)
2. IR Lens
3. Buzzer
4. Battery Compartment Fixing Screw
5. Tamper Switch
6. Battery Switch
S m o k e D e t e c t
S m o k e D e t e c t
.
Temperature Sensor
O
O
O
n
n
o r S e r i e s
o r S e r i e s
PIR Sensor
O
O
O
1
Emergency Light
O
O
O
D r a f t V e r s i o n
D r a f t V e r s i o n
Serial Connection
O
O
O
