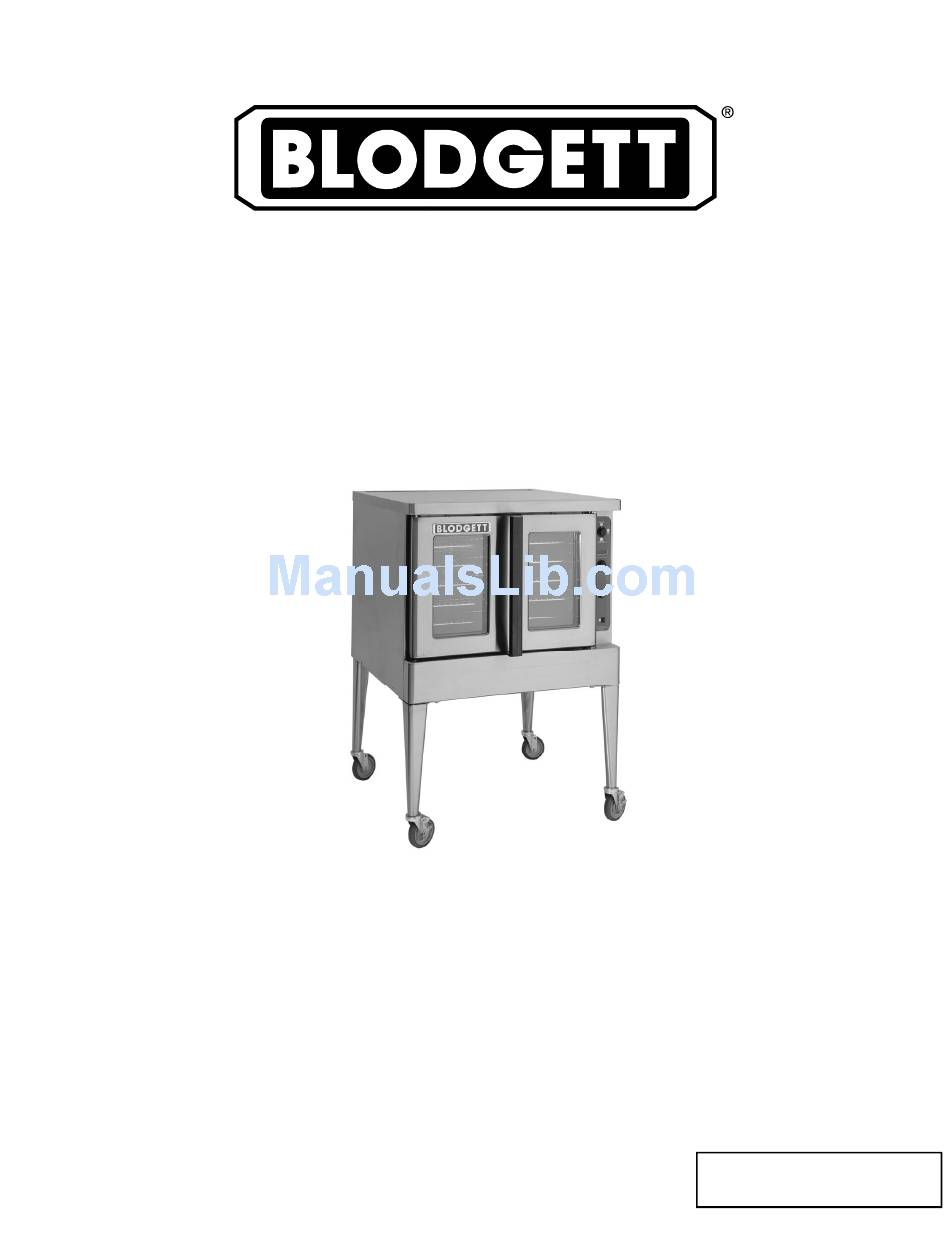

MARCH 20, 2006
1
MARK V XCEL
MARK V XCEL SERIES
ELECTRIC CONVECTION OVEN
REPLACEMENT PARTS LIST
EFFECTIVE MARCH 20, 2006
BLODGETT OVEN COMPANY
, 44 Lakeside Avenue, Burlington, Vermont 05401 USA
Telephone: (802) 860-3700 (800) 331-5842 Fax: (802) 860-3732
www.blodgett.com
Superseding All Previous Parts Lists.
www.blodgett.com
The Company reserves the right to make substitution in the event that items specified are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mark V XCEL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blodgett Mark V XCEL

Summary of Contents for Blodgett Mark V XCEL

  • Page 1 MARCH 20, 2006 MARK V XCEL MARK V XCEL SERIES ELECTRIC CONVECTION OVEN REPLACEMENT PARTS LIST EFFECTIVE MARCH 20, 2006 BLODGETT OVEN COMPANY , 44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: (802) 860-3700 (800) 331-5842 Fax: (802) 860-3732 www.blodgett.com Superseding All Previous Parts Lists.
  • Page 2 The identification plate is located above the right hand door under the ledge. SERIAL NUMBER IDENTIFICATION CODE: SERIAL NUMBER EXAMPLES PF = LETTER CODE FOR MARK V XCEL PF = MARK V XCEL 060103PF001T (NEW STYLE) 06/01/03 = DATE...

  • Page 3: Table Of Contents

    EXPLODED INTERIOR VIEW ... INTERIOR COMPONENTS W/EXTERIOR VIEW ... DOOR COMPONENTS ... LOWER DOOR SUPPORT COMPONENTS ... ACCESSORIES ... TABLE OF CONTENTS Doors Are Not Returnable MARK V XCEL PAGE 4 PAGE 5 PAGE 6 PAGE 7 PAGE 8 PAGE 9...

  • Page 4: Solid State Infinite Controls

    Light, Indicator 28V Red Round 37315 Buzzer, 24V 37335 Harness, Module, Inf 37058 Relay, DPST 24V 25A R3984 Relay, DPST 24V Coil 37334 Harness, Infinite, add in 37340 Module Assy, Infinite 2SP- includes everything (SAME) (SAME) (SAME) (SAME) MARK V XCEL pictured below.

  • Page 5: Solid State Digital Controls, 5 Key

    THESE PARTS WERE ADDED/ CHANGED DUE TO A CHANGE IN VOLTAGE. Ref. Part M6899 37335 37058 R3984 37336 (SAME) (SAME) (SAME) (SAME) MARK V XCEL Description Transformer, 208-240V/24V Harness, Control Relay 24VAC Relay, DPST 24V Module Assy, SSD- includes everything pictured below.

  • Page 6: Solid State Chpro3 Controls, 14 Key

    ** FOR OVENS BUILT AFTER 10/22/03- THESE PARTS WERE ADDED/ CHANGED DUE TO A CHANGE IN VOLTAGE. Ref. Part M6899 37058 R3984 37335 37338 (SAME) (SAME) (SAME) (SAME) MARK V XCEL Description Transformer, 208-240/24V Relay, 24VAC Relay, DPST 24VAC Harness, Control Module Assy, CHPRO 3...

  • Page 7: Solid State Iq2 Controls, 23 Key

    SOLID STATE CONTROLS IQ2 CONTROL 23 KEYS ** FOR OVENS BUILT AFTER 10/22/03- THESE PARTS WERE ADDED/ CHANGED DUE TO A CHANGE IN VOLTAGE. Ref. Part M6899 37361 37362 MARK V XCEL Description Transformer, 208-240/24V Harness, Control Module Assy, IQ2...

  • Page 8: Solid State Digital Controls With Humidaire, 5 Key

    36853 Harness, Humidaire 37098 Harness, Rear Humidaire 37058 Relay, 24 VAC M6899 Transformer, 208-240/24 38122 Contactor Upgrade Kit, Mechanical 24 V 36706 Module Assy, SSD w/ Humidaire NOTE: Modules include EVERYTHING pictured above, except probe. 5 KEYS MARK V XCEL...

  • Page 9: Humidaire Components

    Cap, End 19086 Grommet, Rubber 5/8 19087 Grommet, Nylon Split 21928 Terminal, Female .250 SPA 33488 Tube, Flex 1/4 x 12" 36623 Cover, Element Opening 36909 Fitting, Compression 36931 Tube, Water Inject 4817 Clip, Thermostat Bulb HUMIDAIRE COMPONENTS MARK V XCEL...

  • Page 10: Exploded Interior View

    Blower Wheel 33147 Wheel Puller 37875 Motor Mount & Panel Assy 37023 Motor, 230V, 1PH, 3/4 HP, 2 SP 37223 Element Assy, 208V 37224 Element Assy, 240V 37225 Element Assy, 440V 37226 Element Assy, 480V EXPLODED INTERIOR VIEW MARK V XCEL...

  • Page 11: Interior Components W/Exterior View

    37226 38248 37316 38263 36512 23034 22718 36621 36407 37205 MARK V XCEL Description Element Assy, 208V Element Assy, 240V Element Assy, 440V Element Assy, 480V Transformer, 480V to240V 1.5 KVA Transformer Harness Transformer Kit, 1.5 KVA Cover, Access Panel...

  • Page 12: Door Components

    Pressure Lock 36876 Gasket Assy, Perimeter 36037 Lower Door Support Assy 35193 Microswitch, Door 16470 Nameplate 90076 Arm Assy, RH 20359 Arm Assy, w/welded hinge pin, LH DOOR COMPONENTS MARK V XCEL DOOR HINGE COMPONENTS Side View, Lower Door Support Assy...

  • Page 13: Lower Door Support Components

    NOTE: IF YOU NEED TO REPLACE THE SPROCKETS, CHAIN & TURNBUCKLE, OR THE HINGE PIN WE STRONGLY SUGGEST ORDERING THE ENTIRE LOWER DOOR SUPPORT. IT WILL INCLUDE ALL OF THESE COMPONENTS AND WILL GREATLY REDUCE YOUR LABOR COSTS AND TIME INVESTED. MARK V XCEL...

  • Page 14: Accessories

    Casters Set of 4 Sgl Oven Only Casters, Low Profile Set of 4 Dbl Oven Casters, Heavy Duty Low Profile Set of 4 (Jarvis & Jarvis) Dbl Oven Open Stand w/ Feet, S/S Mark V Xcel Open Stand w/ Casters,S/S MarkVXCE...
