Summary of Contents for XpressFill XF4400

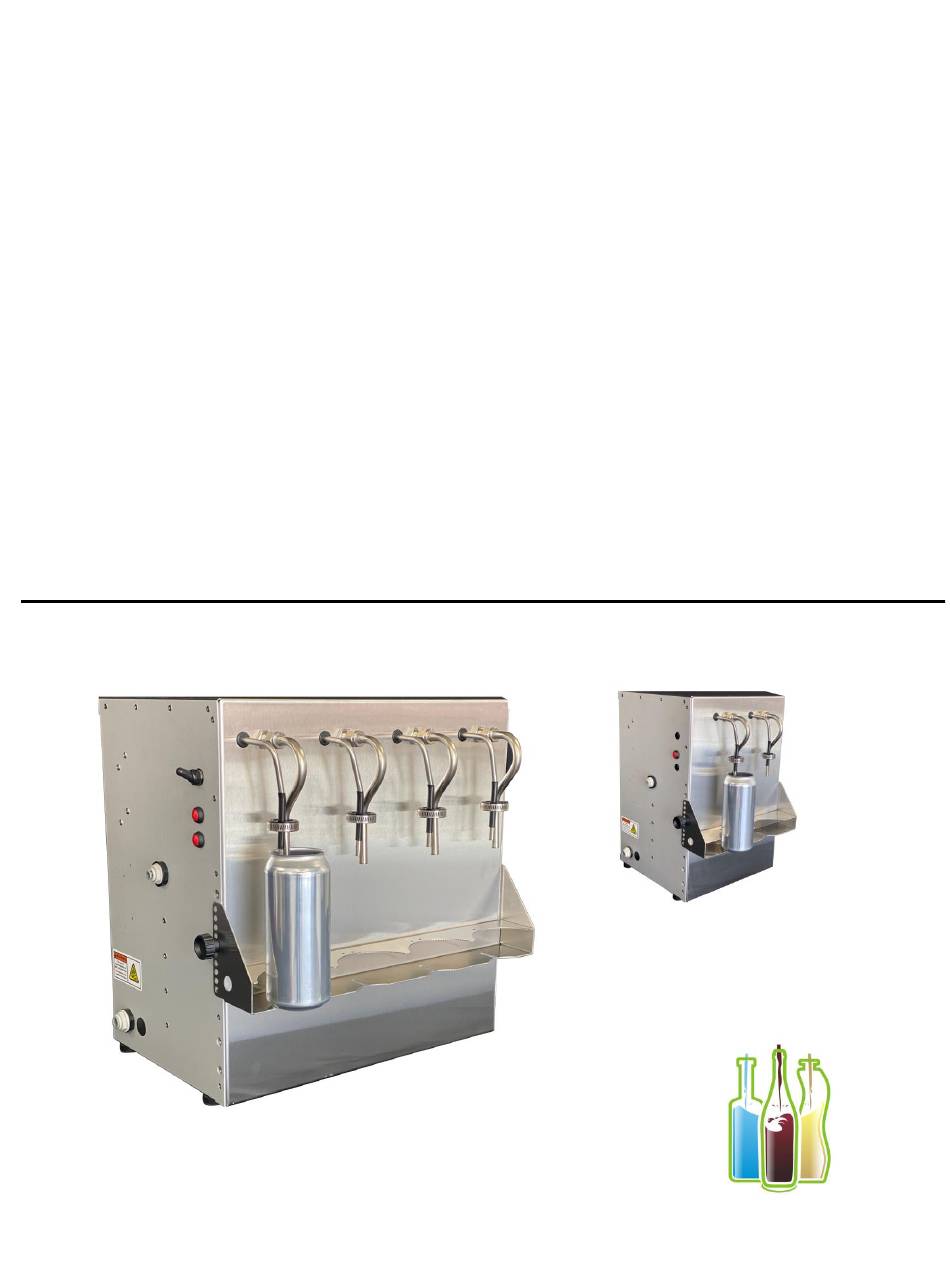

- Page 1 XpressFill XF4400 / XF2200...
- Page 3 Do not use the can filler covered in this manual unless you are certain the electrical supply has been correctly installed and the can filler has been properly grounded. 265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | sales@xpressfill.com...
- Page 4 Safety Warnings...
- Page 5 The guarantee may be rendered invalid if the customer has made repairs or alteration to the machine without first consulting XpressFill Systems LLC. 265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | sales@xpressfill.com...
- Page 6 Note: The XF2200 Two-spout can filler will only have 1 top-off button per side and 1 fill-cycle switch on the right side of filler. 265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | sales@xpressfill.com...
- Page 7 Fluid pressure should be set to 2 – 4 psi to avoid foaming. CO2 pressure for gas purge may be set higher if you are using a separate source, to increase fill time. (Recommended) 265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | sales@xpressfill.com...
- Page 8 Top-Off Buttons With an XF4400 pictured, on the left- and right-hand sides of the filler there are two or four Top-Off buttons. Once your product has stopped filling due to the level sensor you may top off each can individually by pressing the Top- Off button.
- Page 9 9 | XpressFill Systems LLC Troubleshooting If at any time you have issues with the setup or adjustment of your XF4400/XF2200 can filling machine, or any questions about filling your product, please contact XpressFill at the number listed in this manual. We are always happy to assist you.
- Page 10 CO2 to dry it out. Just hook up as pictured and run the cycles as previously described. 265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | sales@xpressfill.com...
- Page 11 A tool is provided and can be found in the accessory kit. Collet Push collet in with tool to remove tubing 265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | sales@xpressfill.com...
- Page 12 There is a spare fuse in the power cord receptacle. Unplug the machine and set a screwdriver on the notch (do not remove screws) and pop the spare fuse holder toward you, then replace the fuse. XpressFill Part No. 200002 –...
- Page 13 Reassemble and replace in the filler. The white plastic body is marked #1 for output and #2 for input. The valve may leak if installed back- wards. 265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | sales@xpressfill.com...
- Page 14 Reassemble and replace in the filler. Stainless steel valve body is marked #1 for input, #2 for output. Note: Valve may leak if installed backwards. 265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | sales@xpressfill.com...
- Page 15 300091 – 3/8” Union 300095 – 5/16” ID surgical tubing for fill spout 900003 – 1/4” Hose barb to push to connect adapter 265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | sales@xpressfill.com...
