INSTALLING THE ALTERNATIVE 40mm FASCIA PANEL:

Ariston 600 / 900 Slide-out Range Hood – ARHS 60X-L / ARH9SIX-L

This document is a quick guide on how to replace the fascia panel (front rail) of your slide-out range hood.

This range hood model is factory fitted with an 80mm front rail that is suitable for both recirculating and ducted

installations. However, if the appliance is being installed in ducted mode, there is an option of replacing the

standard front rail with the 40mm fascia panel that is also supplied in the product packaging.

Disassembling the bracket that holds the sliding switches provides access to the screws that hold the front rail

in position. Please follow the instructions below when replacing the front rails.

Instructions

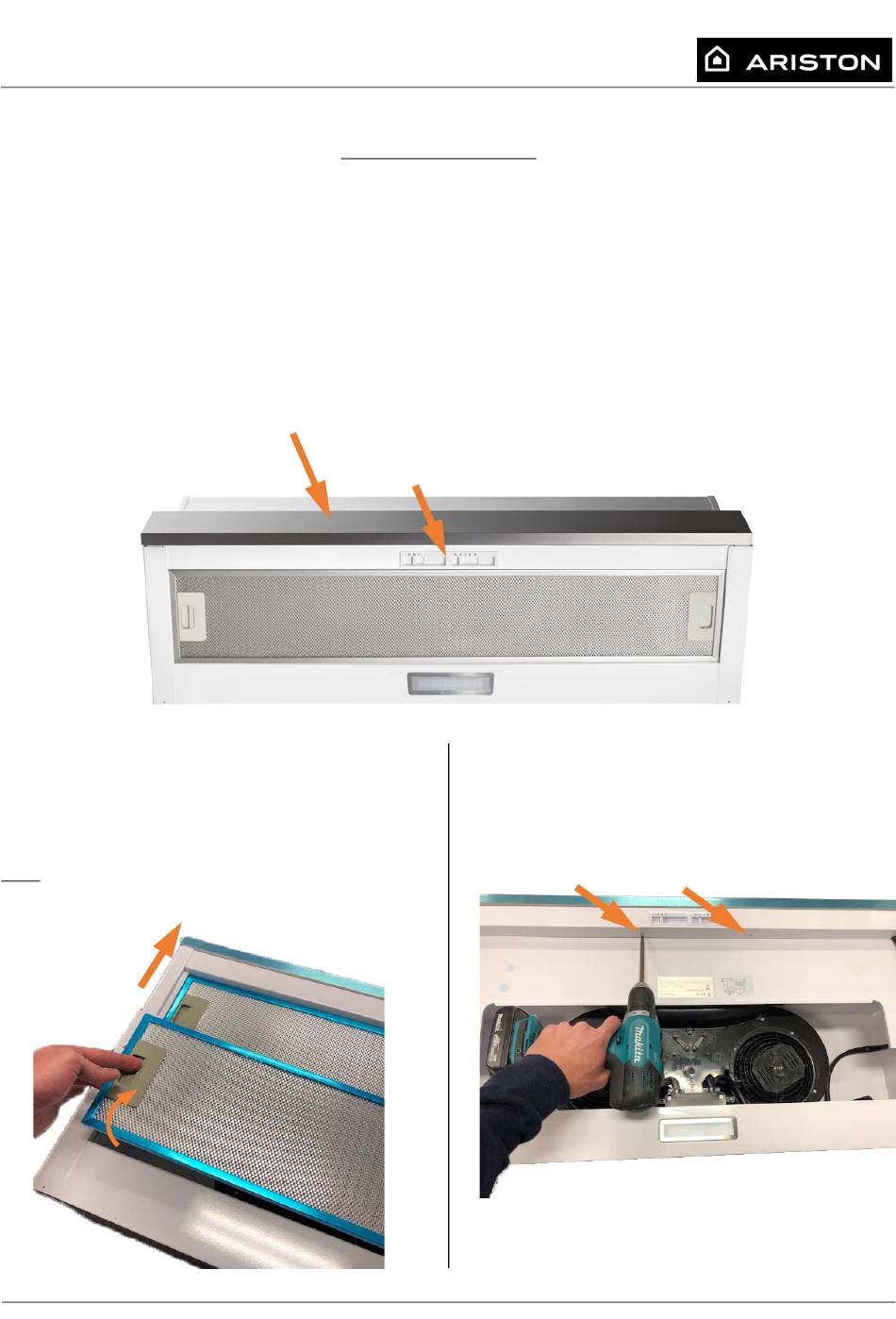

1 – Before installing the appliance, slide open the

filter drawer and remove both filter panels.

NOTE: remove the protective blue film from parts once the

installation is completed.

2306013.001 – 80mm Fascia Panel (spare part)

2306013.002 – 40mm Fascia Panel (spare part)

2399000.414 – Sliding Switch (spare part)

2 – Remove all 4 screws that hold the sliding switch

bracket in position. Two on each side of the filter

drawer (top and bottom).

Table of Contents

Do you have a question about the ARHS 60X-L and is the answer not in the manual?

Page 1 INSTALLING THE ALTERNATIVE 40mm FASCIA PANEL: Ariston 600 / 900 Slide-out Range Hood – ARHS 60X-L / ARH9SIX-L This document is a quick guide on how to replace the fascia panel (front rail) of your slide-out range hood. This range hood model is factory fitted with an 80mm front rail that is suitable for both recirculating and ducted installations.
Page 2 5 – Slightly twist and slide the front rail to unhook it from the drawer tab. 3 – Remove the sliding switch bracket. Please note that a cord will still be attached to the bracket. 6 – Reverse the previous step to hook the 40mm front rail in place.
Page 3 7 – Close the drawer and ensure that the front rail is centred and square. 8 – Screw the front rail in place. (Step 4 in reverse). 9 – Replace the sliding switch bracket in position making sure that the cable is aligned with the cut- out on the bracket.
