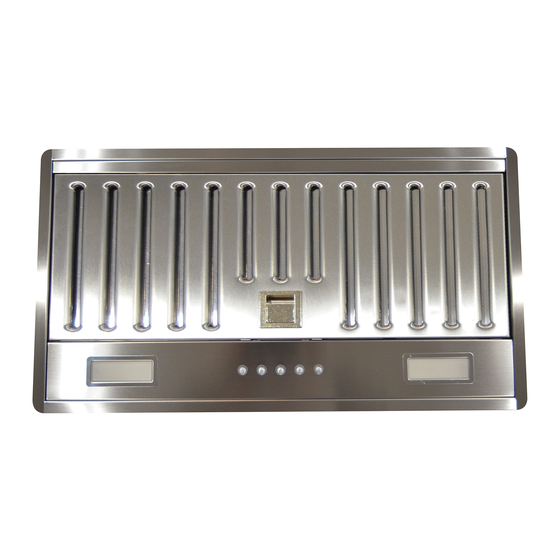

USER MANUAL
520,700,850 // UNDERMOUNT HOOD
AGITUM520 | AGITUM700 | AGITUM850
IMPORTANT // Please ensure that you read through this user manual prior to installation and use. This
manual contains important information to ensure optimal performance and keep you safe. Please retain
your proof of purchase, as this will be required in the event that you require warranty service. Remember
to retain this manual for future reference.
520,700, 850 // UNDERMOUNT HOOD
Advertisement
Table of Contents
Related Manuals for Ariston AGITUM850
Summary of Contents for Ariston AGITUM850
- Page 1 USER MANUAL 520,700,850 // UNDERMOUNT HOOD AGITUM520 | AGITUM700 | AGITUM850 IMPORTANT // Please ensure that you read through this user manual prior to installation and use. This manual contains important information to ensure optimal performance and keep you safe. Please retain your proof of purchase, as this will be required in the event that you require warranty service.
-
Page 2: Hello
HELLO CONGRATULATIONS ON THE SELECTION OF THIS RANGEHOOD. OUR APPLIANCES HAVE BEEN SPECIFICALLY DESIGNED FOR AUSTRALIAN AND NEW ZEALAND KITCHENS. Please read through this user manual carefully as it contains information that will ensure that your appliance is installed correctly, important operating & care instructions and also some advice of what you need to do if this appliance is not performing as intended. -
Page 3: Table Of Contents
CONTENTS HELLO CONTENTS WARNING & SAFETY INFORMATION INSTALLATION & DUCTING OPERATING INSTRUCTIONS MAINTAINING YOUR RANGEHOOD ELECTRICAL WIRING PROOF OF PURCHASE NOTES IMAGES CONTACT DETAILS 520,700,850 // UNDERMOUNT HOOD... -
Page 4: Warning & Safety Information
WARNING & SAFETY INFORMATION This appliance is not intended for use The minimum distance between the by persons (including children) with hob surface and the lowest part of the reduced physical, sensory or mental rangehood is 600mm. This distance capabilities, or lack of experience and shall be at least 650mm, if the knowledge, unless they have been rangehood is installed over a gas hob. -
Page 5: Installation & Ducting
INSTALLATION & DUCTING AGITUM 520,700,850 // UNDERMOUNT HOOD... - Page 6 INSTALLATION & DUCTING IMPORTANT Before handling the rangehood during installation, it is recommended that you remove the filter to prevent damage. Fig 1.2 illustrates the minimum height from the hob surface to the underside of the rangehood. Electric hob - 600mm Gas hob - 650mm NOTICE: IF THE INTRUCTIONS FOR THE GAS HOB SPECIFY A GREATER DISTANCE, THIS HAS TO BE...
- Page 7 INSTALLATION & DUCTING TOP DUCTING SIDE DUCTING RE-CIRCULATING (Carbon filter required) DUCTED OPTION NOTICE // ALL DUCTING MATERIAL MUST BE COMPLIANT WITH THE LOCAL LAWS IN FORCE. INSTALLATION Before installing the appliance, make sure that none of the parts is damaged in any way. In case of damaged parts, contact your retailer and do not proceed with installation.
- Page 8 INSTALLATION & DUCTING Essential precautions to respect before in- stalling the appliance are the following: 1) Prepare the power supply. 2) Prepare a hole for the exhaust of the air both in the filtering and in the exhau sting version. Use an exhausting pipe whose maximum length does not exceed 5 meters.
-
Page 9: Operating Instructions
OPERATING INSTRUCTIONS Model: Agitum A: Motor switch on/off (1st rate level) B: 2nd rate level switch C: 3rd rate level switch D: 4th rate level switch E: Light switch on/off The products are endowed with an electronic device which allows the automatic switching off after 4 hours working from the last operation. -
Page 10: Maintaining Your Rangehood
MAINTAINING YOUR RANGEHOOD GENERAL MAINTENANCE Ensure that the power to the unit is switched off prior to cleaning the unit. Surface should only be cleaned with warm soapy water and a soft non-abrasive cloth. In coastal environments and humid areas more frequent cleaning is required to maintain the finish. Particular care is due to the grease filter. - Page 11 MAINTAINING YOUR RANGEHOOD LAMPS Before to replace the led lamp switch off the appliance then by using appropriate tools remove the led lamp from its slot (Fig. 5). Take out the led lamp from its connector and replace with similar characteristics. To find the correct led lamp please check on the replacement part list.
-
Page 12: Electrical Wiring
ELECTRICAL WIRING... -
Page 13: Proof Of Purchase
PROOF OF PURCHASE ATTACH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE 520,700,850 // UNDERMOUNT HOOD... -
Page 14: Notes
NOTES 520,700,850 // UNDERMOUNT HOOD... - Page 15 NOTES 520,700,850 // UNDERMOUNT HOOD...
-
Page 16: Images
IMAGES AGITU M 520: 505mm x 270mm AGITU M 700: 685mm x 270mm AGITU M 850: 835mm x 270mm Fig.1 Fig.2 Fig.3 Fig.4 520,700,850 // UNDERMOUNT HOOD... - Page 17 IMAGES Fig.5 520,700,850 // UNDERMOUNT HOOD...
-
Page 18: Contact Details
Ph (09) 306 1020 FX (09) 302 0077 sales@aristonappliances.co.nz ARISTON IS COMMITTED TO ONGOING RESEARCH AND DEVELOPMENT. EVERY EFFORT HAS BEEN MADE TO ENSURE ALL INFORMATION IN THIS USER MANUAL IS CORRECT AT TIME OF GOING TO PRINT. DIMENSIONS SHOULD BE USED AS A REFERENCE ONLY AND ACTUAL DIMENSIONS SHOULD BE TAKEN FROM THE PHYSICAL PRODUCT ONLY.
