Duplomatic UEIK-11RS Series Manual

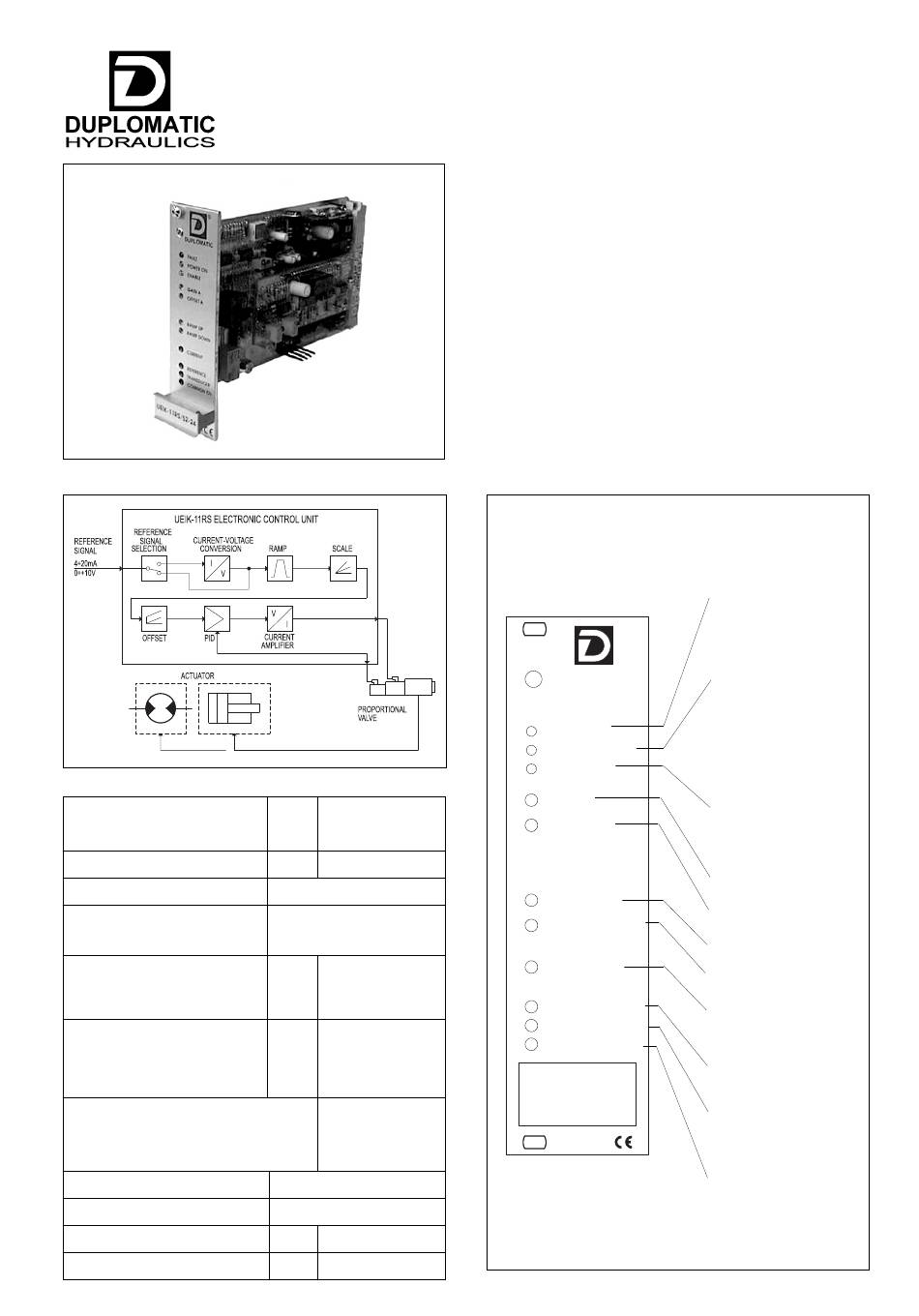

FUNCTIONAL BLOCK DIAGRAM
TECHNICAL CHARACTERISTICS
Power supply
Required power
Output current
Power supply electrical
protections
Reference signal:
– Voltage
– Current
Input reference signal
impedance:
– Voltage
– Current
Electromagnetic compatibility (EMC)
- EMISSIONS
EN 50081-1
- IMMUNITY
EN 50082-1
(see par. 5 - NOTE 1)
Card size
Connector edge
Operating temperature range
Mass
89 315/107 ED
22 ÷ 30
V DC
Ripple included
÷
W
20 45
see par. 3.4
– overload
– polarity inversion
0 ÷ +10
V
÷
mA
4 20
KΩ 10
Ω 250
in compliance with
89/336 EEC
Eurocard 100x160x35
DIN 41612-D 32 Male
÷
°C
0 50
kg 0,20
UEIK-11RS *
ELECTRONIC CONTROL UNIT
FOR SINGLE SOLENOID
PROPORTIONAL VALVE
WITH POSITION FEEDBACK
EUROCARD TYPE
FRONT PANEL
DUPLOMATIC
FAULT
POWER ON
ENABLE
GAIN
OFFSET
RAMP UP
RAMP DOWN
CURRENT
REFERENCE
TRANSDUCER
COMMON 0V
UEIK-11RS*/52-24
MADE IN ITALY
89 315/107 ED
SERIES 52
FAULT SIGNAL
RED LED
– Off: normal operation
– On: transducer fault
24 V DC POWER
SUPPLY
YELLOW LED
– On: normal operation
– Off: card disconnected,
faulty power supply to
card or fuse blown
CARD ENABLE
GREEN LED
– On: disabled
– On: enabled
Scale factor regulation
Offset current regulation
Ramp up regulation
Ramp down regulation
Solenoid current
measurement point
(1V=1A)
Reference signal
measurement point
Transducer signal
measurement point
(0 / -5V )
Common zero
1/4
