- Page 1 COT2000 SERIES PrimePour Operation Manual READ BEFORE USE. 840247002 2/15 Good Thinking ® For more visit www.commercial.hamiltonbeach.com...
- Page 2 The use of accessory attachments not consciousness and suffocation. recommended by Hamilton Beach Commercial may cause injuries. – SAVE THESE IN STRUC TIONS – Technical Services For assistance or replacement parts, call our...

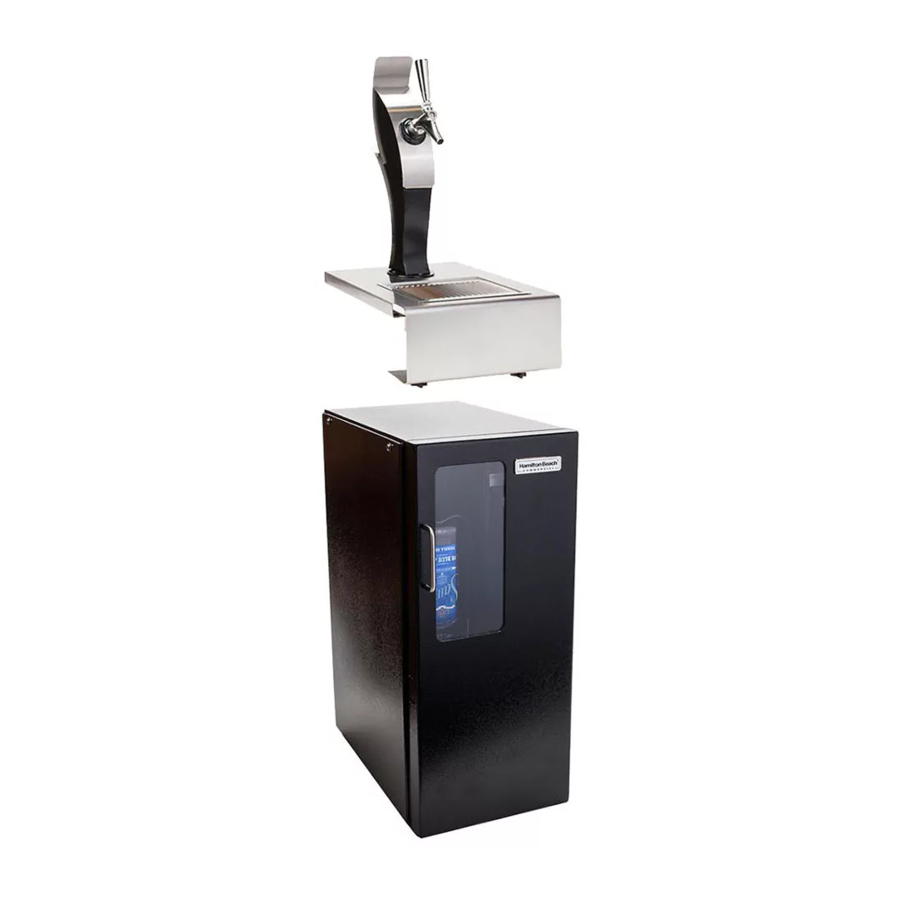

- Page 3 Parts and Features Tap Handle Tap Tower Drip Tray and Grate Tower Base Bag-in-Box (BIB) Cleaning Connector Pressure Gauge Bottle Holders Bag in Box (BIB) Quick Connect/ Bottle Disconnect (QCD) Nozzle Spirit Reservoir Side Access Panel Front Door Flow Control Orifice...
- Page 4 Operating Instructions The machine is calibrated to dispense at a ratio To replace the bag in box (BIB), pull out firmly of 3 parts drink mix to one part spirits. If you on the plunger, and slide the quick connect/ are serving a 12-ounce drink, fill the glass with disconnect (QCD) to the side.
- Page 5 Installation Remove the equipment Pull the spirits reservoir from the cabinet, which drawer out by cutting the includes the tap tower, cable tie securing it to the tower base, drip tray and cabinet. Remove the pump grate, spirit bottle holders cover by removing four red (quantity 3), and a bag of thumbscrews.
- Page 6 Installation (cont.) Fold the tip of the bottle nozzle On the control panel, over, and insert the nozzle into verify the spirits valve is the spirits reservoir, tilting the rotated to DISPENSE. bottle upside down. Lower the There may be sanitizer or bottle holder and secure by water in the hoses if it was tightening the thumbscrew.
- Page 7 Sanitizing (cont.) On the control panel, Pump the sanitizing solution through the verify the spirits valve is system by opening the tap handle. When rotated to DISPENSE. sanitizer is flowing freely at the tap, close the tap and allow the solution to work for Verify the CO supply 5 minutes.
- Page 8 Troubleshooting Guide (cont.) Problem . . . Solution . . . The pumps fail to stop • There is a leak in the hoses. Check for leaks inside the cabinet and the hose cycling even when the running from the cabinet to the tap. tap faucet is closed.
