Pyle PHSP4 User Manual

PHSP4 - PHSP5

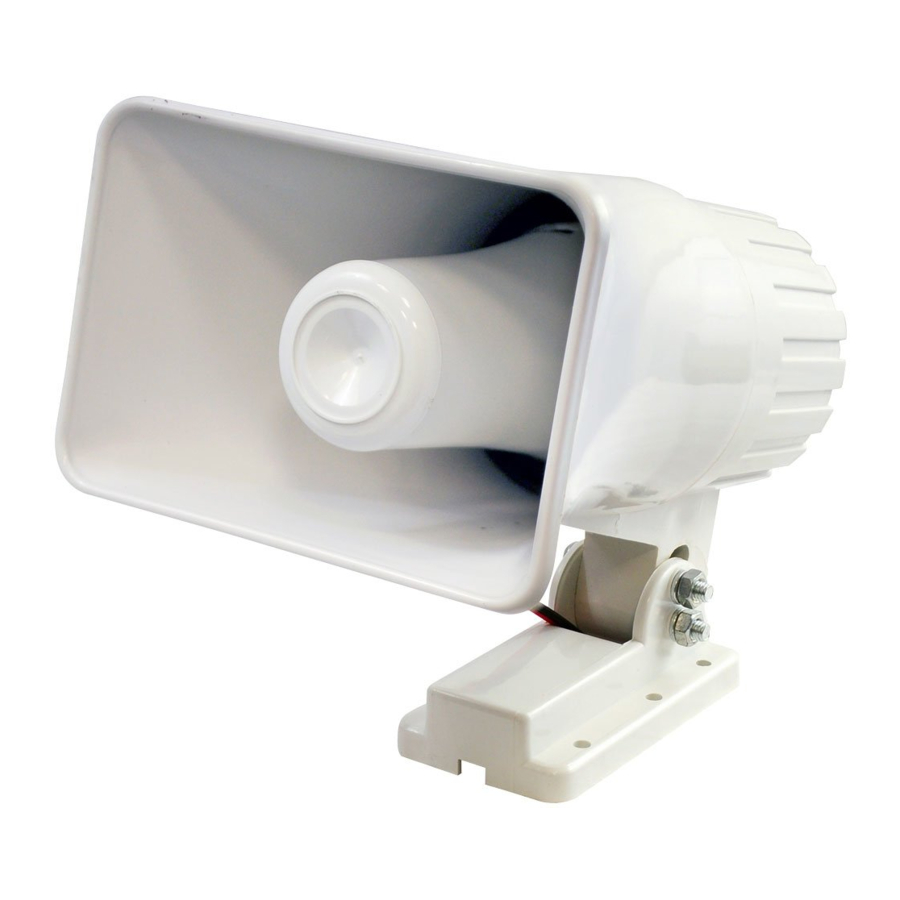

Indoor/Outdoor PA Horn Speaker
Please follow the instructions in this manual to
obtain the optimum results from this unit.
We also recommend that you keep this manual
handy for future reference.

How to use

1. Careful attention should be required fo the polarity
when more than two speakers are in operation at
the same place, otherwise the sound of poor
quality and/or sound pressure of low level will be
reproduced. Connection should be made in the
same way as in the case of battery, same polarity
with parallel connection and di erent polarity
with series connection.
2. When long wiring is called for, the low impedance
connection invites large power loss, resulting in
ine cient operation of speakers, In case wiring
becomes longer than 50 meters, equip matching transformer and use with proper
high impedance.
3. For low impedance connection, the total impedance of speakers should be equal
to output impedance of ampli er
4. Do not operate the unit for an extended period of time with the sound distorting.
This is an indication of a malfunction, which in turncan cause heat to generate
and result in a er.
Bracket
www.PyleUSA.com
29mm 27mm
Speaker
4mm
34mm
