Blitz BZKT1.2 Quick & Easy Installation

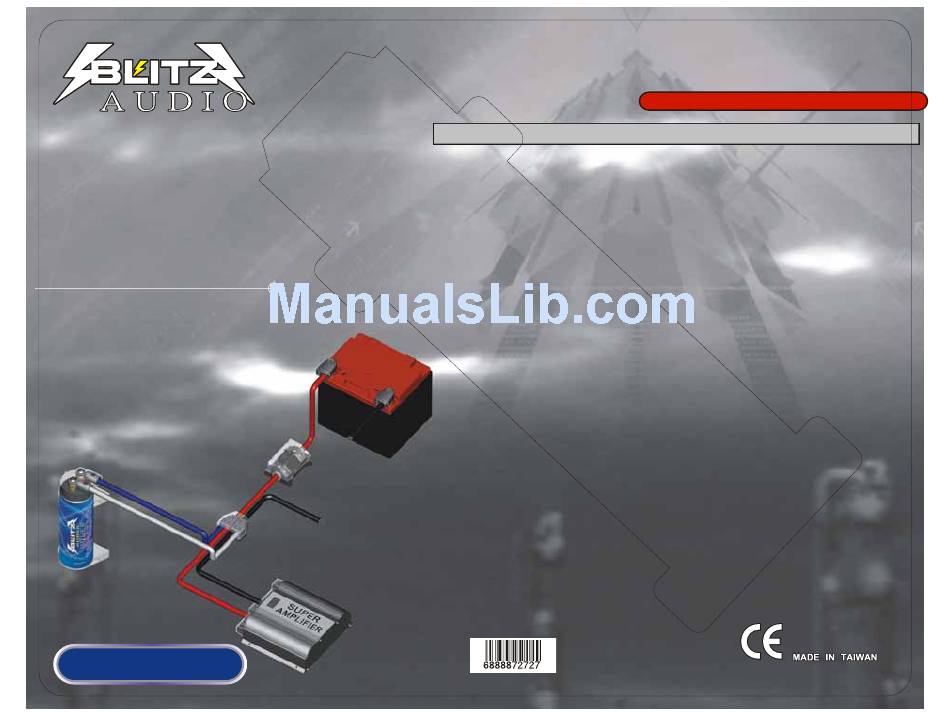

WIRING DIAGRAM WIRING DIAGRAM
Power Source(Battery) Power Source(Battery)
BLITZ 1.2 Farad BLITZ 1.2 Farad
Power Capacitor Power Capacitor
(Supplied) (Supplied)
4ft of 4 ga Power & 4ft of 4 ga Power &
Ground Wire (Supplied) Ground Wire (Supplied)
Power to Amplifier Power to Amplifier
BZKT12 BZKT12
0/4 ga Main Power & Ground wire 0/4 ga Main Power & Ground wire
Distribution Block(Supplied) Distribution Block(Supplied)
Your Amplifier Your Amplifier
1.2 FARAD DIGITAL POWER CAPACITOR WITH INSTALL KIT 1.2 FARAD DIGITAL POWER CAPACITOR WITH INSTALL KIT
QUICK & EASY INSTALLATION
1. Disconnect vehicle's battery.
2. Select mounting location for capacitor
3. Select a convenient location for installation of the distribution block.
4. Cut power and ground wires to existing amp or route wires to block for
a new install.
5. Connect the wires so they continue through the distribution block
on to the amp.
6. Connect ring terminals on power and ground wires to
capacitor and route wires to distribution block.
7. Cut wires to length and make connection.
8. Reconnect battery and enjoy a better sounding
system!
