Blitz BZCAP250 User Manual

25f hybrid super cap (carbon and electronic capacitor) with blue digital dc voltage and amperage display

Table of Contents

Download this manual

Model:

BZCAP250

25F Hybrid Super Cap (carbon and electronic capacitor)

With Blue Digital DC Voltage and Amperage Display,

Capacitance ............................................. 25,000,000 micro farad (25 Farad)

Working Voltage ........................................... 16DC

Surge Voltage ................................................ 18DC

E.S.R. (Equivalent Series Resistance)------ 0.0015 ohm @120hz/ 25°C

Capacitance Tolerance------------------------ ± 10%

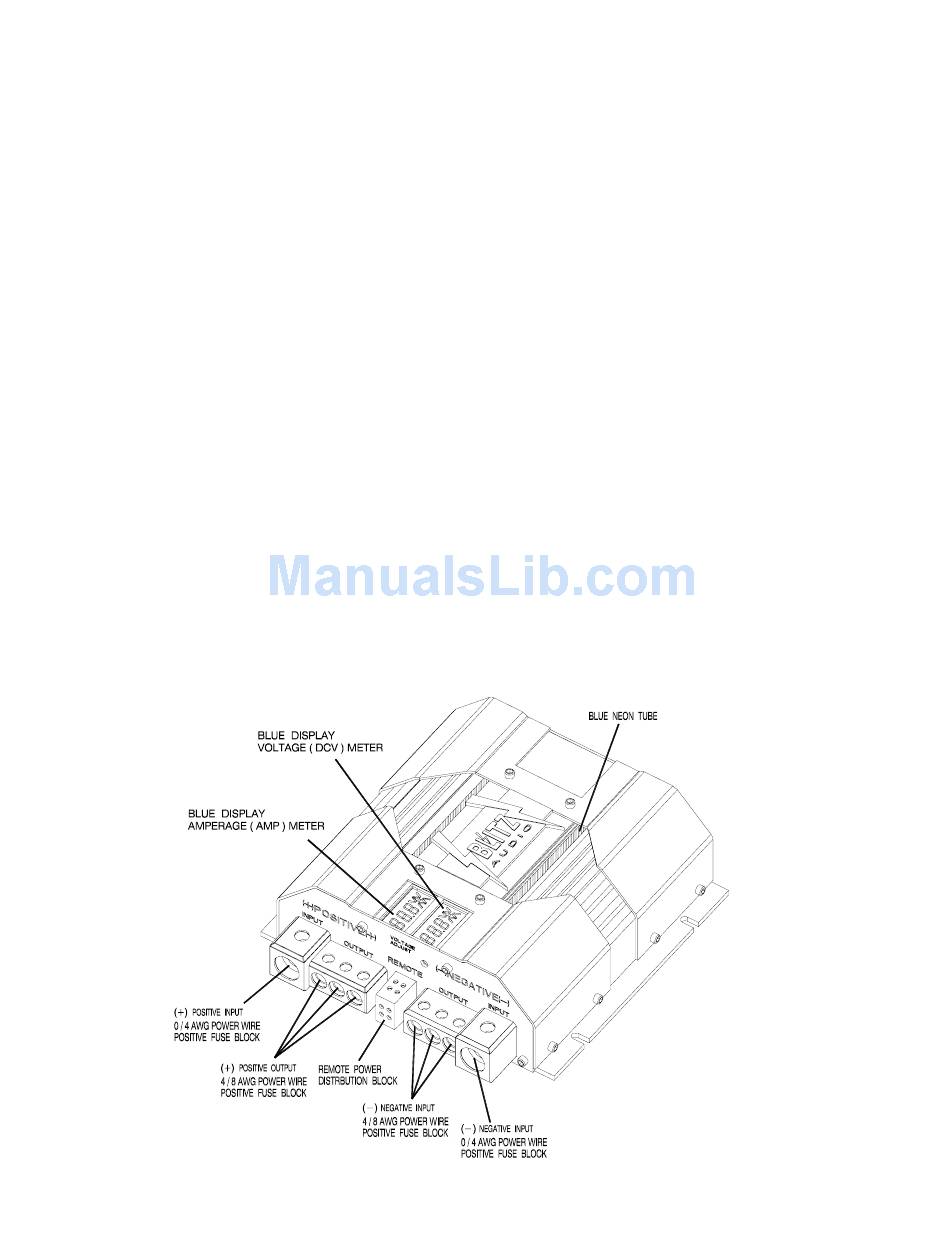

a) 3 digits hi-end blue light display DC voltage meter that can measure 0.1 DCV range.

b) 3 digits hi-end blue light display DC amperage meter that can measure 1 DCA

range.

c) Reverse polarity PCB audible warning function. If the capacitor is connected

incorrectly by reversing the positive and negative wires during the installation

process the PCB will issue a 45 second noise to warn you.

d) Hi-end platinum plated 100% brass solid parts and chrome plated metal cover

e) Blue neon tube in the front side of HYBRID SUPER CAPACITOR. The LED's

chase to power discharge.

Over voltage limit and low battery voltage limit warning. When the system voltage

peaks over 17.5 DCV or LESS than 10 DCV. The buzzer on the PCB will issue an

audible noise warning.

Multiple small capacitance capacitors linked to provide the lowest inner E.S.R. and

largest moment discharge power.

Table of Contents

Need help?

Do you have a question about the BZCAP250 and is the answer not in the manual?

Page 1 Model: BZCAP250 25F Hybrid Super Cap (carbon and electronic capacitor) With Blue Digital DC Voltage and Amperage Display, Capacitance ...……... 25,000,000 micro farad (25 Farad) Working Voltage ...…….….. 16DC Surge Voltage ...……… 18DC E.S.R. (Equivalent Series Resistance)------ 0.0015 ohm @120hz/ 25°C Capacitance Tolerance------------------------ ±...
Page 2 You must first attach the mounting tabs to the capacitor before mounting it. Use the supplied hardware shown in the picture to the right. Notice the small mounting screw hole in the capacitor chassis. CHARGING THE CAPACITOR AND WIRING: The capacitor must be charged before connecting the Power and Ground cables to the capacitor.
Page 3 To Charge the capacitor: 1. Make Capacitor positive terminal connections with amplifier and tighten the bolt. Do not over-tighten the bolts! Caution: Stripped terminals are not covered under the capacitor’s warranty. 2. Connect the ground cable with battery, amplifier, then refer to the attached drawing.
Page 4 Multiple Capacitor Wiring Diagram: LIMITED WARRANTY One Year Warranty from the date of purchase. WARNING!! THIS POWER CAPACITOR MAY EXPLODE AND CAUSE SERIOUS INJURY IF ABUSED OR CONNECTED IMPROPERLY. PLEASE REFER TO THE INSTRUCTIONS CONTAINED IN THIS MANUAL CORRECT MOUNTING, CHARGING/DISCHARGING WIRING CONNECTION FOR THIS CAPAPCITOR PRIOR TO INSTALLATION.
