Blitz BZCAPT30 User Manual

3 farad triangle hybrid super capacitor with red digital voltage display, blue flash led, blue led ring

SPECIFICATIONS

Model: BZCAP30

3 Farad TRIANGLE

With Red Digital Voltage Display, Blue Flash LED, Blue Led Ring

Capacitance .............................................3,000,000 micro farad

Working Voltage ........................................... 21DC

Surge Voltage ................................................ 24DC

E.S.R. (Equivalent Series Resistance)------ 0.0015 ohm @120hz/ 25°C

Capacitance Tolerance------------------------ ± 10%

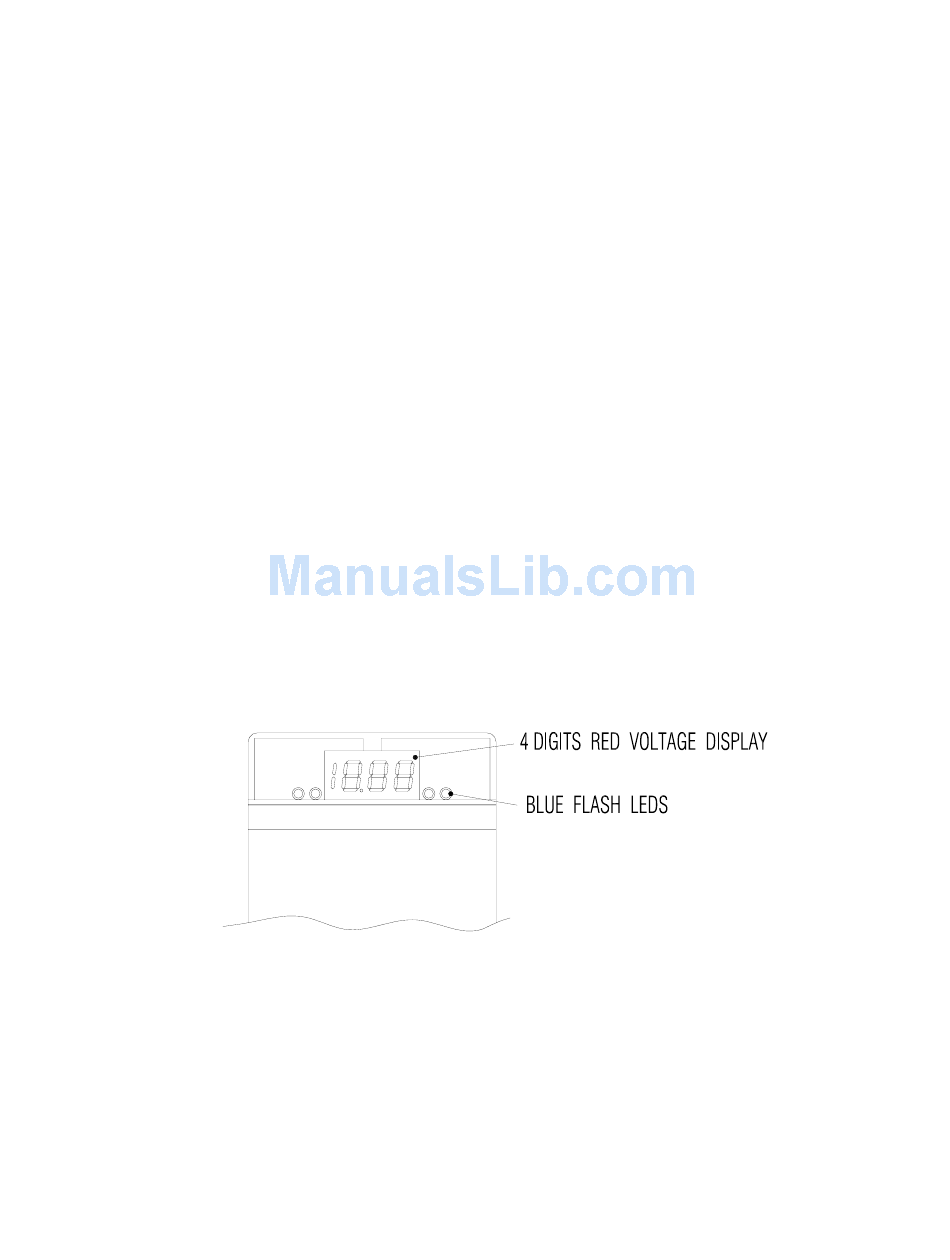

a) 4 digits hi-end red light display DC voltage meter that can measure 0.1 DCV range.

b) Reverse pole connecting PCB buzz warning function. If the capacitor is connected

incorrectly by reversing the positive and negative wires during the installation

process the PCB will issue a 45 second noise to warn you.

c) Hi-end platinum plated 100% brass solid parts and chrome plated metal cover

d) Over voltage limit and low battery voltage limit warning. When the system voltage

peeks over 17.5 DCV or LESS than 10 DCV. The buzzer on the PCB will issue an

audible noise warning.

e) Multiple small capacitance capacitors linked to provide the lowest inner E.S.R. and

largest moment discharge power.

Hybrid Super Capacitor

Table of Contents

Do you have a question about the BZCAPT30 and is the answer not in the manual?

Page 1 SPECIFICATIONS Model: BZCAP30 3 Farad TRIANGLE With Red Digital Voltage Display, Blue Flash LED, Blue Led Ring Capacitance ...……...3,000,000 micro farad Working Voltage ...…….….. 21DC Surge Voltage ...……… 24DC E.S.R. (Equivalent Series Resistance)------ 0.0015 ohm @120hz/ 25°C Capacitance Tolerance------------------------ ± 10% DETAILED FEATURES: a) 4 digits hi-end red light display DC voltage meter that can measure 0.1 DCV range.
Page 2 INSTALLATION AND MOUNTING: You must first attach the mounting tabs to the capacitor before mounting it. Use the supplied hardware shown in the picture to the right. Notice the small mounting screw hole in the capacitor chassis. CHARGING THE CAPACITOR AND WIRING: The capacitor must be charged before connecting the Power and Ground cables to the capacitor.
Page 3 C H AR G IN G B U LB To Charge the capacitor: 1. Make Capacitor positive terminal connections with amplifier and tighten the bolt. Do not over-tighten the bolts! Caution: Stripped terminals are not covered under the capacitor’s warranty. 2.
Page 4 D IS C H AR G IN G B U LB To Discharge the capacitor: With battery power disconnected, place the light bulb or resistor across the capacitor’s positive and negative terminals until light goes out or for three minutes if using a resistor. Multiple Capacitor Wiring Diagram: LIMITED WARRANTY One Year...
