Blitz BZCAPT20 User Manual

2 farad powerful triangle capacitor

SPECIFICATIONS

MODEL: BZCAPT20

2 FARAD POWERFUL TRIANGLE CAPACITOR.

Capacitance------------------------------------ 2,000,000 micro farad (2 farad)

Working Voltage------------------------------ 21 DC

Surge Voltage---------------------------------- 24 DC

E.S.R. (Equivalent Series Resistance)------ 0.0015 ohm @120hz/ 25°C

Capacitance Tolerance------------------------ ± 10%

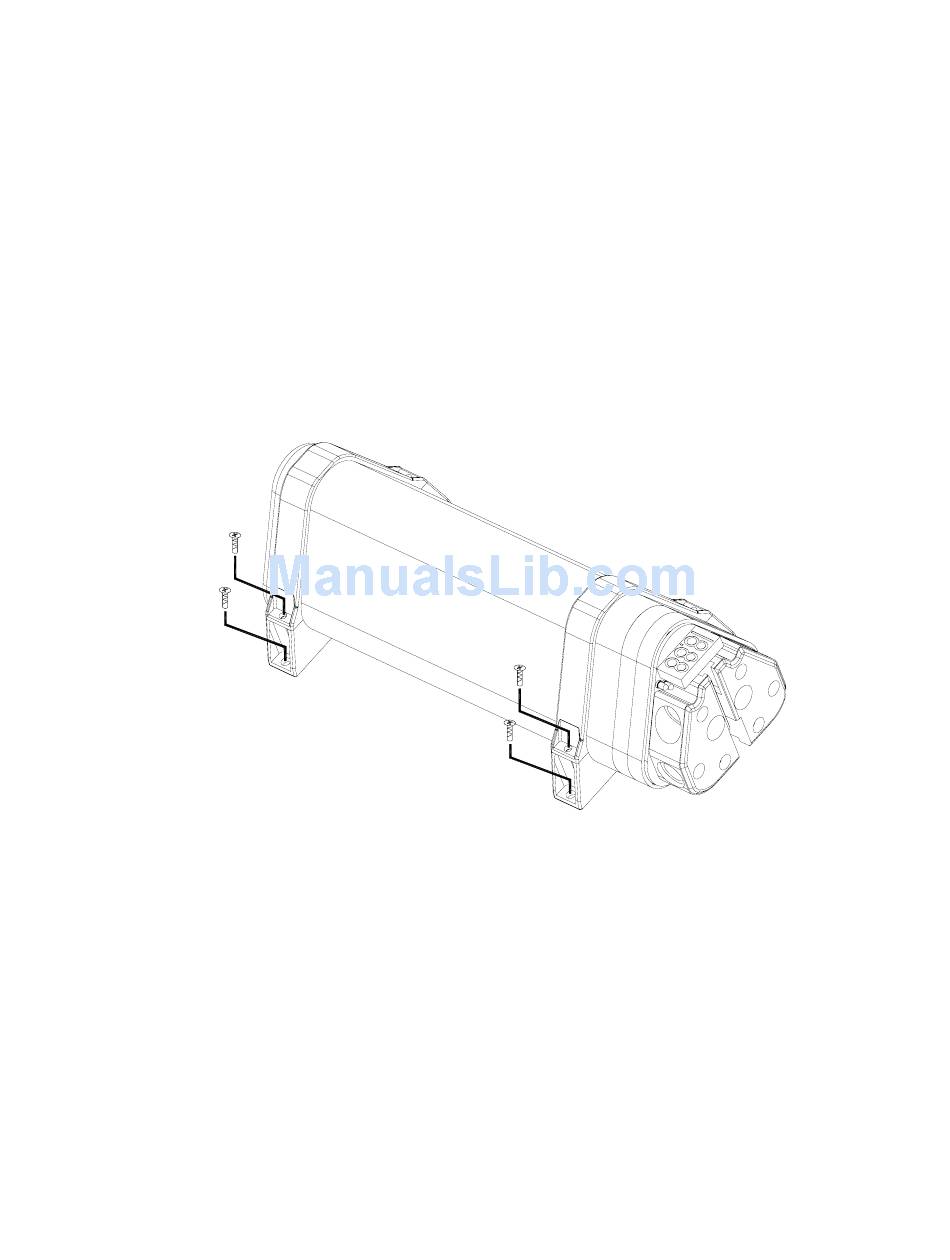

You must first attach the mounting tabs to the Stiffening Capacitor before

mounting it. Use the supplied hardware shown in the picture to the right. Notice

the small mounting screw hole in the capacitor chassis.

Detail function:

a) 4-digit hi-end red light display DC voltage meter that can measure 0.01 DCV

range. And PCB working status Flash blue LEDS (4pcs).

b) Electronic Polarity Protection Circuit. If the capacitor is connected incorrectly

by reversing the positive and negative wires during the installation process, the

PCB will issue a 45 seconds noise to warn you.

c) Over-voltage Protection Circuit. When the install system voltage over 17.5

DCV or LESS 10 DCV limit, the buzz on the PCB will issue an audible noise

d) Lowest E. S. R. 24 DCV foil with maximum moment discharge power in

lowest E. S. R..

Table of Contents

Do you have a question about the BZCAPT20 and is the answer not in the manual?

Page 1 SPECIFICATIONS MODEL: BZCAPT20 2 FARAD POWERFUL TRIANGLE CAPACITOR. Capacitance------------------------------------ 2,000,000 micro farad (2 farad) Working Voltage------------------------------ 21 DC Surge Voltage---------------------------------- 24 DC E.S.R. (Equivalent Series Resistance)------ 0.0015 ohm @120hz/ 25°C Capacitance Tolerance------------------------ ± 10% INSTALLATION AND MOUNTING: You must first attach the mounting tabs to the Stiffening Capacitor before mounting it.
Page 2 CHARGING THE CAPACITOR AND WIRING: The capacitor must be charged before connecting the Power and Ground cables to the capacitor. Failure to charge the capacitor will result in a large spark generated from the rapid inflow of current. C H AR G IN G B U LB B ATTER Y To Charge the capacitor:...
Page 3 2. Connect the ground cable with battery, amplifier, then refer to the attached drawing. 3. Place the supplied charging bulb or resistor between the positive terminal of the capacitor and the battery’s positive terminal. Do this for 30 seconds or until the charging bulb goes out. Caution: The charging bulb will get hot! 4.
Page 4 D IS C H AR G IN G B U LB To Discharge the capacitor: With battery power disconnected, place the light bulb or resistor across the capacitor’s positive and negative terminals until light goes out or for three minutes if using a resistor. LIMITED WARRANTY One Year Warranty from the date of purchase.
