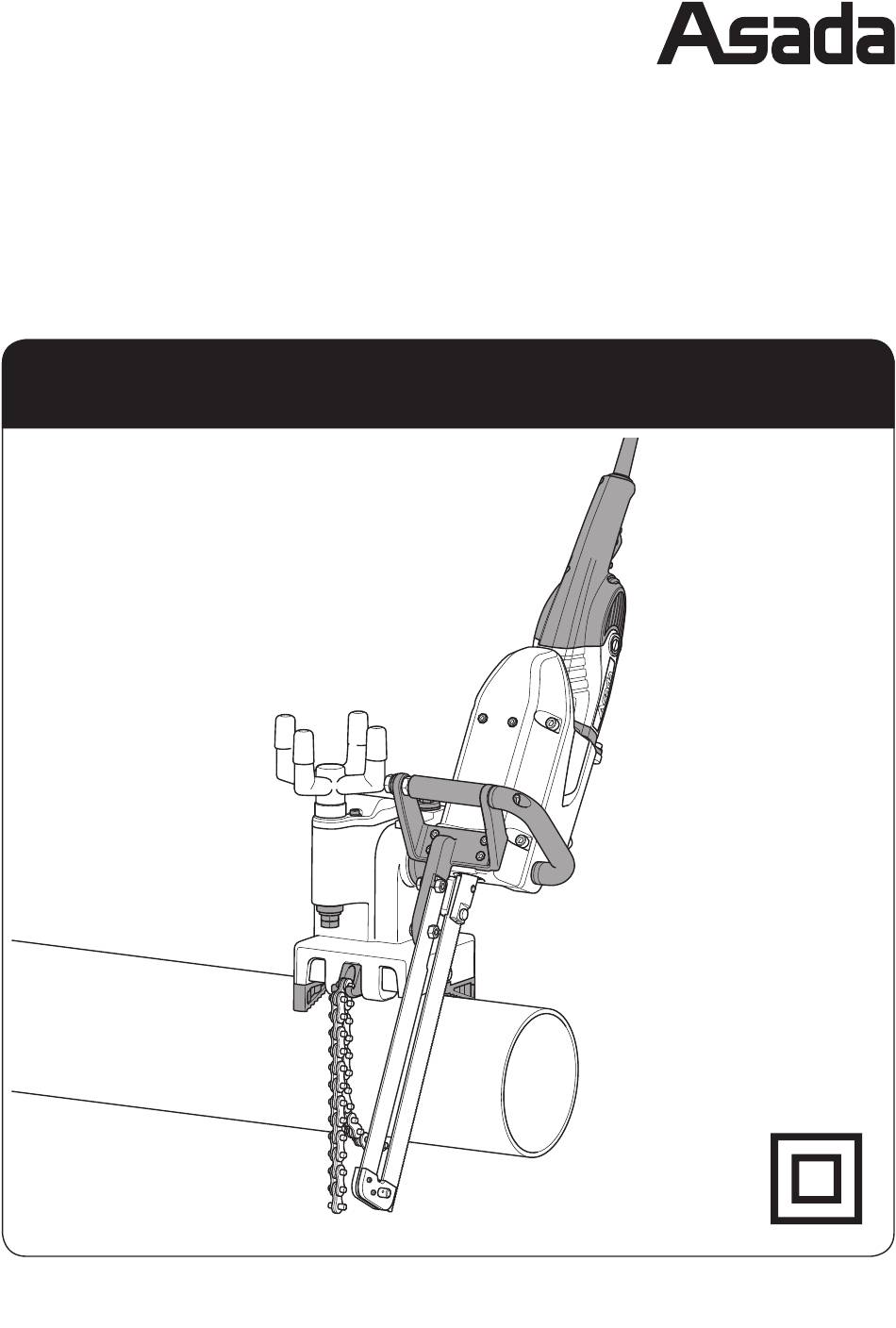

- Page 1 Large Diameter Existing Pipe Cutting Machine PIPE SAW 380SP INSTRUCTION MANUAL Double insulated 【Read through this manual carefully before using the machine.】...
-
Page 2: Table Of Contents
PIPE SAW 380SP SAFETY PRECAUTIONS Thank you for choosing the PIPE SAW 380SP. ● This manual should be handed over to the end user. ● The content of this manual must be thoroughly read and understood securely before operation. ● Please save this manual for immediate reference when required. -
Page 3: Safety Instructions
PIPE SAW 380SP SAFETY INSTRUCTIONS ● To prevent accidents such as fire, electrical shock and injury, always follow the "SAFETY INSTRUCTIONS" described below. ● Before using the machine, read all "SAFETY INSTRUCTIONS" to use it correctly according to the instructions. - Page 4 PIPE SAW 380SP WARNING ◆ Switch off and unplug the machine in the following cases. ・ When not in use or when servicing, cleaning, checking or replacing parts. ・ When replacing accessories such as saw blade. ・ When hazard is predictable (including a power failure).
- Page 5 PIPE SAW 380SP WARNING ◆ Stay alert. Watch what you are doing and use common sense while working. Carelessness will lead to accident or injury. Do not operate the machine when you cannot concentrate on your work, e.g. when you are tired or while under the influence of alcohol, medication or drugs.
-
Page 6: Operating Instructions
PIPE SAW 380SP OPERATING INSTRUCTIONS ● In addition to the general instruction given above, follow the precautions given below before operating the PIPE SAW 380SP. DANGER ◆ Do not cut a pipe which contains live gas or residual gas. Sparks or cutting heat from the motor can cause ignition or explosion. - Page 7 ◆ Do not cut the work piece which requires more than capacity. If cut the work piece which requires more than capacity, the saw blade may be broken. ◆ Use the Asada genuine saw blade. If use the other saw blade, there may be a possibility to cause accidents unexpectedly.
-
Page 8: Components Of The Machine
PIPE SAW 380SP COMPONENTS OF THE MACHINE Name of Parts Motor Grip Trigger Switch Speed controller Main Body Carbon Cap Main Body Grip Motor Operating Handle Side Grip Vise Power Cord (plug) Saw Guide ② Vise top surface warning label ③... -
Page 9: Specifications
PIPE SAW 380SP Specifications Description PIPE SAW 380SP HSS PIPE SAW 380SP GRIT Code No. PS386SP PS387SP Steel pipe 1/2"〜14"（thickness：9㎜ or less） Cutting Capacity Stainless Steel pipe 1/2"〜12"（thickness：9㎜ or less） Motor Universal Motor：Single-Phase 50/60Hz Wattage 1500W Stroke 57㎜ No-load Stroke/Min 120〜360min... -
Page 10: Optional Accessories
PIPE SAW 380SP Optional Accessories Saw blades Guide plate complete for each size Cutting Oil (Refer to the table below.) (Refer to the table below.) (Threading oil white) (ST014) Cutting Name Size Code No. pcs/set Remarks Capacity 320×8T 〜 6"... -
Page 11: Preparations
PIPE SAW 380SP PREPARATIONS Carrying the Machine ● Carry the machine putting in the storage box. CAUTION ◆ The machine is heave(Vise 8kg, Main Body 11kg), be sure to carry it by two people. When lifting it, bend your knees to avoid a load on your waist. -
Page 12: Operation
PIPE SAW 380SP OPERATION ● Before starting operation, always read the instructions in "SAFETY INSTRUCTIONS" and "OPERATING INSTRUCTIONS" (pages 2 to 6). WARNING ◆ The extension cord used should be without damage. A failure to do so may result in electrical shock or short, causing a spark. - Page 13 PIPE SAW 380SP ① Mark the cutting position on the pipe． ② Completely remove foreign matters and stains from the pipe and vise jaw. If the vise is fixed with the foreign matters remained, it may loosen during cutting. Cutting position Or, the pipe cannot be cut straight.
-
Page 14: How To Set The Main Body
PIPE SAW 380SP How to set the main body ① Disconnect the power plug． Rotary bush Rotary shaft ② Check that there is no foreign matter in the rotary Insert shaft of the main body and the rotary bush of the vise. -
Page 15: How To Set The Guide Plate
PIPE SAW 380SP How to set the guide plate ① Select the guide plate conforming to the size of U－notch saw blade． ② Set U − notch of "guide plate" to the "guide plate fixing bolt"（2spots）with the back of the Guide plate saw blade passes through the gap of "guide."... -
Page 16: Cutting
PIPE SAW 380SP CUTTING CAUTION ◆ When cutting the mortar lining Trigger Switch casting pipe, be sure to wear the face mask to prevent dust. ◆ Do not operate the machine for long time at low saw blade speed. The motor will be forced, causing burnout. - Page 17 PIPE SAW 380SP ⑤ Rotate the operating handle counterclockwise and cut the pipe slowly. Rotate the handle with the force that does not decrease the stroke speed． Operating handle Rotate slowly When the motor gets a heavy load during the operation, an over-load protector works and the motor automatically stops.
-
Page 18: Cutting The Buried Pipe
PIPE SAW 380SP Cutting the buried pipe ① When cutting the buried pipe, dig down to α secure working space. Minimum working Machine Pipe size Size A Size B Size C space W working angle 150A 210㎜ 215㎜ 425㎜ 200㎜... -
Page 19: Cutting The Vertical Pipe
WARNING ◆ Vise should be installed by two people. PIPE SAW 380SP is a heavy item (Vise: 8kg, Unit: 11kg). Installing by one parson may cause a serious injury by dropping the unit. ◆ Be sure to set the cut-off side to the top. -
Page 20: Maintenance & Inspection
PIPE SAW 380SP MAINTENANCE & INSPECTION WARNING ◆ Before starting inspection or maintenance, always turn the switch off and disconnect the attachment plug from the receptacle. The machine will start running suddenly, it will lead to accident or injury. ● Check, clean and repair / replace the following areas regularly. - Page 21 PIPE SAW 380SP Maintenance & Inspection Action Check the Saw Guide If chips, mud, sand, water, etc. remain sticking to the Saw Guide, the carefully that there is no Saw Guide will rust and lead to a failure. Always clean the Saw Guide chips, mud, sand, water before storing the machine.
-
Page 22: Troubleshooting
PIPE SAW 380SP TROUBLESHOOTING ● Before asking for repairs, check following troubleshooting. If the problem cannot be solved, contact with the shop you purchased or our sales office. ● Troubles due to misuse or improper applications are not covered by warranty. - Page 23 PIPE SAW 380SP...
- Page 24 ● Customer Memo Please fill in for your record in the future. The information is helpful for inquiry and ordering parts. Products Number： Date Purchased： Store Purchased the Unit： Ver.01 Code No. IM0442 LE...
