Control Panel Description

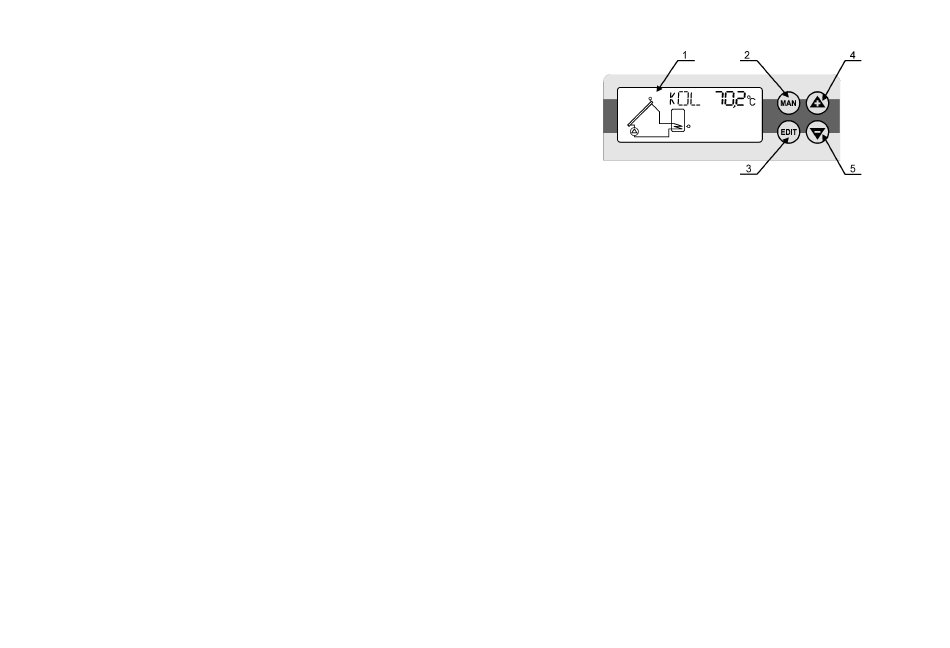

Fig. 1 Controller button layout
1. Special-purpose LCD display – described in the following section.
2. MAN button
• press to read solar pump delivery rate and alarm information,
• after setting the code to105, press to enter manual mode.
3. EDIT button
• press to switch between parameter editing mode and viewing mode,
• after holding the button down for 3 s in the collector temperature reading
window, press to switch on/off holiday mode – see section on Holiday Mode –
Heat Discharge from the Tank, p. 14
4. Plus / up arrow button
• press to scroll up the parameter list,
• in editing mode – press to increase parameter value.
5. Minus / down arrow button
• press to scroll down the parameter list ,
• in editing mode – press to reduce parameter value.
