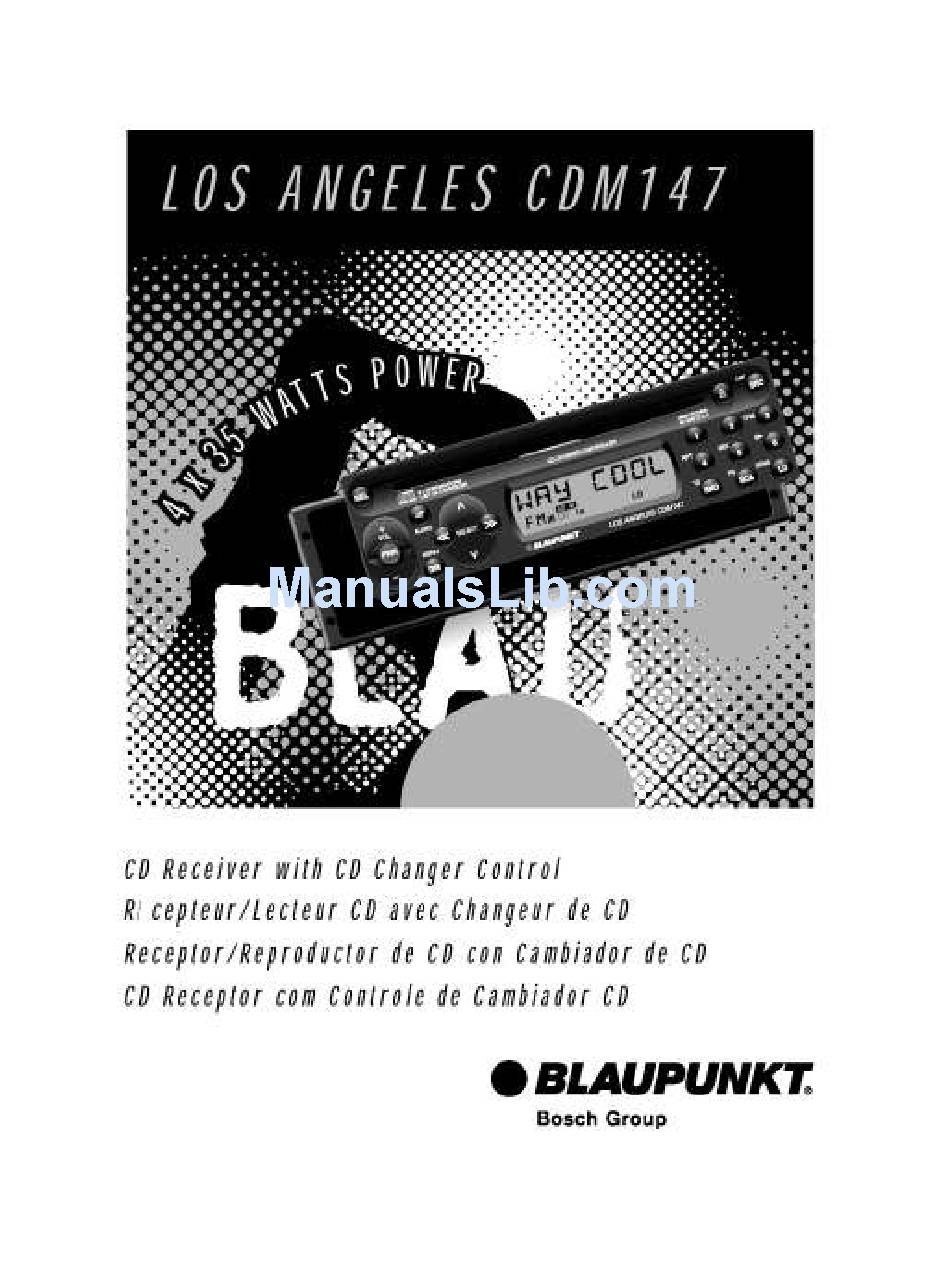

Blaupunkt Los Angeles CDM147 Owner's Record
Blaupunkt Los Angeles CDM147 Owner's Record

Blaupunkt Los Angeles CDM147 Owner's Record

4x35 watts power cd receiver with cd changer control

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Los Angeles CDM147 and is the answer not in the manual?

Questions and answers

Summary of Contents for Blaupunkt Los Angeles CDM147

  • Page 2: Owner's Record

    The model and warranty numbers are located on the top of the unit. Record the warranty (serial) number in the space provided below. Refer to these numbers whenever you call upon your Blaupunkt dealer regarding this product. Warranty Number _____________...
  • Page 3: Table Of Contents

    Table of Contents English FCC Warning ... 2 Owner’s Record ... 2 Features ... 4 Precautions ... 4 Detachable Face ... 5 Electrical Connections and Installation ... 6 Installation ... 8 Maintenance ... 10 Specifications ... 11 Location of Controls ... 12 Instructions—General Operation ...
  • Page 4: Detachable Face

    ENGLISH Features Congratulations on your purchase of this Blaupunkt CD Receiver. Its Codem III-US FM/AM Tuner, 3-Beam Laser/Anti-Vibration & Shock mechanism and CD Changer Controls provide the ultimate in sound reproduction. Its high-power amplifier and 4-Channel RCA preamp output provide you with tremendous system configuration flexibility.
  • Page 5: Detachable Face

    Detachable Face Detaching & Attaching the Face: The face of this unit can be detached and taken with you to prevent it from being stolen. Detaching the Face: Before detaching the face, be sure to press the PWR Button first. Then press the REL (Release) Button and detach the face by gently pulling it off as illustrated.
  • Page 6: Electrical Connections And Installation

    • We recommend making and testing all electrical connections before installing the unit. Connect the leads (wires) according to instructions and diagram below. IF YOU ARE INSTALLING A COMPATIBLE BLAUPUNKT CD CHANGER • For speaker connection, use the speaker wire harness section that comes with the receiver.
  • Page 7 • You can connect the 2 RCA preamp outputs to multiple external amplifiers and power multiple speakers or speaker systems through the amplifiers. (Blaupunkt amplifiers and speakers available separately). To add front preamp output, purchase Blaupunkt part 8634494218, which is included in the CDC-A05 and CDC-A071 changers harnesses (see page 11).
  • Page 8: Installation

    • The illustration below shows a typical installation, however, you may need to adjust the installation, depending on the unit. If you have questions or need additional installation hardware, consult your Blaupunkt dealer. • Make sure the unit is firmly anchored (preferably at both front and back) and does not vibrate.
  • Page 9 You may have difficulty mounting this unit in some Japanese cars that have ISO mounting features (side-bracket mounting systems). In this case, consult your Blaupunkt dealer. 1 Run a blade along the slits on the back of the front trim ring and separate it from the unit.
  • Page 10: Maintenance

    Maintenance Removing the Unit Use the Release Keys as shown below. Keep them in a safe place in case you need them in the future. Fuse Replacement When replacing the fuse, be sure to use one with the correct amperage, which will be stated on the fuse case.
  • Page 11: Specifications

    Specifications Audio Power Specifications Power Output and Total Harmonic Distortion: 13.5 watts per channel minimum continuous average output into 4 ohms, 4 channels driven, from 30-15,000 Hz with no more than 1% total harmonic distortion. Other Specifications Tuner Tuning Range: Intermediate Frequency: FM Mono Sensitivity: Seek lo sensitivity:...
  • Page 12: Location Of Controls

    Location of Controls 12 10 11 13 1. REL (Release) Button 2. Disc Insertion Slot 3. Eject 4. SRC (Source)/LIST Button Source Change Disc Name List Access 5. PWR (Power) Button 6. Volume + 7. Volume – 8. Mute/Audio Button Mute, Bass, Treble, Balance/Fade Access Name Storing/Deletion/Exit Minute: 00...
  • Page 13: Instructions - General Operation

    Instructions — General Operation See Traffic Safety & Precautions on page 4. “Press” means a momentary press of less than 1/2 second. All presses requiring more than 1/2 second are followed by beep. (Beep for all button presses available through Direct Software Control Menu.) “Time Out”...
  • Page 14: Audio Operation

    Audio Operation Volume Control Buttons (+/–) Press + and - to increase/decrease volume from 0 to 63, in increments of 1.25 dB/step. Volume control is accessible from all modes except Name Access and Edit modes. Mute & Cellular Mute Press Mute to temporarily reduce volume to level set under Menu. “MUTE” appears. (Same mute level is also activated by cellular mute (if connected).
  • Page 15 Seek Tuning Press /\ or V to seek next receivable frequency. Tuning stops at frequency that fulfills sensitivity requirements predetermined by sensitivity set through SENS/LD button. Press of /\ or V buttons for more than 1/2 second seeks next receivable frequency after button is released. Tuning Sensitivity (SENS) Press SENS/LD for more that 2 seconds to switch between lo and dx search sensitivity.
  • Page 16 CD Playback When a CD is already in unit, press SRC as needed to activate “CD PLAY”. CD Eject Press eject. Disc ejects. If disc is not removed within about 5 seconds (unless ignition off) or if eject is pressed again within this time, disc is automatically reloaded, although unit stays with current audio source.
  • Page 17: Auxiliary Input Jack

    Adjust volume, bass, and treble settings through the receiver. Changer Control Your radio is ready to control a Blaupunkt CD Changer with the DISC Management System, such as the CDC-A05 or CDC-A071. See your Blaupunkt dealer for more information. Once changer playback adjustment is complete, CD Changer display sequence follows.
  • Page 18 previously active. A track will not be played a second time until all tracks have been played. Once all tracks have been played, next disc is selected. Disc Mix Press MIX as needed until MIX II appears. MIXII behaves per software in CD changer. Press of /\ / V during MIXII mode returns unit to regular play.
  • Page 19: Direct Software Control Menu

    When name reappears “+” programming symbol will no longer appear. Direct Software Control Menu Blaupunkt’s exclusive Direct Software Control Menu has many unique features that allow you to customize the unit to your needs and preferences. All Menu options (except timer and naming options) are available regardless of which source is in use: AM, FM, CD, CD Changer, Auxiliary.
  • Page 20 After eighth character (the farthest right character) is completed, first (left-most) character of next group of eight characters begins to flash. After fifth group of eight characters, pressing >> will access first group again. Press Mute to store turn-on message and return to Menu. Clock Adjustment (“CLOCKSET”) Pressing <<...
  • Page 21 up to 12 dB boost in bass (centered at 60 Hz) and up to a 4 dB boost in treble (centered at 8 KHz). To set the loudness level for each source, use << and >>. Radio Station Naming (“STN NAME”) Available only while radio is active source.
  • Page 22 Display Priority & Disc Names: (See Display Options on page 13.) Changing a Disc Name Repeat steps 1 to 10 in Disc Naming, changing only those characters that you wish to change. Erasing One Disc Name Access Disc Access mode under Menu (See Disc Naming). Choose disc that has name to be deleted.
  • Page 23: Troubleshooting Guide

    (computer) disc. “NO DISC” No magazine or disc in changer If the above mentioned solutions do not help to improve the situation, consult your nearest Blaupunkt dealer or in the United States call 1-800-266-2528. Cause/Solution • Adjust the volume with the + button.
  • Page 24 German Headquarters: Blaupunkt-Werke GmbH Postfach 77 77 77 D-31132 Hildesheim Germany Robert Bosch Corporation Sales Group — Blaupunkt Division 2800 South 25th Avenue, Broadview, Illinois 60153 1-800-950-BLAU Robert Bosch, SA., DE, C. V. Dr. Lucio 270 Cols. Doctores, Mexico 06720...
