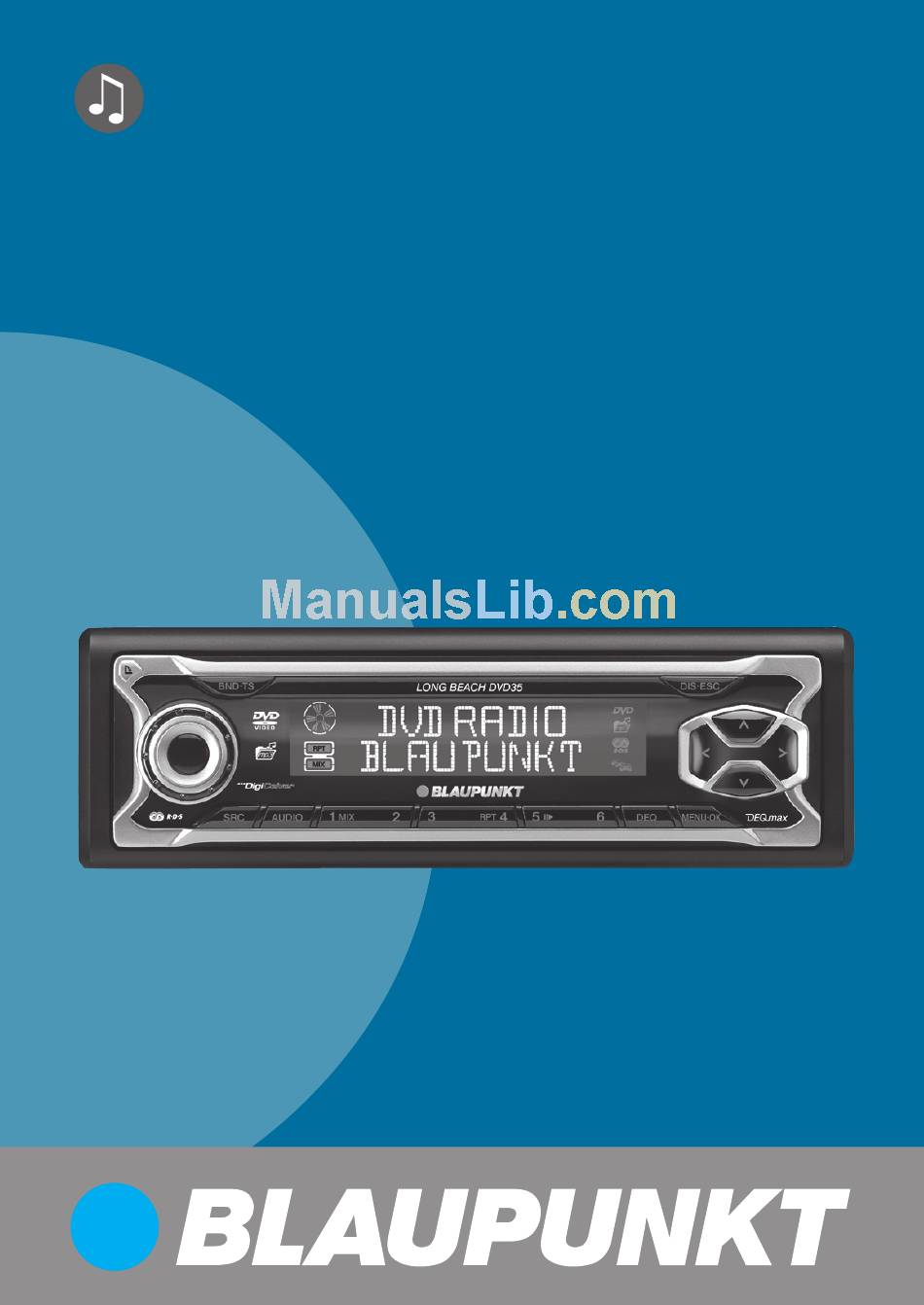

- Page 1 Radio / DVD / CD / MP3 / WMA Long Beach DVD35 7 645 680 310 Operating instructions http://www.blaupunkt.com...
- Page 2 RC 14 H...
- Page 3 Button to switch the device on/ off and operate the volume mute feature. OFF button on the remote con- trol for switching the device off. button to open the flip-re- lease control panel. Volume control. BND•TS button. Short press: Selects the FM and AM memory banks.
- Page 4 CONTROLS DISPLAY button to display playing time information on the external display. ANGLE button to select a cam- era perspective (dependent upon the DVD). TV MODE button to switch the TV standard of the DVD player to adjust to the external display. ZOOM button to zoom the im- age area in/out.
-
Page 5: Table Of Contents
Notes and accessories ... 8 Road safety ... 8 Installation ... 8 Remote control RC 14 H ... 8 Installations (not part of the scope of delivery) .. 9 Activating/deactivating demo mode .. 9 Time-out (time window) ... 9 Detachable control panel ... 10 Theft protection ... - Page 6 CONTENTS DVD menu ... 28 Displaying the DVD menu ... 28 Selecting menu entries ... 28 Exiting the DVD menu ... 28 Displaying the title menu ... 28 Playback of DVD audio ... 29 Repeated playback of a defined section of a title ... 29 Programming your favourite track with the remote control ...
- Page 7 CD-changer mode ... 49 Switching to CD-changer mode ... 49 Selecting CDs ... 49 Selecting tracks ... 49 Fast searching (audible) ... 50 Changing the display ... 50 Repeating individual tracks or whole CDs (REPEAT) ... 50 Random track play (MIX) ... 51 Scanning all tracks on all CDs (SCAN) ...
-
Page 8: Notes And Accessories
NOTES AND ACCESSORIES Notes and accessories Thank you for choosing a Blaupunkt product. We hope you enjoy using this new piece of equipment. Please read these operating instruc- tions before using the equipment for the first time. The Blaupunkt editors are constantly... -
Page 9: Installations (Not Part Of The Scope Of Delivery)
DVD movies and VCDs. You can obtain further information about suitable monitors from your Blaupunkt dealer. Amplifiers ● Any Blaupunkt amplifier can be used. CD changers ● You can connect the following Blaupunkt CD changers: CDC A 03, CDC A 08 and IDC A 09. -
Page 10: Detachable Control Panel
CONTROL PANEL Detachable control panel Theft protection The device is equipped with a detach- able control panel (flip-release panel) as a way of protecting your equipment against theft. The device is worthless to a thief without this control panel. Protect your device against theft by taking the control panel with you when- ever you leave your vehicle. -
Page 11: Attaching The Control Panel
CONTROL PANEL Attaching the control panel ➮ Hold the control panel at approxi- mately right angles to the device. ➮ Slide the control panel into the de- vice’s guides that are positioned on the left and right at the lower edge of the housing. -
Page 12: Adjusting The Volume
SWITCHING ON/OFF Switching the device off with the remote control The device can also be switched off using the supplied RC 14 H remote control. ➮ Press the OFF button 1 on the remote control. The device switches off. ADJUSTING THE VOLUME Adjusting the volume Note: The internal amplifier can be... -
Page 13: Quickly Reducing The Volume (Mute)
➮ Press the MENU•OK button 7 to display the volume menu. “ON VOLUME” and the currently set value are displayed or “LAST VOL- UME” is displayed. ➮ Adjust the power-on volume using buttons 6. To help you adjust the setting more easily, the device will increase or de- crease the volume as you make your changes. -
Page 14: Press The Or Button
You will need a cable for this with the following Blaupunkt number: 7 607 001 503. You can find out from your Blaupunkt dealer which navigation systems can be used with your car sound system. The volume with which telephone calls or navigation announcements are broadcast can be adjusted. -
Page 15: Automatic Sound
ADJUSTING THE VOLUME Automatic sound This feature automatically adjusts the volume of the car sound system to suit the speed at which the vehicle is trav- elling. In order for this to work, your car sound system must be connected as described in the installation instruc- tions. -
Page 16: Switching To Radio Mode
RADIO MODE Switching to radio mode To start the radio mode, ➮ press the BND•TS button 4 ➮ press the SRC button ; on the device or the SOURCE button ; on the remote control repeatedly until “TUNER” appears on the dis- play. -
Page 17: Setting The Sensitivity Of Station Seek Tuning
Setting the sensitivity of station seek tuning You can choose whether the radio should only tune into stations provid- ing good reception or whether it can also tune into those with a weak re- ception. ➮ Press the MENU•OK button 7. “TUNER MENU”... -
Page 18: Listening To Stored Stations
RADIO MODE Listening to stored stations ➮ Select the memory bank or wave- band. ➮ Press the station button 1 - 6 9 of the desired station. Scanning receivable stations (SCAN) You can use the scan function to play all the receivable stations briefly. You can set the scanning time from 5 to 30 seconds in the menu in increments of five seconds. - Page 19 PTY-EON If you specify the programme type and start seek tuning, the radio will switch from the current station to a station of the selected programme type. Notes: If the tuner does not find a station ● that corresponds to the selected programme type, you will hear a beep and “NO PTY”...
-
Page 20: Optimising Radio Reception
RADIO MODE Optimising radio reception Treble reduction feature during interference (HICUT) The HICUT function improves recep- tion during poor radio reception (only FM). If reception interferences are present, the interference level is auto- matically reduced. Switching HICUT on/off ➮ Press the MENU•OK button 7. “TUNER MENU”... -
Page 21: Configuring The Display
RADIO MODE Configuring the display In radio mode, you can choose be- tween various display modes. 1. “NORMAL MODE” First line: Memory bank and sta- tion name (if it can be received) Second line: Frequency of the se- lected station. 2. -
Page 22: License
DVD OPERATION Playing a DVD with a different region code is not possible. This device can be used to play the following data carriers/data formats: DVD video and DVD audio. ● DVD-MP3/WMA. Video CD (VCD). ● MP3/WMA CDs, see the chapter ●... -
Page 23: Starting Playback
Starting playback After the desired DVD/VCD is loaded, either the DVD menu is displayed or the playback starts. This action is de- pendent upon the inserted DVD. ➮ button A or move Press the the selection mark to the menu item that starts the movie, and press the ENTER button >... -
Page 24: Slow Motion
DVD OPERATION Stopping fast forward/reverse search To stop fast forward, ➮ button A on the press the remote control. The DVD is played back at normal speed. Slow motion The DVD can be played forward or reverse at reduced speed. ➮... -
Page 25: Skipping A Chapter
Skipping a chapter A title of the DVD can be divided into several smaller chapters. To jump to the next or another chapter, ➮ button P once or press the several times on the remote con- trol. The playback jumps to the beginning of the next or the corresponding follow- ing chapter. -
Page 26: Resuming Playback At The Start Of The First Title Of A Dvd
DVD OPERATION To exit the GOTO menu and continue with full playback, ➮ press the GOTO button B on the remote control. Selecting the playing time You can directly select a specific posi- tion on the DVD by specifying the play- ing time of this position either in the chapter or in the title. -
Page 27: Selecting The Playback Language
Selecting the playback language To select the playback language, ➮ press the AUDIO button M once or several times on the remote control. The display information is shown. The number of the language, the number of available playback languages and the current language are shown. -
Page 28: Dvd Menu
DVD OPERATION DVD menu The DVD menu is offered by the in- serted DVD. If you insert a DVD and playback starts, the DVD menu auto- matically appears on the screen. Note: The selection options offered by the DVD menu are dependent upon the respective DVD. -
Page 29: Playback Of Dvd Audio
Playback of DVD audio This device can also be used to play DVD audio. The functions described above can be used provided that the DVD supports them. The following functions are particularly useful for DVD audio. Repeated playback of a defined section of a title You can use the remote control to de- fine a section of a title and repeat it... -
Page 30: Dvd Setup
DVD OPERATION Stopping the playlist To end a running playlist, ➮ Press the PROGRAM button K on the remote control. The programming mode is displayed. The selection mark is positioned on “STOP”. To end the playback of the playlist, ➮ press the ENTER button >. -
Page 31: General Setup - General Settings
➮ Confirm your entries with the EN- TER button > on the remote control. If you want to perform additional set- tings in other sections of the menu: ➮ button 6 of the re- Press the mote control or the the device to return to the selec- tion of the menu sections. -
Page 32: Audio Setup
DVD OPERATION Audio Setup The Audio Setup allows you to control the SPDIF output of the device, set the PCM channel and set the sampling rate of the LPCM output. In addition, you can control the Dynamic Range Con- trol (DRC) and the HDCD filter. SPDIF setting For the SPDIF output of the device, you can select whether an SPDIF-RAW... -
Page 33: Preferences - Preferred Settings
Brightness You can adjust the brightness in incre- ments from -20 to +20. The setting for brightness is located in “Quality” under “Brightness”. Contrast You can adjust the contrast in incre- ments from -16 to +16. The setting for contrast is located in “Quality”... - Page 34 DVD OPERATION Note: The television standard can also be switched using the remote con- trol. Press the TV-Mode button E repeatedly until the desired televi- sion standard is displayed. Switching playback control on/off If the Playback Control (PBC) function is switched off, the titles and chapters of a VCD/SVCD are played in ascend- ing order.
-
Page 35: Setting Password Protection
The following options can be selected: 1 KID SAF: Approved for children 2 G: Approved for children 3 PG: Accompanying adult during play- back is suggested. 4 PG 13: Accompanying adult is sug- gested, not suitable for children under the age of 13. 5 PG-R: Only for adolescents accom- panied by an adult. -
Page 36: Exiting The Setup Menu
DVD OPERATION Changing the password You can change the preset password and define your own. The password must have six digits. To change the password, you must first enter the old password. If you have not yet assigned a password, use the preset password 000000. -
Page 37: Direct Track Selection With The Remote Control
CDs at speeds greater than 16x. To ensure proper functioning, use only CDs with the Compact-Disc logo. Copy-protected CDs can cause play- back problems. Blaupunkt cannot guar- antee the proper functioning of copy- protected CDs! Besides being able to play audio CDs on this device, you can also play CDs containing MP3 music files and DVDs. -
Page 38: Fast Track Selection
CD MODE Track selection ➮ Enter the number of the desired track directly using the numeric buttons 0 to 9 S of the remote control. After entering the number, the desired track begins to play. ➮ Press the GOTO button B re- peatedly until the external display shows “SELECT TRACK”. -
Page 39: Random Track Play (Mix)
To end the searching, ➮ button A on the re- press the mote control. Random track play (MIX) ➮ Press the 1 MIX button 9. “MIX CD ON” appears briefly on the display and the MIX symbol is dis- played. The next randomly selected track will then be played. -
Page 40: Repeated Playback Of A Defined Section Of A Title
CD MODE Repeated playback of a defined section of a title You can use the remote control to de- fine a section of a title and repeat it endlessly in a loop. Note: This function is operable only if an external display is connected. -
Page 41: Displaying Cd Text
the playing time of the track ● (Single Elapsed) the remaining playing time of the ● track (Single Remain) the elapsed playing time of the CD ● (Total Elapsed) the remaining playing time of the ● CD (Total Remain). To select one of the different time dis- play options, ➮... -
Page 42: Ejecting A Cd
CD MODE Note: After you have programmed a playlist and exited the menu with “EXIT”, the playlist is not saved. Stopping the playlist To end a running playlist, ➮ Press the PROGRAM button K on the remote control. The programming mode is displayed. The selection mark is positioned on “STOP”. - Page 43 is 150,000, the maximum directory depth is five. T001 T002 T003 T004 T005 T001 T002 T003 T004 T005 T006 You can name each directory using a PC. The device is capable of display- ing the directory name. Name the di- rectories and tracks/files using your CD burner software.
-
Page 44: Switching To Mp3 Mode
MP3/WMA MODE Switching to MP3 mode MP3 mode is activated in the same way as normal CD mode. For further information, please read the section entitled “Switching to CD mode” in the “CD mode” chapter. If you connected an external display, the following information is displayed after the CD is read and the MP3/WMA playback has started:... -
Page 45: Press The Or Button
➮ button 6 Press the repeatedly until the first line of the display shows a D . ➮ button 6. Press the The names of the current and the fol- lowing directory are shown on the dis- play. If you want to select a directory, ➮... -
Page 46: Fast Search
MP3/WMA MODE Selecting a directory To select a directory with the remote control, ➮ button 6 repeatedly press the until the selection mark is posi- tioned on the directory symbol. ➮ Press the ENTER button >. The directory list is shown on the ex- ternal display. -
Page 47: Random Track Play - Mix
Random track play – MIX To play the tracks in the current direc- tory in random order, ➮ briefly press the 1 MIX button 9. “MIX ON” and the MIX symbol appear on the display. Cancelling MIX To cancel MIX, ➮... -
Page 48: Repeated Playback Of A Defined Section Of A Title
MP3/WMA MODE To repeat a track, ➮ press the PLAY MODE button J repeatedly until “REPEAT ONE” is shown on the lowest line of the external display. To repeatedly play all the tracks of a directory, ➮ press the PLAY MODE button J repeatedly until “REPEAT FOLD- ER”... -
Page 49: Displaying Scrolling Texts (Scroll)
MP3/WMA MODE Displaying scrolling texts (scroll) The selected information title, track names or file name and directory name are shown once as scrolling text when the title changes. To display the information again as scrolling text, ➮ briefly press the 5 SCL button 9. Note: The information is displayed as scrolling text if it contains more... -
Page 50: Fast Searching (Audible)
CD-CHANGER MODE Fast searching (audible) To fast search backwards or forwards, ➮ hold one of the pressed on the device or the button 6 of the remote control until the fast searching backwards or forwards starts. Changing the display You can choose from various display options in CD mode: “NORMAL MODE”: ●... -
Page 51: Random Track Play (Mix)
Random track play (MIX) To play the tracks on the current CD in random order, ➮ briefly press the 1 MIX button 9. “MIX CD” appears briefly and MIX lights up on the display. To play the tracks on all inserted CDs in random order, ➮... - Page 52 CD-CHANGER MODE ➮ buttons 6 to select Use the the character that you want. If you want an empty space, simply se- lect the underscore. ➮ button 6 to move Use the from one text input position to an- other. When you have finished making your changes, ➮...
-
Page 53: Clock Time
CLOCK time Displaying the time You can make the clock time appear continuously in the bottom part of the display while any audio source is acti- vated. For further information, please read the “Configuring the display” sec- tions in the relevant chapters. Setting the clock manually To set the clock time manually, ➮... -
Page 54: Sound
CLOCK TIME ➮ button 6 re- Press the peatedly until “OFF CLOCK OFF” or “OFF CLOCK ON” appears on the display. ➮ button 6 to Press the switch between the ON/OFF settings. When you have finished making your changes, ➮ press the MENU•OK button 7 and then the DIS•ESC button 5 to exit the menu. -
Page 55: Setting The Left/Right Volume Distribution (Balance)
SOUND Setting the left/right volume distribution (balance) To adjust the left/right volume distribu- tion (balance), ➮ Press the AUDIO button :. ➮ button 6 repeat- Press the edly until “BALANCE” appears on the display. ➮ button 6 to ad- Press the just the balance (right/left). -
Page 56: Equalizer
EQUALIZER Equalizer The device features a digital equalizer DEQ. This means you have three 5-band equalizers, six sound presets and sev- en vehicle presets at your disposal. You can configure the EQ1 - EQ3 equalizers manually. When doing so you can adjust (boost or reduce) one frequency of an equalizer band as well as the quality factor, i.e. -
Page 57: Selecting Vehicle Presets
Selecting vehicle presets You can select optimised equalizer settings for the following vehicle types: COMPACT ● 4DOOR ● CONVERT ● ● ROADSTER ● MINI ● TRUCK ● The settings for these vehicle types have already been programmed. ➮ Press the DEQ button 8. ➮... - Page 58 EQUALIZER ➮ button 6 re- Press the peatedly until the equalizer band that you want to configure (“LOW1”, “LOW2”, “HIGH1”, “HIGH2” or “HIGH3”) appears on the display. ➮ Press the MENU•OK button 7. ➮ button 6 Press the repeatedly until the frequency that you want is displayed.
-
Page 59: Help Adjusting The Equalizer
Help adjusting the equalizer Sound Impression/problem Bass sound is too weak. Dirty bass. Booming sound. Unpleasant pressure. Sound very much in the foreground, aggressive, no stereo effect. Dull sound. Little clarity. No brilliance to the instruments. EQUALIZER Measures Increase bass with Frequency: 32 to 160 Hz Gain: +4 to +6 Reduce the lower mid level with... -
Page 60: Adjusting The Display Settings
DISPLAY Adjusting the display settings Adjusting the display brightness If your car sound system is connected as described in the installation instruc- tions, the display brightness of the in- ternal display switches with the head- lights. You can adjust the display bright- ness separately for night and day in steps ranging from 1 - 16. -
Page 61: External Audio Sources
An adapter cable is needed to connect an external audio source instead of a CD changer. You can obtain this cable (Blaupunkt no.: 7 607 897 093) from your authorised Blaupunkt dealer. Information about where to connect an audio source to the AUX2 input can be found in the installation instructions. -
Page 62: Amplifier/Sub-Out
AMPLIFIER/SUB-OUT Amplifier/sub-out The car sound system provides con- nections that allow you to connect ex- ternal amplifiers. In addition, you can connect an amplifier to the integrated low-pass filter to operate a subwoofer. For this purpose, the amplifiers must be connected as described in the in- stallation instructions. -
Page 63: Specifications
Specifications Amplifier Output power: 18 W RMS x 4 ch @ 14.4V @ 4 Ohm @ 1% THD Tuner Wavebands in the US: 87.5 - 107.9 MHz (200 kHz step) 530 - 1710 kHz (10 kHz step) Wavebands in Europe: 87.5 - 108 MHz (100 kHz step auto/50 kHz... - Page 64 Please keep the filled-in radio pass in a safe place! Prière de conserver soigneusement la carte d’autoradio remplie ! ¡Favor guardar el documento del aparato debidamente llenado en un lugar seguro! Por favor, guardar o cartão preenchido do aparelho num lugar seguro!
