Holman EzyONE Mini Quick Setup Manual

Our EzyOne Mini works like a clock, sending an electrical signal to solenoid valves located around your garden. These valves divide the system up into zones or STATIONS. This helps to maintain the right amount of pressure for your sprinklers. Each solenoid is
connected to the EzyOne Mini via an individual cable. To complete the electrical circuit, a COMMON wire runs from the EzyOne Mini to all your valves. To open a valve (or water a STATION), the EzyOne Mini sends an electric current to lift a plunger in the solenoid
coil. After the RUN TIME has expired, the electric current is discontinued and the valve closes. The EzyOne Mini will then automatically open the next valve in the sequence, continuing this way until all allocated STATIONS have been watered. In addition, the
EzyOne Mini can have up to three different START and RUN TIMES on each station.
Additional Features
SEASONAL WATER SAVING
L Watering durations can be i. Turn the MAIN DIAL to
adjusted proportionally by a RUN and press
percentage from 10-100%
ii. Use
L E.g. Water 100% during Summer, WATER SAVER % shown on the
and 40% during Autumn display in 10% increments
RESETTING THE UNIT STOP ALL WATERING
i. Turn the MAIN DIAL to OFF 1. Turn the MAIN DIAL to OFF
ii. When the display reads L This will hold all set watering
ALL OFF, press until the
L This is ideal during wet
display reads CLR ALL
weather to suspend all
iii. Press until the display watering until the dial is
reads ALL OFF again turned back to RUN
ΠAll data will be erased
from the system
RUN A START SEQUENCE
i. Turn the MAIN DIAL L Each STATION 1 through 6
to RUN A START will run sequentially as per
the set watering durations
ii. Press to run the
desired RUN TIME L Press
watering immediately
MANUAL WATERING PER STATION
L RUN TIME will be set i. Press
to OFF by default immediately for the set duration
L Adjust the run time ii. Press
below 1 or above 255 to
turn the station OFF
FUSE
ΠUse only 1 amp fuse M-205
POWER SUPPLY
This unit can run off a 50Hz
external transformer with
an output of 24V AC 50Hz
L Input: 24V AC 50Hz
L Output: Max 1 amp
L To stations:
24V AC 50/60Hz.
0.5 amp max
L To master/pump:
24V AC 0.25, amp max
ΠTransformer and fuse
capacity must be compatible
with output requirements
L Overload protection:
Standard 20mm 1 amp fuse
ΠOutput circuits should be
installed and protected in
accordance with wiring rules
ELECTRICAL CONNECTION AUTO BACKUP
ΠInstallation must be carried L During a power outage
out in accordance with these without a 9V battery
instructions and all Local, fitted, schedules will
State and Federal codes still be saved in the
permanent memory chip
ΠDisconnect all 240V AC
power before commencing L Clock time (at the time
any field wiring or solenoid of the power outage) will
valve connection be retained in memory
STATION / VALVE 1 LOCATION:
STATION / VALVE 2 LOCATION:

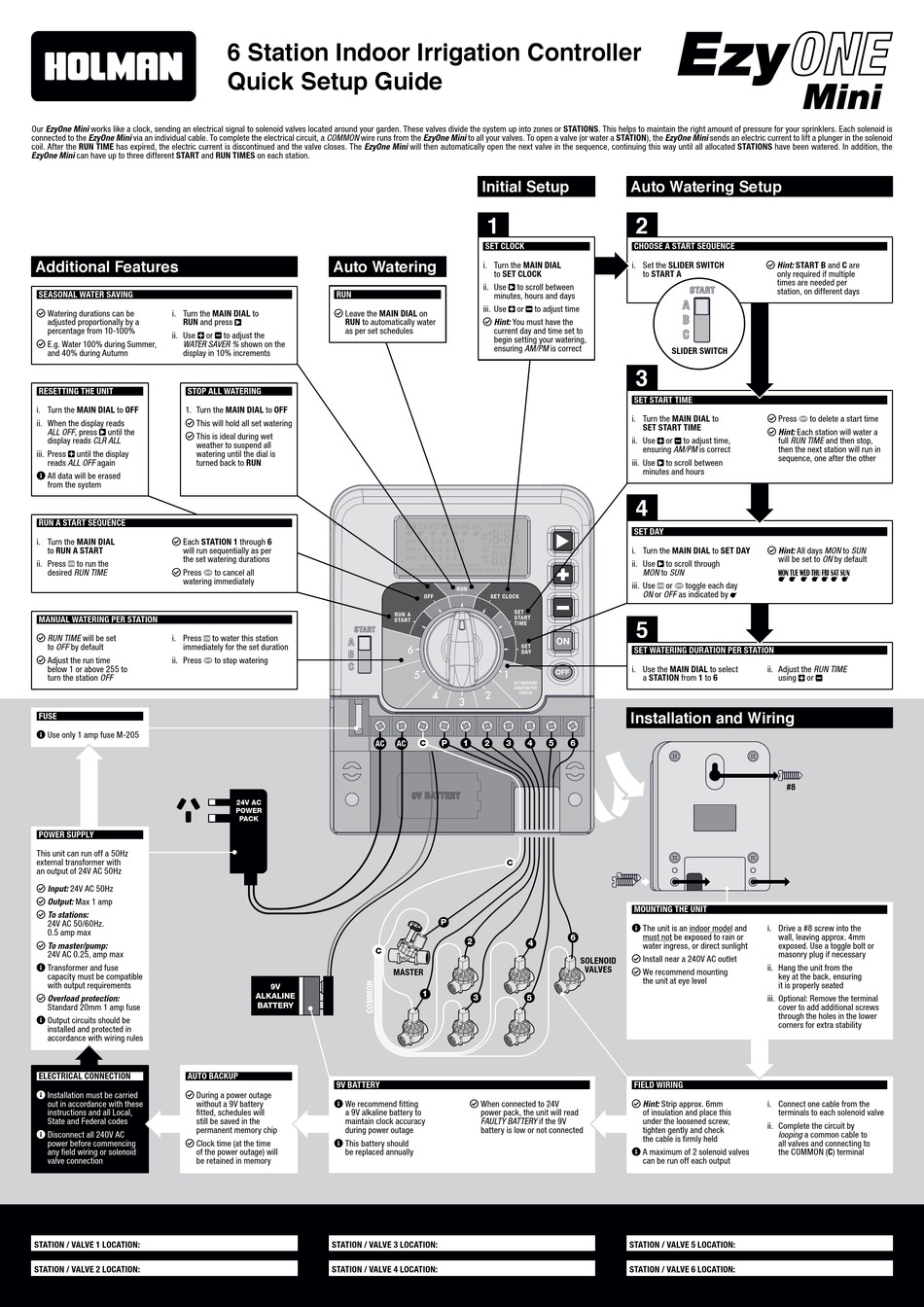

6 Station Indoor Irrigation Controller
Quick Setup Guide
Auto Watering
RUN
L Leave the MAIN DIAL on
RUN to automatically water
as per set schedules
or to adjust the
to cancel all
to water this station
to stop watering
AC
24V AC
POWER
PACK
C
9V
ALKALINE
BATTERY
9V BATTERY
ΠWe recommend fitting
a 9V alkaline battery to
maintain clock accuracy
during power outage
ΠThis battery should
be replaced annually
STATION / VALVE 3 LOCATION:
STATION / VALVE 4 LOCATION:
Initial Setup
1
SET CLOCK
i. Turn the MAIN DIAL
to SET CLOCK
ii. Use to scroll between
minutes, hours and days
iii. Use or to adjust time
L Hint: You must have the
current day and time set to
begin setting your watering,
ensuring AM/PM is correct
RUN
OFF SET CLOCK
SET
RUN A
START
START
TIME
6 SET
DAY
5 1
SET WATERING
DURATION PER
4 2
STATION
3
C P 1 2 3 4 5
AC
C
P
2
4
MASTER
1
3 5
L When connected to 24V
power pack, the unit will read
FAULTY BATTERY if the 9V
battery is low or not connected
Auto Watering Setup
2
CHOOSE A START SEQUENCE
i. Set the SLIDER SWITCH
to START A
SLIDER SWITCH
3
SET START TIME
i. Turn the MAIN DIAL to
SET START TIME
ii. Use or to adjust time,
ensuring AM/PM is correct
iii. Use to scroll between
minutes and hours
4
SET DAY
i. Turn the MAIN DIAL to SET DAY
ii. Use to scroll through
MON to SUN
iii. Use or toggle each day
ON or OFF as indicated by
5
SET WATERING DURATION PER STATION
i. Use the MAIN DIAL to select
a STATION from 1 to 6
Installation and Wiring
6
MOUNTING THE UNIT
ΠThe unit is an indoor model and
must not be exposed to rain or
6
water ingress, or direct sunlight
L Install near a 240V AC outlet
SOLENOID
VALVES
L We recommend mounting
the unit at eye level
FIELD WIRING
L Hint: Strip approx. 6mm
of insulation and place this
under the loosened screw,
tighten gently and check
the cable is firmly held
ΠA maximum of 2 solenoid valves
can be run off each output
STATION / VALVE 5 LOCATION:
STATION / VALVE 6 LOCATION:
L Hint: START B and C are
only required if multiple
times are needed per
station, on different days
L Press to delete a start time
L Hint: Each station will water a
full RUN TIME and then stop,
then the next station will run in
sequence, one after the other
L Hint: All days MON to SUN
will be set to ON by default
ii. Adjust the RUN TIME
using or
#8
i. Drive a #8 screw into the
wall, leaving approx. 4mm
exposed. Use a toggle bolt or
masonry plug if necessary
ii. Hang the unit from the
key at the back, ensuring
it is properly seated
iii. Optional: Remove the terminal
cover to add additional screws
through the holes in the lower
corners for extra stability
i. Connect one cable from the
terminals to each solenoid valve
ii. Complete the circuit by
looping a common cable to
all valves and connecting to
the COMMON (C) terminal
