4. TEChNiCal CharaCTEriSTiCS
>
Transceiver
Indicator LED............................
Number of keys......................... 4 keys so that up to 4 relays can be run.
Construction............................... Black casing.
Operating temperature................... -20°C +70°C
Dimensions.................................... See below
Power supply.................................. 3 V battery (Lithium CR2032)
Typical usage............................
Strength of signal output............... 10 mW
Frequency................................ 868.30 MHz
>
rECEiVEr
Wiring...........................................
Construction.................................. Grey ABS casing RAL 7035.
Operating temperature................... 0°C +50°C
Protection class.............................. IP56, IK08
Weight.......................................... 0.6 kg
Dimensions.................................... See below
Power supply..................................
Reception sensitivity................... -122 dBm
Bi-colour LED green for transmission and orange to confirm that the reciever
has received the command.
If the battery is low: The LED is red for transmission and confirmation.
Transmission: 35 mA
Acknowledgement: 16 mA
39
1
S +
2
M -
3
R +
4
T -
2 cables:
1 x 2 pair cable for the power supply and common control of the relays.
1 x 3 pair cable for the independent control of the relays.
12V (from the GPS input or DHF of the master clock) or 24V (from the impulse
output of the master clock)
120
11

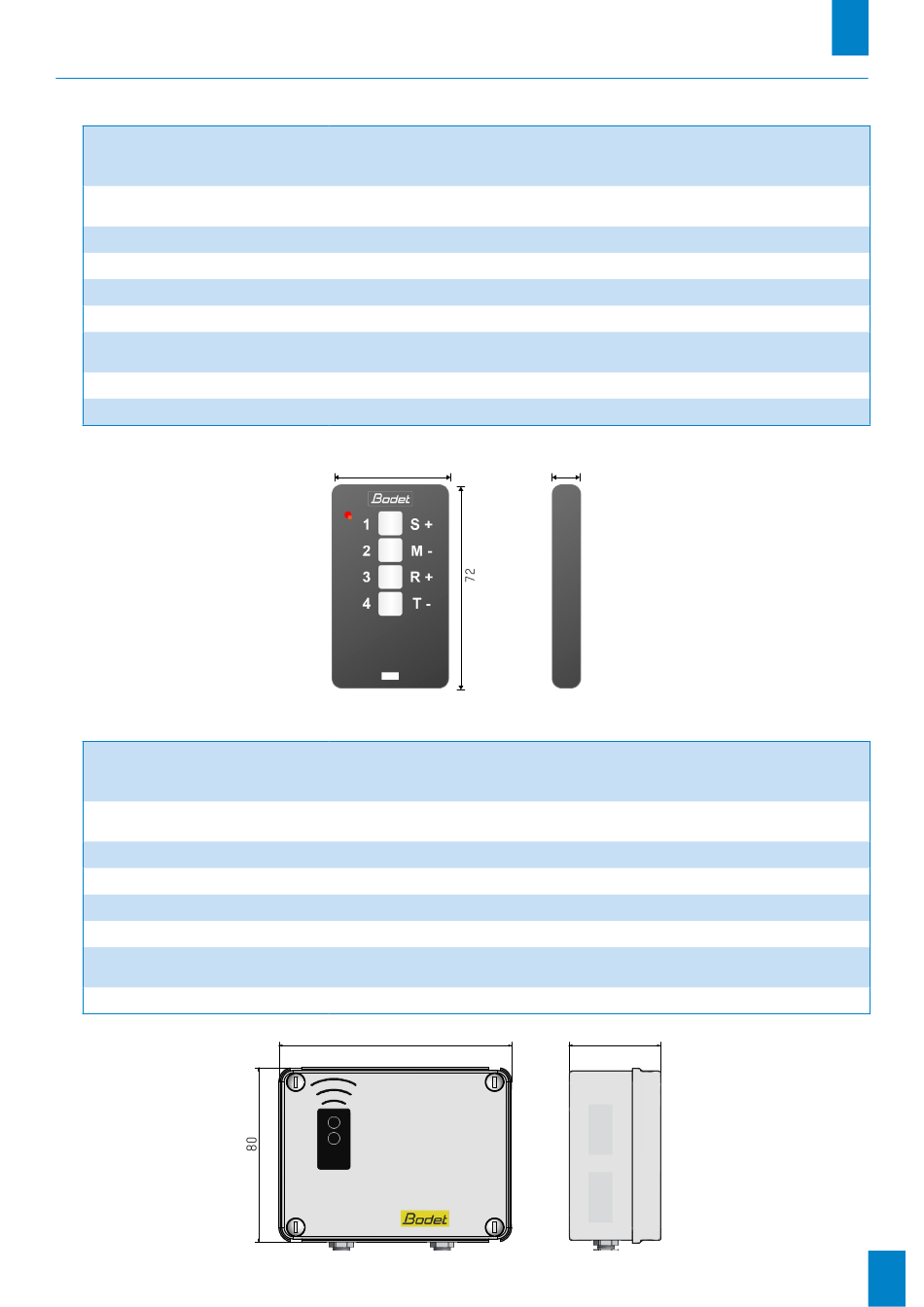

Dimensions in mm
50
Dimensions in mm
EN
9
