2. iNSTallaTiON
2.1 mechanical installation
2
82
3
2.2 Electrical connections
>
Scenario 1: shared control between the relays
The position of the diPs should be maintened for common control
LoRa transceiver
Sigma card
1 Proximity to the Sigma master clock must be ensured when chosing a location
for installation.

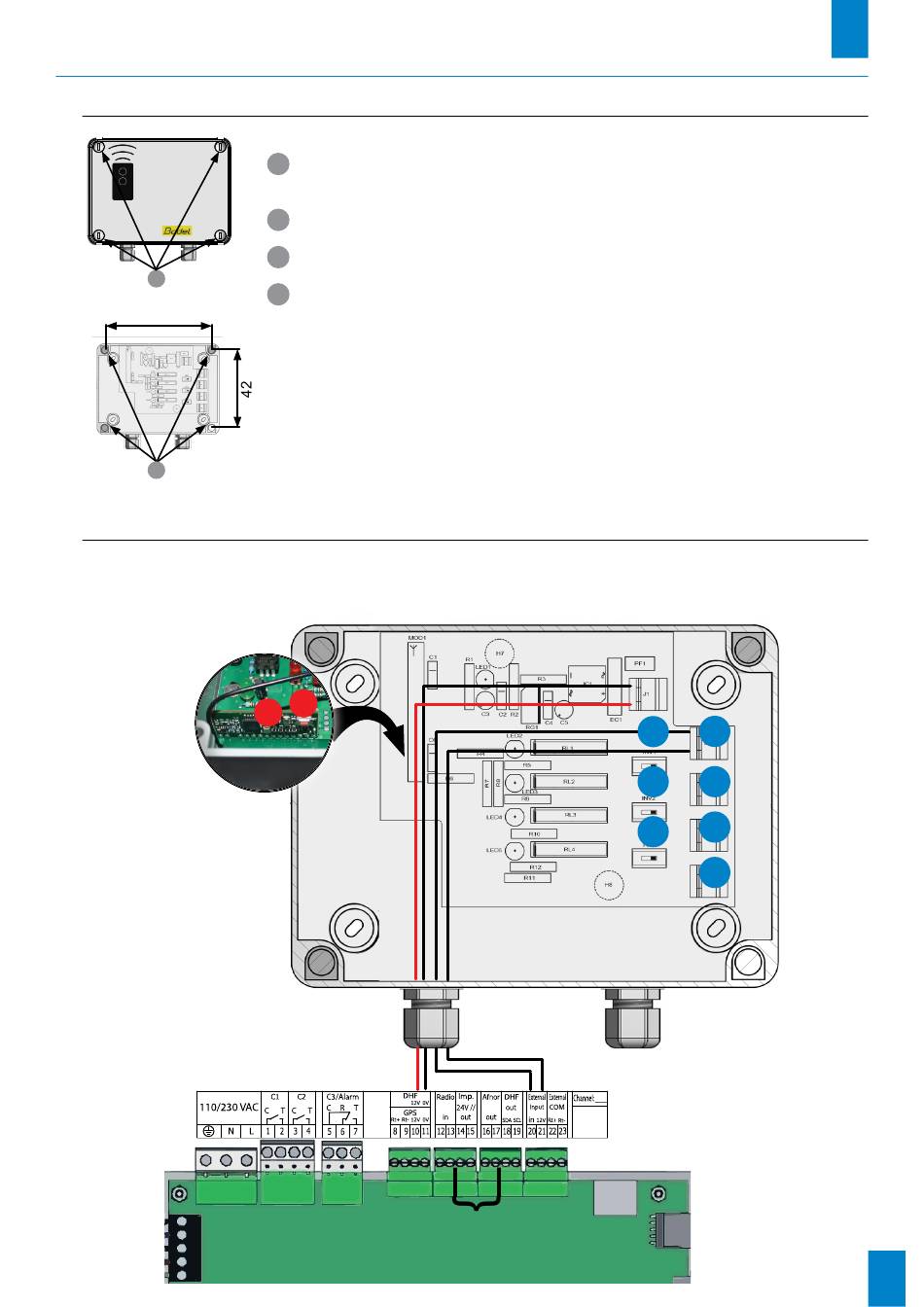

2 Unscrew the 4 screws from the box.
3 Fix the sounder into place using the screws to attach it to the wall.
4 Make the electrical connections and configure the DIPs using the control mode
(see following chapter).
recommendation: We recommend you install the receiver as high as possible
and close to windows. The receiver can be a maximum of
50 metres away from the master clock.
B
L
Connectors available only on Sigma
Mod and Sigma P
SW1
1
SW2
2
3
SW3
4
EN
5
