Hastings 6790 Instructions

Load spotter

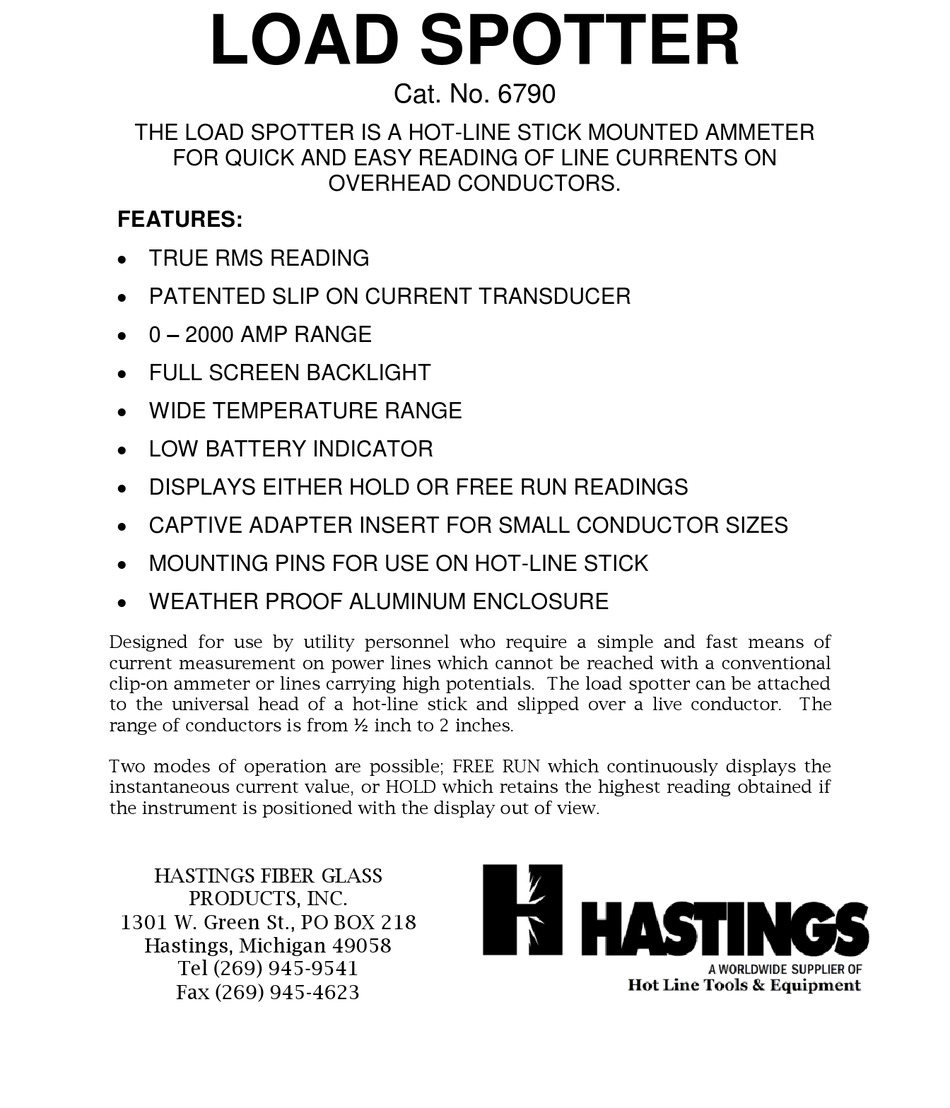

LOAD SPOTTER

THE LOAD SPOTTER IS A HOT-LINE STICK MOUNTED AMMETER

FOR QUICK AND EASY READING OF LINE CURRENTS ON

FEATURES:

 TRUE RMS READING

 PATENTED SLIP ON CURRENT TRANSDUCER

 0 – 2000 AMP RANGE

 FULL SCREEN BACKLIGHT

 WIDE TEMPERATURE RANGE

 LOW BATTERY INDICATOR

 DISPLAYS EITHER HOLD OR FREE RUN READINGS

 CAPTIVE ADAPTER INSERT FOR SMALL CONDUCTOR SIZES

 MOUNTING PINS FOR USE ON HOT-LINE STICK

 WEATHER PROOF ALUMINUM ENCLOSURE

Designed for use by utility personnel who require a simple and fast means of

current measurement on power lines which cannot be reached with a conventional

clip-on ammeter or lines carrying high potentials. The load spotter can be attached

to the universal head of a hot-line stick and slipped over a live conductor. The

range of conductors is from ½ inch to 2 inches.

Two modes of operation are possible; FREE RUN which continuously displays the

instantaneous current value, or HOLD which retains the highest reading obtained if

the instrument is positioned with the display out of view.

HASTINGS FIBER GLASS

PRODUCTS, INC.

1301 W. Green St., PO BOX 218

Hastings, Michigan 49058

Tel (269) 945-9541

Fax (269) 945-4623

Cat. No. 6790

OVERHEAD CONDUCTORS.
