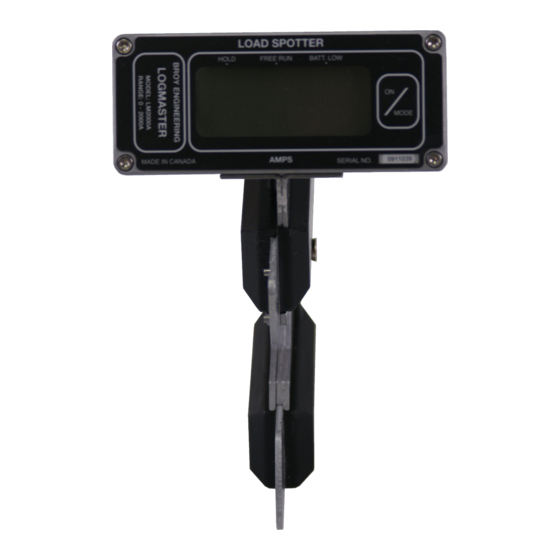

2000 AMP LOAD SPOTTER
THE LOAD SPOTTER IS A RUGGED HOT-LINE STICK MOUNTED AMMETER FOR QUICK
AND EASY READING OF LINE CURRENTS ON OVERHEAD CONDUCTORS.
FEATURES:
PATENTED SLIP ON CURRENT TRANSDUCER
0-2000 AMP RANGE
LARGE DIGIT LCD DISPLAY WITH LED BACK LIGHT
WIDE TEMPERATURE RANGE
LOW BATTERY INDICATOR
DISPLAYS EITHER PEAK HOLD OR FREE RUN
READINGS
REMOVEABLE INSERT FOR SMALL
CONDUCTOR SIZES
HOT-LINE STICK UNIVERSAL HEAD MOUNTABLE
WEATHER PROOF ALUMINUM ENCLOSURE
Conductor size:
1/2 to 1 1/4 inches with captive adapter in place
1 1/4 to 2 inches with adapter removed
Current range: 0-2000 amps RMS
Accuracy: ± 5% of reading
LOGMASTER
LM2000A
LOGMASTER LM2000A SPECIFICATIONS
Resolution: 1 amp
Maximum line voltage: Field tested to 500 kV
Temperature range: -20C to +40C
Battery: 6 AA alkaline cells
Weight: 1.1 kg
Advertisement
Table of Contents
Related Manuals for Hastings LOGMASTER LM2000A
Summary of Contents for Hastings LOGMASTER LM2000A
- Page 1 REMOVEABLE INSERT FOR SMALL CONDUCTOR SIZES HOT-LINE STICK UNIVERSAL HEAD MOUNTABLE WEATHER PROOF ALUMINUM ENCLOSURE LOGMASTER LM2000A SPECIFICATIONS Conductor size: Resolution: 1 amp 1/2 to 1 1/4 inches with captive adapter in place Maximum line voltage: Field tested to 500 kV...
- Page 2 Designed for use by utility personnel who require Two modes of operation are possible; FREE RUN a simple and, fast means of current measurement which continuously displays the instantaneous on power lines which cannot be reached with a current value, or PEAK HOLD which retains conventional clip-on ammeter, or are carrying...
