Safety and Warnings ..................................................................................................................................... 2
Installing EasyStart ........................................................................................................................................ 3
Step 1: Identify the components .............................................................................................................. 3
Step 2: Mounting the unit ......................................................................................................................... 3
Step 3: Identify the capacitor terminals ................................................................................................... 4
Three terminal run capacitors............................................................................................................... 4
Two terminal run capacitors ................................................................................................................. 4
Step 4: Removing start devices ................................................................................................................. 5
Step 5: Check for compressor monitoring systems .................................................................................. 5
Step 6: Connecting the ORANGE wire ....................................................................................................... 5
Step 7: Connecting the BROWN wire ........................................................................................................ 6
Step 8: Connecting the WHITE wire .......................................................................................................... 6
Step 9: Connecting the BLACK wire .......................................................................................................... 7
Step 10: Learning ...................................................................................................................................... 7
Appendix 1: Compressor monitoring system changes ................................................................................. 8
Models without Bluetooth ........................................................................................................................ 8
Models with Bluetooth ............................................................................................................................. 8
Appendix 2: Maintenance ............................................................................................................................. 9
Appendix 3: Additional Resources ................................................................................................................ 9
©2021 Micro-Air corp.
EasyStart Home AC Wiring
Using Micro-Air ASY-364 or ASY-368
1
rev. 1.06
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MICRO-AIR EasyStart Home
Summary of Contents for MICRO-AIR EasyStart Home
-
Page 1: Table Of Contents
EasyStart Home AC Wiring Using Micro-Air ASY-364 or ASY-368 Contents Safety and Warnings ............................. 2 Installing EasyStart ............................3 Step 1: Identify the components ......................3 Step 2: Mounting the unit ......................... 3 Step 3: Identify the capacitor terminals ....................4 Three terminal run capacitors....................... -
Page 2: Safety And Warnings
Capacitors can store a charge and should be discharged by touching both terminals simultaneously with an insulated screw driver. Three terminal caps should use the “C” terminal to short each of the other two terminals. ©2021 Micro-Air corp. rev. 1.06... -
Page 3: Installing Easystart

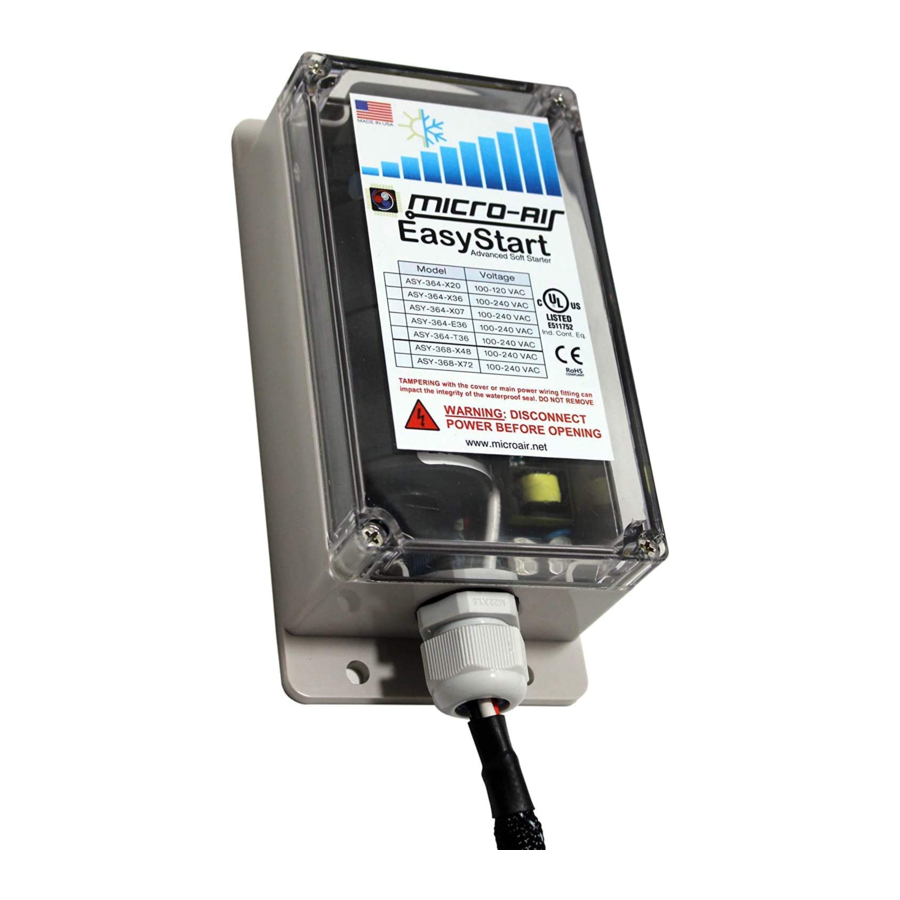

EasyStart can be mounted on any flat surface in either a horizontal or vertical position. It can also be mounted with the clear cover pointing up. The wire entry must face down when EasyStart is mounted vertically. ©2021 Micro-Air corp. rev. 1.06... -
Page 4: Step 3: Identify The Capacitor Terminals
“C” terminal and will be left in place. The other unmarked terminal is the HERM terminal. For the remainder of this document, we will refer to the HERM terminal and C terminal for all types of capacitors. Figure 3 ©2021 Micro-Air corp. rev. 1.06... -
Page 5: Step 4: Removing Start Devices
EasyStart so it does not cause an artificial fault. Appendix 1: Compressor monitoring system changes for information on this change if it is required for your installation. Step 6: Connecting the ORANGE wire Connect the EasyStart ORANGE wire to the HERM terminal. ©2021 Micro-Air corp. rev. 1.06... -
Page 6: Step 7: Connecting The Brown Wire
Note: Compressors with an RLA over 18 amps should not use the spade connection like shown in figure 5 but should connect using a ring, fork or direct wire connection under the screw. Be sure to match whatever method is used for the original installation. ©2021 Micro-Air corp. rev. 1.06... -
Page 7: Step 9: Connecting The Black Wire
EasyStart is now installed. The compressor can be cycled normally to complete the learning process. If you are going to test on a generator or alternate power source, be sure the compressor has started five times before starting on a generator or other power source. ©2021 Micro-Air corp. rev. 1.06... -
Page 8: Appendix 1: Compressor Monitoring System Changes
“ON”. Set the SCPT (minutes) for 1. Press “send settings to EasyStart”. Exit the app and turn off the breaker to the air conditioner. Disconnect the white and black EasyStart wires and continue with the installation. ©2021 Micro-Air corp. rev. 1.06... -
Page 9: Appendix 2: Maintenance
It can be washed with a mild soap and water solution. Appendix 3: Additional Resources For additional information on EasyStart, troubleshooting or assistance, please visit our website at www.Microair.net ©2021 Micro-Air corp. rev. 1.06...
