MICRO-AIR EasyTouch Operation Manual

2.5'' color tft touch screen controller for fx1 & fx2 control boards
Hide thumbs Also See for EasyTouch:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

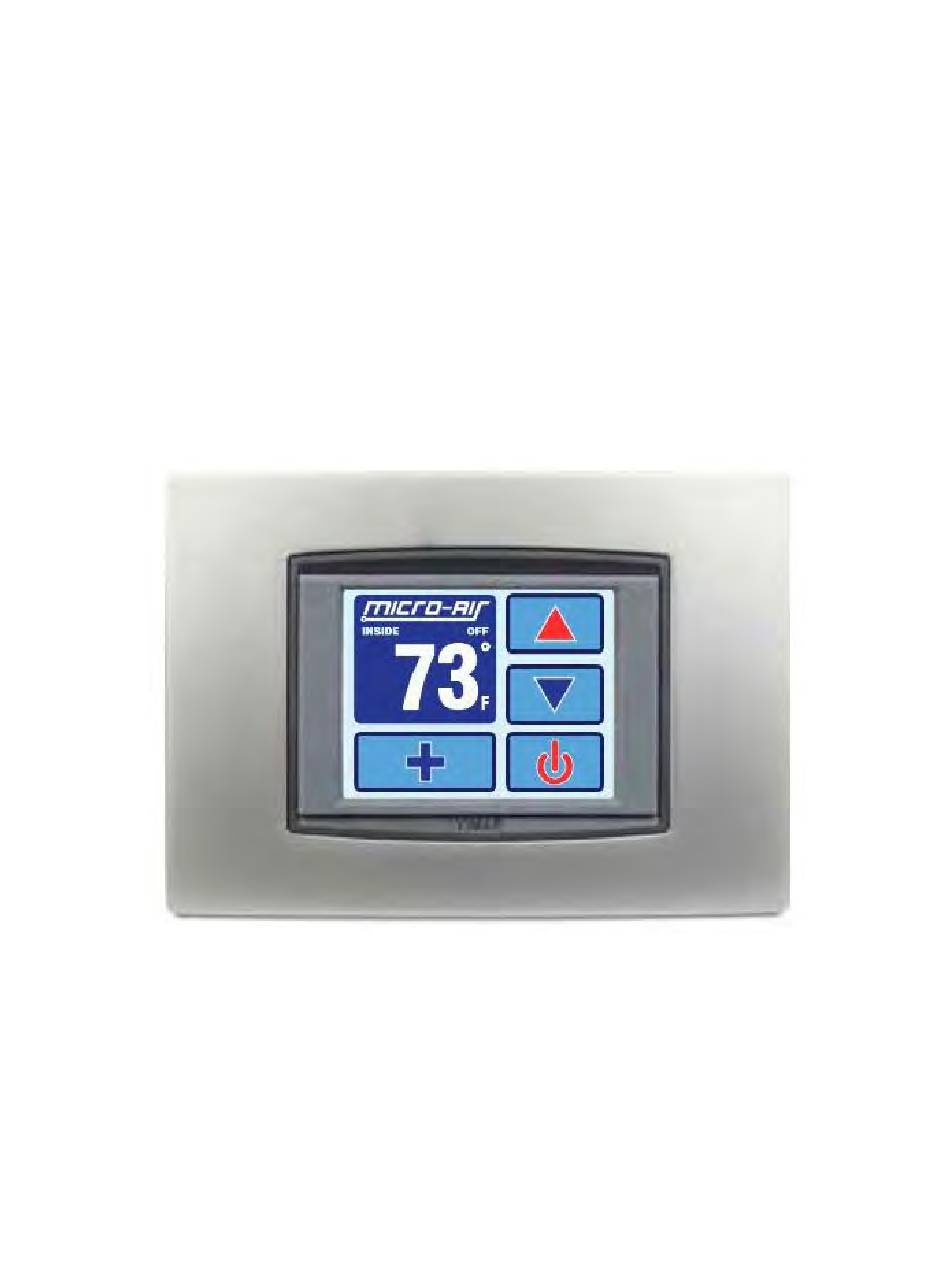

EasyTouch
Operation Manual
2.5" Color TFT Touch Screen Controller
for FX1 & FX2 Control Boards
Micro-Air, Inc.
www.microair.net
124 Route 526
Ph: (609) 259-2636
Allentown, NJ 08501
Fax: (609) 259-6601

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EasyTouch and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MICRO-AIR EasyTouch

Summary of Contents for MICRO-AIR EasyTouch

  • Page 1 EasyTouch Operation Manual 2.5” Color TFT Touch Screen Controller for FX1 & FX2 Control Boards Micro-Air, Inc. www.microair.net 124 Route 526 Ph: (609) 259-2636 Allentown, NJ 08501 Fax: (609) 259-6601...

  • Page 2: Table Of Contents

    3.3 Control Boards and Options Supported by EasyTouch ................5 4. OVERVIEW .......................... 6 4.1 EasyTouch Home & Main Screen Displays ....................6 4.2 EasyTouch Power-Up & Default Sleep Mode Screen Display ..............6 5. INSTALLING THE DISPLAY PANEL .................. 6 5.1 Choosing the Location ..........................6 5.2 Installing the Battery (for older EasyTouch models only) ................
  • Page 3 15.3 Sleep Mode Settings ..........................44 15.4 Display Lock ............................. 45 15.5 Cleaning Mode ............................47 15.6 Wi-Fi Settings (optional EasyTouch feature) .................... 47 16. TROUBLESHOOT & COMMISSION MENU ..............48 16.1 System Status ............................49 16.2 Help & Information ............................ 49 16.3 Commission Procedure ..........................

  • Page 4: Introduction

    2. READ THIS MANUAL BEFORE PROCEEDING Read this manual completely before you proceed with the installation and operation of the EasyTouch. If you have questions or require assistance with your EasyTouch control, contact Micro-Air at +1 (609) 259- 2636.

  • Page 5: Control Boards And Options Supported By Easytouch

    3.3 Control Boards and Options Supported by EasyTouch The EasyTouch has evolved and supports all of the features available in the original FX1 and in the newest FX2 Control Boards. Please refer to the following chart below for the minimum required firmware versions for the EasyTouch to support the control features required.

  • Page 6: Overview

    4.1 EasyTouch Home & Main Screen Displays The EasyTouch Home screen shown in Figure 1 consists of large, easy to read graphics, with large buttons for basic control functions. The Main screen shown in Figure 2 consists of smaller graphics showing all of the controls readouts and statuses, and had more buttons for all of the control functions.

  • Page 7: Mounting The Display

    1. Choose a wall location that has adequate depth (at least 1”/25.4mm) behind the wall itself. See Figure 5 for the depth dimensions of the display. Figure 5 – EasyTouch Display Top View Mounting Dimensions 2. Make the cut-out for the display panel as shown in Figure 6. Cut-out size is 2.900” (74mm) wide by 2.165”...

  • Page 8: Installing The Optional Sensors

    6.4 Water Inlet Temperature Sensor (for CW systems only) When using the EasyTouch with a chilled-water air handler, plug the water-inlet sensor cable into the “OAT/H2O” jack on FX1 or into the “OUTSIDE / RH” jack on FX2. Attach the sensor securely to the Micro-Air, Inc.

  • Page 9: Combination Temp/Humidity Sensors (For Cw & Famu Fx2 Systems Only)

    6.5 Combination Temp/Humidity Sensors (for CW & FAMU FX2 systems only) As described in the table in section 3.3, the EasyTouch supports an optional temperature and relative humidity sensor for cabin %RH control and for Fresh Air Makeup (FAMU) operation on FX2 control boards only.

  • Page 10: Standard Operation

    8. Power On/Off Button - Press and release to toggle between the ON (green) and OFF (red) operation. 9. Wi-Fi Network Status Indicator Icon – If the EasyTouch display has the optional Wi-Fi support feature installed, a Wi-Fi icon will appear and indicate the status of the Wi-Fi connection.
  • Page 11 3. Fan Speed Indicator – This indicator is a bar graph that shows the speed at which the fan is currently operating. There are 3 fan speeds with EasyTouch: 1 bar lit indicates low speed, 4 bars lit indicate medium speed, and 7 bars lit indicate high speed.

  • Page 12: Modes Of Operation

    14 for information on how to set the date & time, change formats, and enable or disable the display. 12. Home Button – Hidden behind the Micro-Air logo is a button that when pressed returns the display to the Home Screen.

  • Page 13: Fan Speed Modes

    8.3.1 Automatic Fan Speed Mode EasyTouch has three automatic fan speeds available: High, Medium and Low. While in the On Mode, Automatic Fan Speed Mode allows the EasyTouch to determine the required fan speed based upon the set point temperature differential. This permits a balance between the most efficient temperature control and slower, quieter fan speeds.

  • Page 14: Fresh Air Makeup (Famu) Operation

    FAMU systems therefore must incorporate both cooling and electric heating. EasyTouch supports FAMU operation for both DX and CW systems using the FX2 Control Board, rev J and newer. Please refer to the FX2 Control Board User Manual for further details on how to wire the FX2 control board to a FAMU system (available on the Micro-Air website at this link).

  • Page 15: Famu Operator Controls And Display

    See section 9.3 for more information on the controlling the fan speed. 3. Menu Button – The Menu button allows access to the EasyTouch Main Menu and all sub-menus beyond. See section 11 for more information on the menus.

  • Page 16: Famu Sequence Of Operation

    <= DP Compressor Elec Heat Increase Update Interval < (T – Diff3)? Electric Heat Expired? Decrease > (T + Diff3)? Electric Heat Figure 11 - FAMU DX Sequence of Operation Micro-Air, Inc. Page 16 EasyTouch Operations Manual Rev 3.0 4/3/17...
  • Page 17 <= DP Valve Elec Heat Increase Update Interval < (T – Diff3)? Electric Heat Expired? Decrease > (T + Diff3)? Electric Heat Figure 12 - FAMU CW Sequence of Operation Micro-Air, Inc. Page 17 EasyTouch Operations Manual Rev 3.0 4/3/17...

  • Page 18: Famu Settings & Recommendations

    10. FAULTS There are a total of six different faults that the EasyTouch can declare. Only one applies during CW operation and all six apply during DX operation. When a fault is declared, it is displayed in the Status Area of the Home, Main, FAMU, and System Status screens.

  • Page 19: Air Sensor Fault (Dx & Cw, Immediate Lockout)

    Main Screen Display: Status Screen Display: “FAULT INSIDE SENSOR” “SENSOR IN” Fault History Display: The EasyTouch can utilize one of 3 different temperature sensors for its Inside Temperature display and use for control purposes:  Built-in Display Temperature Sensor Alternate Air Temperature sensor plugged into the main FX1/FX2 control board ...

  • Page 20: Low Ac Fault (Dx & Famu Dx Only, No Lockout)

    “LOST AC” Fault History Display: The Lost AC Fault occurs whenever the EasyTouch detects that the AC line voltage has been lost during compressor operation (i.e. a brownout condition). Brownout conditions can cause compressors to stall very quickly (<50ms), so this detection protects the compressor by shutting down the compressor relay output and waiting for the normal fault recovery delay before attempting a compressor restart.

  • Page 21: Easystart Fault (Dx & Famu Dx Only, Contributes To Lockout Count)

    When power is restored, the control resumes operation as last programmed. The EasyTouch also has a battery to supply power to the real-time clock. If the battery has completely discharged or has been removed, only the time and date settings will be lost and will require resetting upon the next power up.

  • Page 22: Settings Screen

    Figure 14 – EasyTouch Menu Screen Layout 1. Home - Press this button at any time to return to the Home Screen. 2. Back - Press this button to return to the previous screen. 3. Scroll Down - Press this button go to the next page in the menu.

  • Page 23: General Settings

    For standard DX/CW Operation, the General Settings Menu consists of 19 items on 7 pages as shown in Figure 18, and for FAMU Operation it consists of 11 items on 3 pages as shown in Figure 19. Micro-Air, Inc. Page 23 EasyTouch Operations Manual Rev 3.0 4/3/17...
  • Page 24 Figure 18 – EasyTouch General Settings Menu Screens for Standard DX/CW System Figure 19 – EasyTouch General Settings Menu Screens for FAMU System Refer to Table 2 for a quick reference to the General Settings. Click the hyperlinks in the table to refer to the sections that follow providing further details on each setting.
