TRENDnet TFM-560U Installation

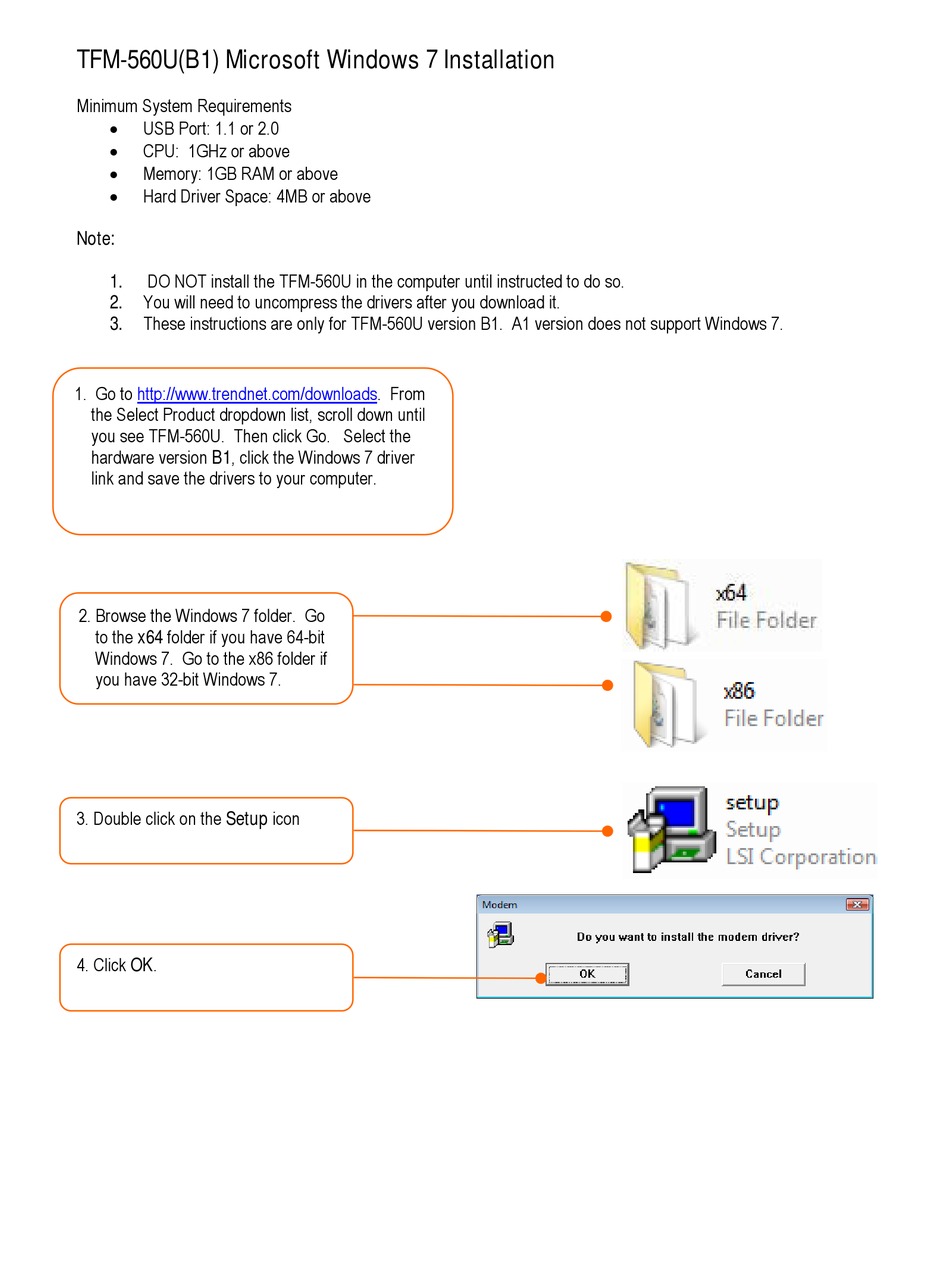

TFM-560U(B1) Microsoft Windows 7 Installation
Minimum System Requirements
USB Port: 1.1 or 2.0

CPU: 1GHz or above

Memory: 1GB RAM or above

Hard Driver Space: 4MB or above

Note:
DO NOT install the TFM-560U in the computer until instructed to do so.
1.
You will need to uncompress the drivers after you download it.
2.
These instructions are only for TFM-560U version B1. A1 version does not support Windows 7.
3.
1. Go to http://www.trendnet.com/downloads. From
the Select Product dropdown list, scroll down until
you see TFM-560U. Then click Go. Select the
hardware version B1, click the Windows 7 driver
link and save the drivers to your computer.
2. Browse the Windows 7 folder. Go
to the x64 folder if you have 64-bit
Windows 7. Go to the x86 folder if
you have 32-bit Windows 7.
3. Double click on the Setup icon
4. Click OK.
