Behringer DIGITAL MULTI-FX Quick Start Manual

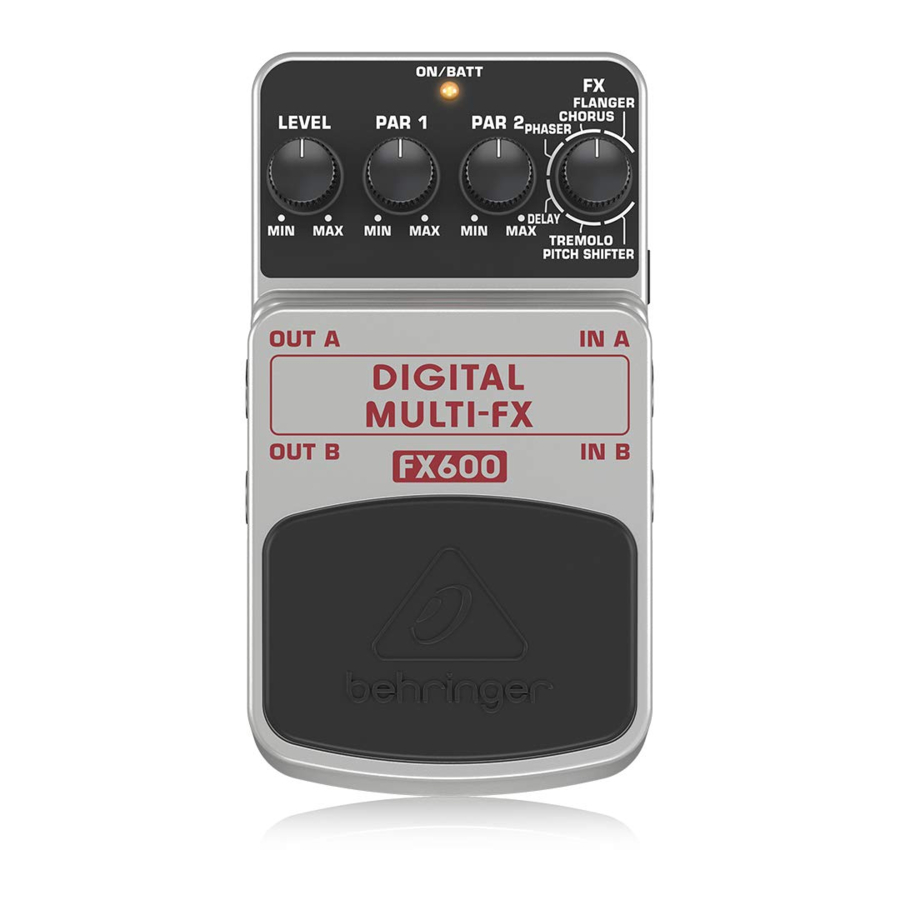

DIGITAL MULTI-FX FX600
Digital Stereo Multi-Effects Pedal
Thank you for showing your confidence in us by purchasing the BEHRINGER DIGITAL MULTI-FX FX600.
This ultimate digital multi-effects pedal delivers 24-bit high-resolution stereo effects including Flanger,
Chorus, Phaser, Delay, Tremolo and Pitch Shifter. Thanks to its extensive tone control plus additional multi-
functional parameter adjustment you'll have plenty of cool sounds at your disposal to handle every situation.

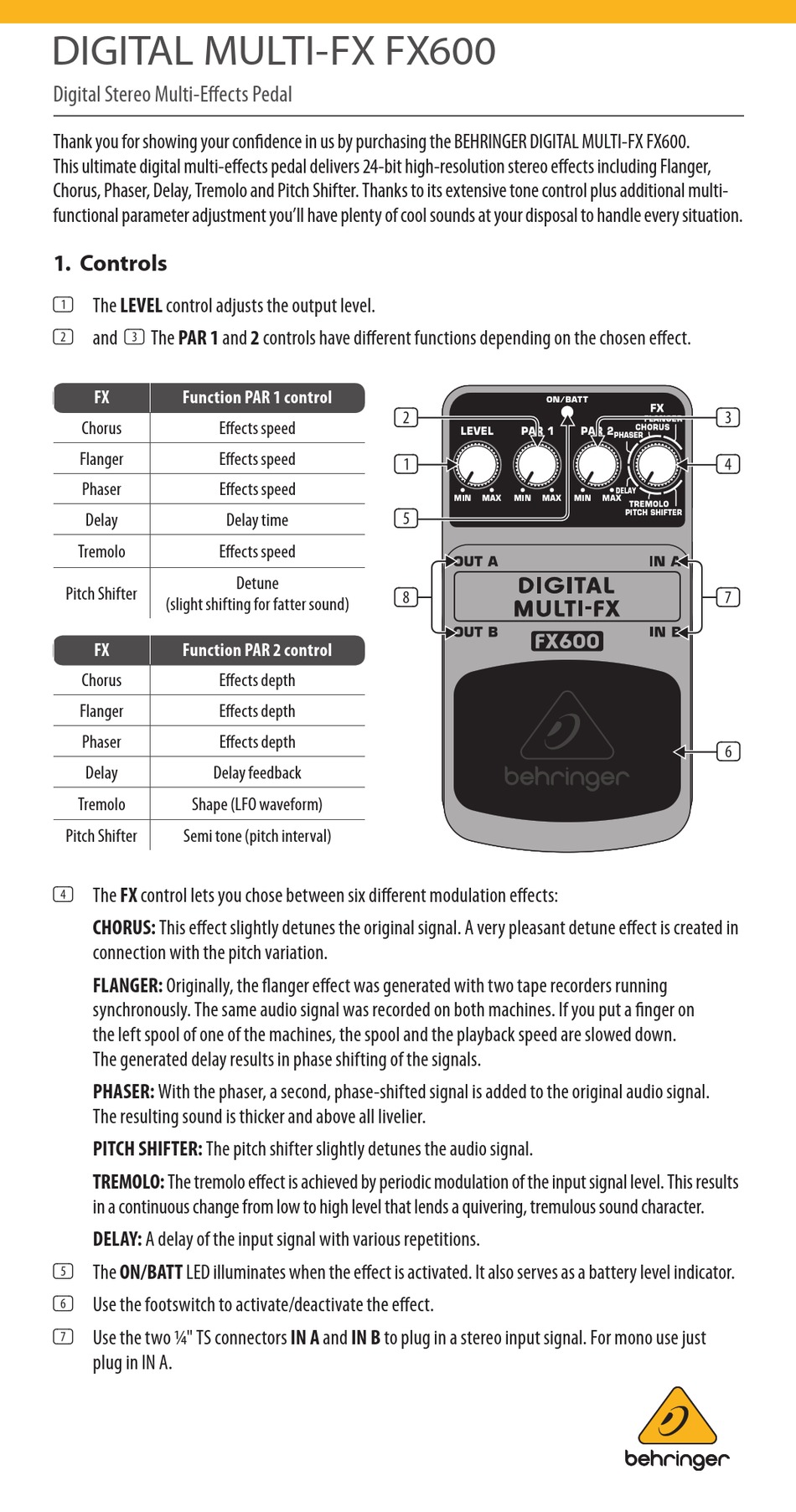

1. Controls
(1) The LEVEL control adjusts the output level.
(2) and (3) The PAR 1 and 2 controls have different functions depending on the chosen effect.
FX Function PAR 1 control
Chorus
Flanger
Phaser
Delay
Tremolo
Pitch Shifter
(slight shifting for fatter sound)
FX Function PAR 2 control
Chorus
Flanger
Phaser
Delay
Tremolo Shape (LFO waveform)
Pitch Shifter Semi tone (pitch interval)
(4) The FX control lets you chose between six different modulation effects:
CHORUS: This effect slightly detunes the original signal. A very pleasant detune effect is created in
connection with the pitch variation.
FLANGER: Originally, the flanger effect was generated with two tape recorders running
synchronously. The same audio signal was recorded on both machines. If you put a finger on
the left spool of one of the machines, the spool and the playback speed are slowed down.
The generated delay results in phase shifting of the signals.
PHASER: With the phaser, a second, phase-shifted signal is added to the original audio signal.
The resulting sound is thicker and above all livelier.
PITCH SHIFTER: The pitch shifter slightly detunes the audio signal.
TREMOLO: The tremolo effect is achieved by periodic modulation of the input signal level. This results
in a continuous change from low to high level that lends a quivering, tremulous sound character.
DELAY: A delay of the input signal with various repetitions.
(5) The ON/BATT LED illuminates when the effect is activated. It also serves as a battery level indicator.
(6) Use the footswitch to activate/deactivate the effect.
(7) Use the two 1/4" TS connectors IN A and IN B to plug in a stereo input signal. For mono use just
plug in IN A.
Effects speed
Effects speed
Effects speed
Delay time
Effects speed
Detune
Effects depth
Effects depth
Effects depth
Delay feedback
(2)
(1)
(5)
(8)
(3)
(4)
(7)
(6)
