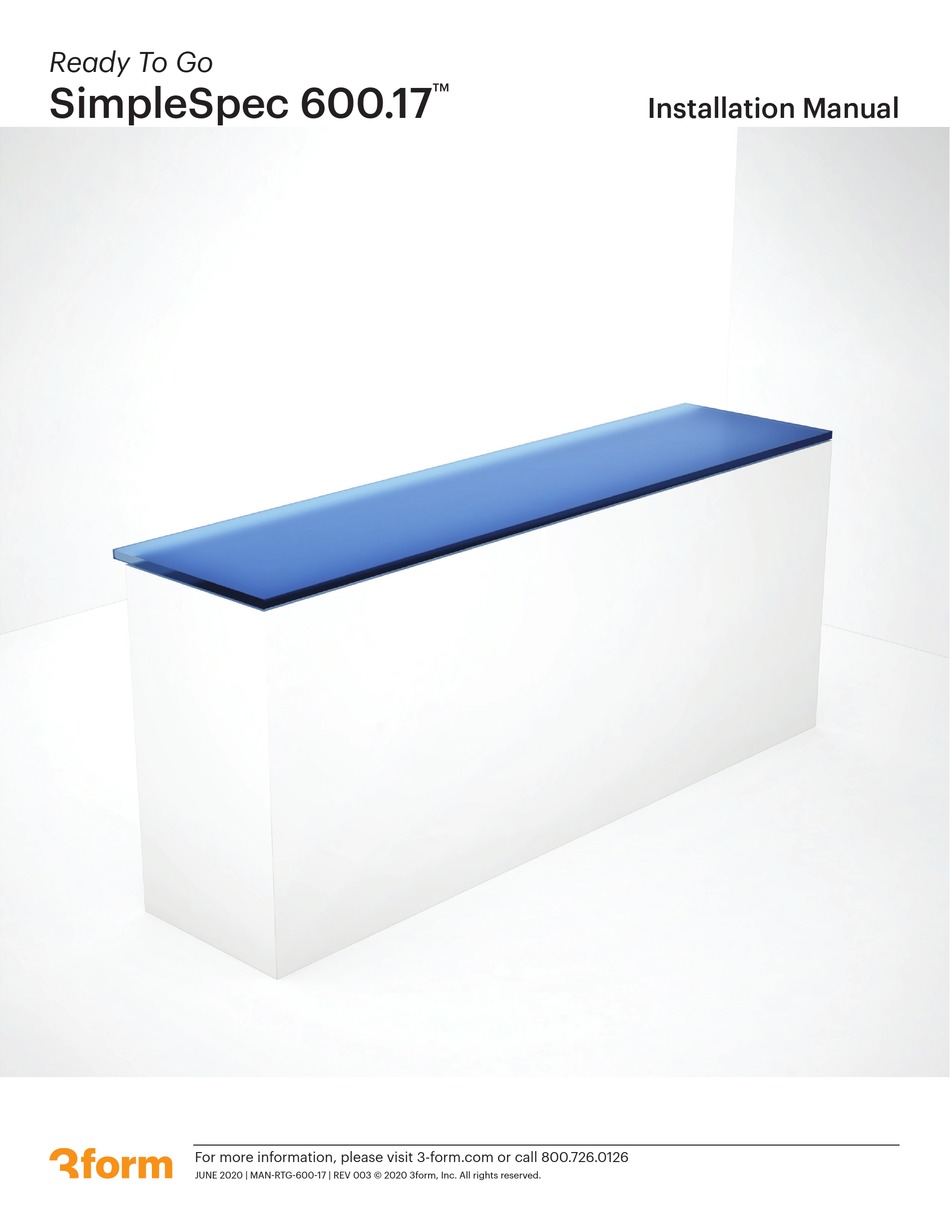

- Page 1 Ready To Go SimpleSpec 600.17 Installation Manual For more information, please visit 3-form.com or call 800.726.0126 June 2020 | MAn-RTG-600-17 | ReV 003 © 2020 3form, Inc. All rights reserved.
-
Page 2: Contents Overview
3-60-001 3-60-510 (�1) (�1) 3M VHB WHITE Tape 100' Patch Cable 3-20-313 3-60-002 Required Tools Clear Silicone For more information, please visit 3-form.com or call 800.726.0126 June 2020 | MAn-RTG-600-17 | ReV 003 © 2020 3form, Inc. All rights reserved. - Page 3 16' cable with mating connector for a total of 32' to controller. Can be extended up to 50' with 14-gauge wire by electrician. For more information, please visit 3-form.com or call 800.726.0126 June 2020 | MAn-RTG-600-17 | ReV 003 © 2020 3form, Inc. All rights reserved.
- Page 4 Apply 1"� 1" Piece of VHB tape in six (6) places on millwork . VHB Tape Millwork Apply quarter sized dab of clear silicone in six (6) places. For more information, please visit 3-form.com or call 800.726.0126 June 2020 | MAn-RTG-600-17 | ReV 003 © 2020 3form, Inc. All rights reserved.
- Page 5 Mare sure all tape sticks properly until silicone dries. Tape or clamp as needed to achieve good adhesion. For more information, please visit 3-form.com or call 800.726.0126 June 2020 | MAn-RTG-600-17 | ReV 003 © 2020 3form, Inc. All rights reserved.
-
Page 6: Connect Electrical
Fin or Countertop Power Supply 30' Cable to Fin or Countertop (can be extended an additional 20' with 14/2AWG+) For more information, please visit 3-form.com or call 800.726.0126 June 2020 | MAn-RTG-600-17 | ReV 003 © 2020 3form, Inc. All rights reserved.
