USER MANUAL MANUALE D’USO Swivel bracket for SWM-BR COMPACT M COMPACT M 05, M 06 and M 08 WALL MOUNT BRACKET Supporto orientabile per COMPACT M 05, M 06 e M 08...

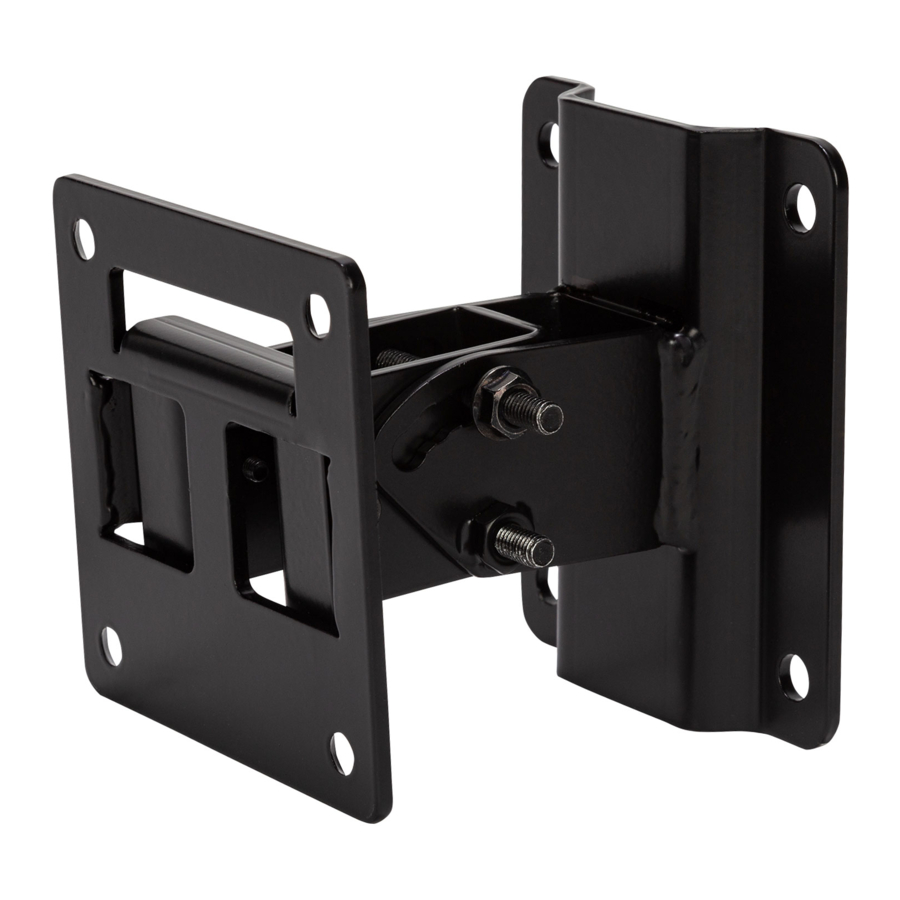

RCF S.P.A. THANKS YOU FOR PURCHASING THIS PRODUCT, WHICH HAS BEEN DESIGNED TO GUARANTEE RELIABILITY AND HIGH PERFORMANCE. DESCRIPTION Swivel bracket for COMPACT M 05, M 06 and M 08 models. INSTALLATION Loudspeakers are to be install by qualified personnel, respecting all safety standards.
Page 4
It is also possible the loudspeaker horizontal mounting (see the figure below). 3. Then, place the speakers on the support braket and tighten the two lateral bolts. SWM-BR COMPACT M...
L’installazione e l’utilizzo errati del prodotto esimono la RCF S.p.A. da ogni responsabilità. RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use of this product.
RCF S.P.A. VI RINGRAZIA PER L’ACQUISTO DI QUESTO PRODOTTO, REALIZZATO IN MODO DA GARANTIRNE L’AFFIDABILITÀ E PRESTAZIONI ELEVATE. DESCRIZIONE Supporto orientabile per i modelli COMPACT M 05, M 06 e M 08. INSTALLAZIONE L’installazione dei diffusori deve essere effettuata da personale qualificato rispettando gli standard di sicurezza.
Page 7
È inoltre possibile l’installazione orizzontale del diffusore (si veda la figura sotto). 3. Successivamente, posizionare il diffusore sulla staffa di supporto installata a parete e serrare le due viti di sicurezza laterali. SWM-BR COMPACT M...
