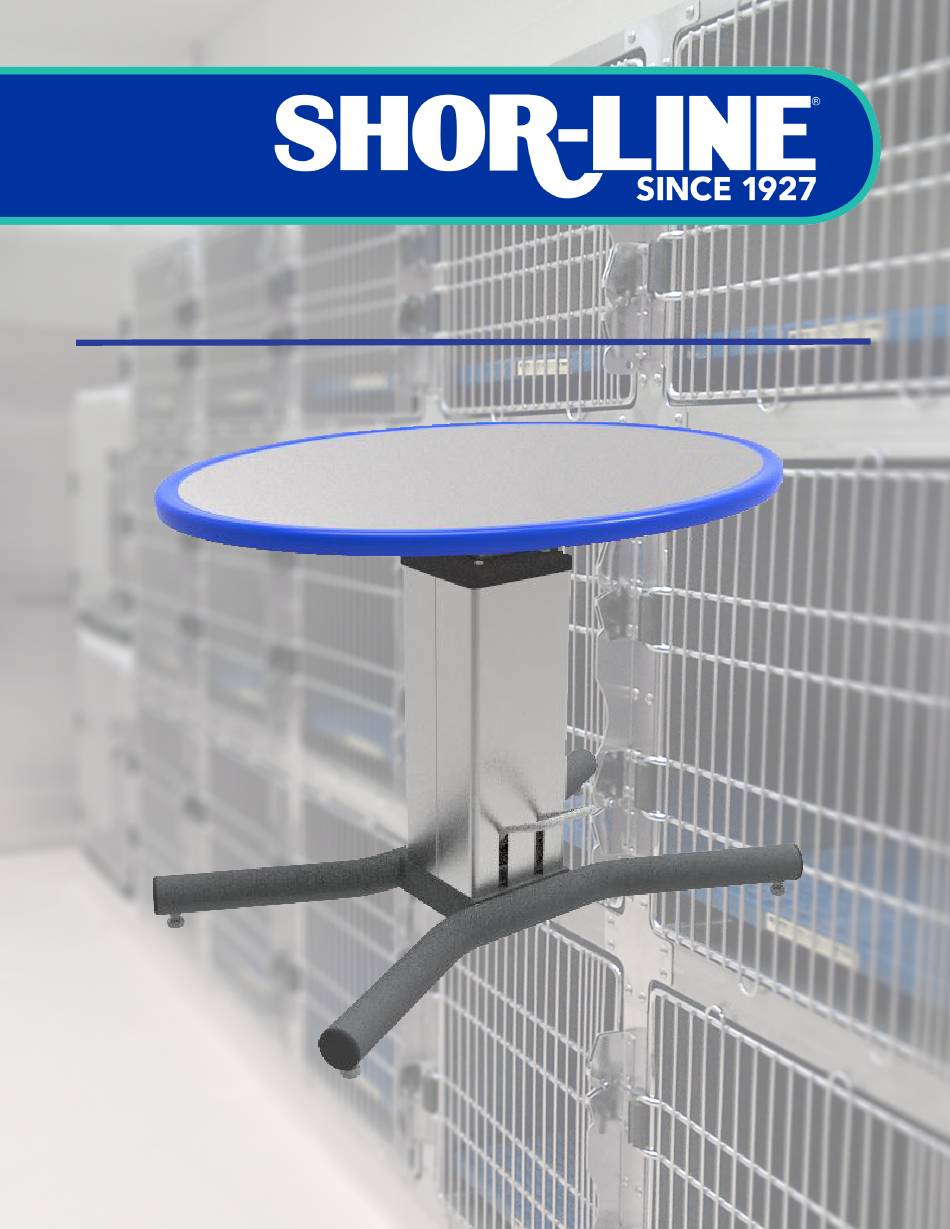

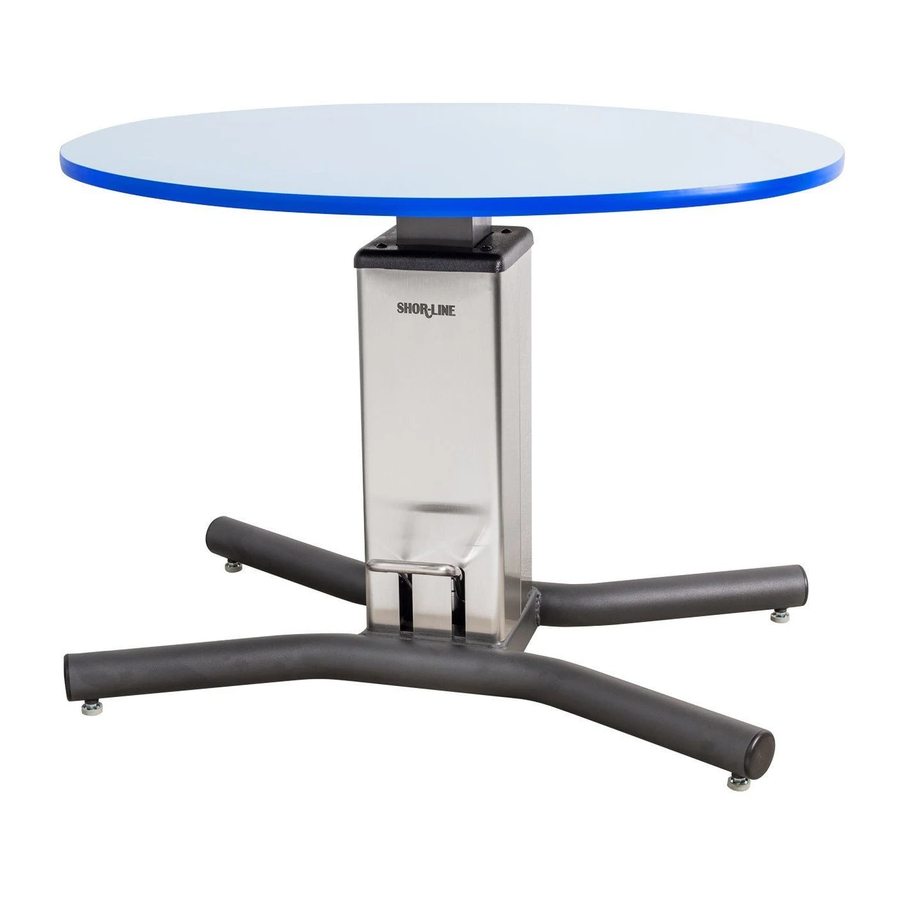

- Page 1 Feline LS Exam Table P R O D U C T G U I D E Blue Line - Feline LS Exam Table Shown (Colors/Models May Vary) Save This Guide For Future Reference PN: 006.4122.00 NOVEMBER 2020...
- Page 2 During installation, if a contradiction between this Guide, existing conditions, or local regulations arise, contact a Shor-Line representative before proceeding with installation. The Blue Line Feline LS Exam Table and Standard Feline Exam Table are also referred to as "Table" in this document.
-
Page 3: Table Of Contents
Continuum Table Base ....................4 Component Parts List ......................5 SECTION TWO, ASSEMBLY PROCEDURES Installation ......................6 Feline LS Exam Table ......................6 SECTION THREE, USE AND CARE Use And Care ....................7 Table Safe Use Practices ....................7 Table Lift Function ......................7 General Maintenance &... -
Page 4: General Information
Refer to the Guide, images and content to assist with the installation of the product. Throughout the Guide, safety notices provide help for a successful installation. SAFETY FIRST! Shor-Line uses the following symbols and signal words to identify potential hazards or unsafe practices: Safety Alert Symbol Indicates a potential personal injury hazard exists. -
Page 5: Safety Warnings Included In This Guide
Stainless steel panels have sharp edges, stay clear of and DO NOT TOUCH exposed edges which, if not avoided, could result in MINOR to MODERATE INJURY. Enlist help and USE SAFE LIFTING PRACTICES during assembly, installation and while moving equipment. Shor-Line.com... -
Page 6: Safety Decal Locations
SAFETY DECAL, Warning - Proposition 65 Read all warning, danger and caution decals before equipment is operated. Never use equipment if decals are missing, hidden, improperly placed, damaged or altered. Keep safety decals clean and legible. Contact Shor-Line (800.444.1579) for replacement safety decals. Shor-Line.com... -
Page 7: Section One, Pre-Assembly
While verifying the shipment contents, take a moment to inspect each component for damage. This should be done before the shipment is signed received and accepted. If damaged components are apparent, follow the instructions within Shor-Line’s Damage and Freight Procedures. -
Page 8: Component Parts List
SECTION ONE Component Parts List 40" SIDE VIEW TOP VIEW FIGURE 1.3 - Feline LS Exam Table (Blue Line Model Shown) Item Part # Description See Below Blue Line Table Top See Below Standard Table Top (Not Shown) 803.4100.11 Continuum Table Base (Hydraulic Lift) •... -
Page 9: Section Two, Assembly Procedures Installation
Foot Operated Pedal Adjustable Foot/ Scuff Pad Assembly FIGURE 2.1 - Feline LS Exam Table (Blue Line Model Shown) Feline LS Exam Table Typical table orders will arrive in two containers, one box containing the table base weighing up to 175 lbs (80 kg) and another containing the table top weighing up to 50 lbs (23 kg), weights vary. -
Page 10: Section Three, Use And Care
ABOVE FLOOR 29" ABOVE FLOOR FIGURE 3.1 - Table Top Height (Down) FIGURE 3.2 - Table Top Height (Up) CAUTION Do NOT exceed the weight limitations (250 lbs) of the table. Exceeding the weight limit may cause equipment failure. Shor-Line.com... -
Page 11: General Maintenance & Care
Shor-Line Technical Services for direction. Do NOT attempt to repair hydraulic leaks. Care Recommendations NOTICE Routine product care will extend the quality and life of Shor-Line products and aids in protecting animals from transmittable diseases and infections. It is the owners responsibility to set-up scheduled cleaning programs, depending on use of the equipment. -
Page 12: Section Four, Terms & Conditions
Shor-Line. If products are damaged, defective, shorted or appear not to conform to the order, Customer shall discontinue their use and immediately notify the carrier and Shor-Line of such condition and afford a reasonable opportunity to inspect the same. -
Page 13: Limited Warranty
SECTION FOUR Limited Warranty In the event the Customer is not fully satisfied with the quality or workmanship of a product, Shor-Line in its sole discretion may arrange either to credit Customer's account (excluding shipping and handling costs) or replace the product. -
Page 14: Contact Information
Vale of Glamorgan CF71 7PF Kansas City, Kansas 66105, USA United Kingdom PHONE: 800.444.1579 PHONE: +44 1446 77 20 41 LOCAL: 913.281.1500 FAX: +44 1446 77 36 68 FAX: 913.281.5339 EMAIL: quality@shor-line.co.uk EMAIL: guides@shor-line.com WEB ADDRESS: SHOR-LINE.co.uk WEB ADDRESS: SHOR-LINE.com Shor-Line.com …...
