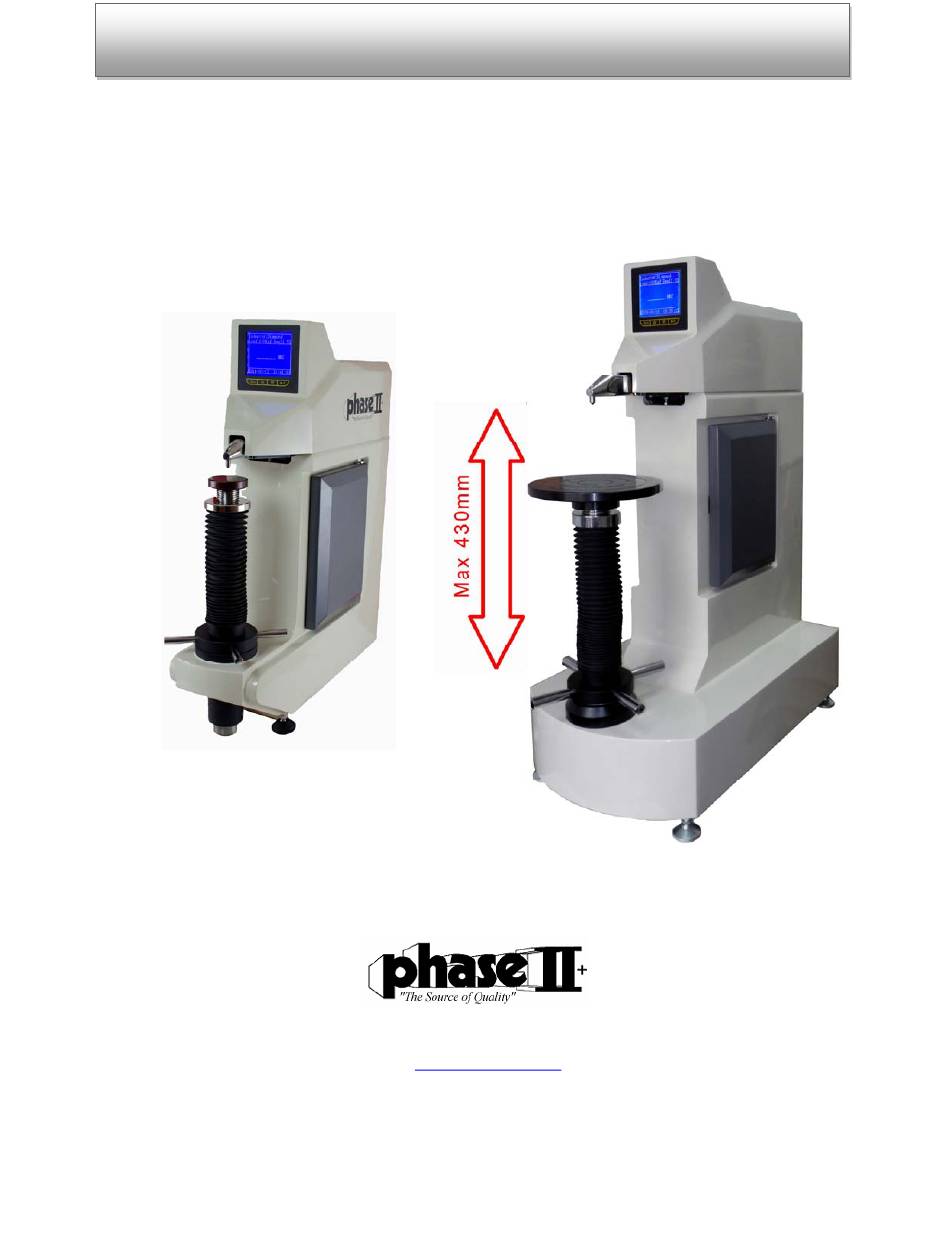

- Page 1 Model No. 900-385 Model No. 900-386 Digital Rockwell Hardness Tester Instruction Manual 21 Industrial Ave • Upper Saddle River, NJ. 07458 Tel: (201)962-7373 • Fax: (201)962-8353 E-Mail: info@phase2plus.com Web Site: http://www.phase2plus.com...
-
Page 2: Table Of Contents
Contents table General description…………………………………………………………... Scope of application………………………………………………………….. Product features………………………………………………………………. Key performance parameters………………………………………………. Basic configuration and structure…………………………………………. Standard configuration………………………………………………………. Structure schematic diagram……………………………………………….. Installation and adjustment…………………………………………………. Operating methods…………………………………………………………… Testing preparation…………………………………………………………… Test parameters setting……………………………………………………… 5.2.1 Scale selection………………………………………………………………… 5.2.2 Load dwell setting…………………………………………………………….. 5.2.3 Auxiliary functions……………………………………………………………. 5.2.4 Communication status setting………………………………………………... -
Page 3: General Description

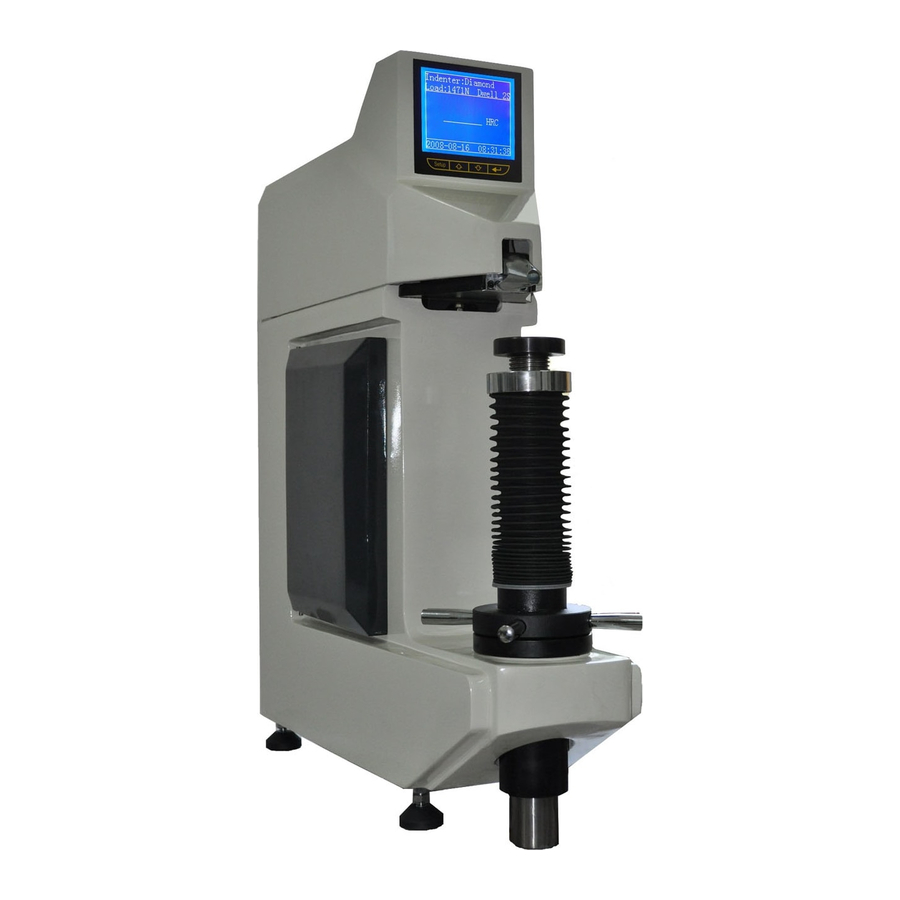

Loaded with features such as ultra precise measurements, wide measuring range, automatic main test force loading/unloading, digitally displayed results, automatic printing, RS232/USB output, etc. the 900-385/6 is suitable for testing hardness on carbon steel, alloy steel, cast iron, non ferrous metal and engineering plastics. -
Page 4: Basic Configuration And Structure
3 Basic configuration and structure 3.1 Standard configuration Base machine Standard hardness block for A scale Standard hardness block for B scale Standard hardness block for C scale Standard hardness block for 15N scale Standard hardness block for 30N scale Standard hardness block for 30T scale Carbide ball indenter (1/16″) Rockwell C 120°cone diamond indenter... -
Page 5: Installation And Adjustment
4 Installation and adjustment Remove top cover of wood crate, then remove the three M10 screws from the underside of the base. Lift the machine very carefully from the bottom. Do not lift from the head, the side doors or other points any time. Remove all accessories and the weights that are attached to the baseboard by the straps. - Page 6 Remove the screw on top of the machine that holds the canopy; Slightly lift the canopy from front; remove the canopy after removing connecting cables out; remove all elastic packaging belts from lever. Method of extracting and plugging cable is as figure 4.2. For extracting cable, part the barbs by exerting force on both sides, then the plug of cable will eject out.
- Page 7 Use adjustable feet to level the machine. Be sure to lock nuts when completed Sturdy Cabinet/Stand shown below:...
-
Page 8: Operating Methods
5 Operating methods 5.1 Testing preparation Connect power supply and turn machine on. The 900-385 will perform a self check and relative information such as type, serial number of the tester, software version will be displayed on screen. Tester will come to main menu after self-checking; current (last used) test parameters will be displayed on screen. -
Page 9: Load Dwell Setting
Figure 5.2.1 Figure 5.2.2 The selection of test force is automatically adjusted once you select your hardness scale. There are three test forces of 60kgf(588.4N), 100kgf(980.7N) and 150kgf(1471N) for Rockwell hardness measurement, and also three test forces of 15kgf(147.1N), 30kgf(294.2N) and 45kgf(441.3N) for Rockwell superficial hardness measurement. -
Page 10: Auxiliary Functions
5.2.3Auxiliary functions The tester has four auxiliary functions, which can be used individually, multi selected or all selected. Press “ ” or “ ” key to move cursor to “3” in figure 5.2.1, press “ ” key ,then the cursor move to the position of “ ”and change to “... - Page 11 Normally, the serial number will increase 1 after each measurement until the n is equal to N (i.e. all of the N measurements were completed), then begin with statistical calculation. In event of an erroneous result, press “ ”or“ ”key in the figure 5.2.7 when the “√”...
-
Page 12: Communication Status Setting
5.2.3.4 Curved surface correcting The testing results should be corrected if the surface of sample measured is the external surface of cylindrical or spherical part. Press “ ”or“ ” key to select cylindrical surface or spherical surface, then press “ ”... -
Page 13: Mode Selection Of Rockwell Or Rockwell Superficial
5.2.14. The serial number and time of the test are displayed simultaneously. The 900-385 has a maximum memory for 500 test results. Press “ ”or“ ” key to scroll the items. The item of record which the cursor pointed can be printed by press “... -
Page 14: Testing
5.3 Testing 5.3.1 The preload loading Place the sample to be tested on the anvil, and rotate the hand wheel clockwise to lift the anvil as figure 5.3.1, showing the anvil moving course. Rotate the hand wheel smoothly until the anvil in figure reaches the end position as figure 5.3.2. Immediately stop rotating once buzzer sounds. -
Page 15: Shut Down
5.4 Shut down Remove the test force completely, and switch off the power supply. Remove power cord if machine is to be idle for an extended period of time 6 Maintenance and attentions 6.1 When transporting the hardness tester, the weights and the indenter must be removed, and a shockproof rubber pad must be put between the indenter “nose”... - Page 16 Approximate Hardness Conversion Numbers for Non-Austenitic Steels Rockwell C Hardness Range Rockwell Superficial Rockwell Number Brinell Hardness Number Rockwell C Vickers 10-mm 10-mm Knoop D Scale 15-N 30-N 45-N Scleroscope 150kgf (HV) Standard Carbide 500-gf Scale 100kgf Scale Scale Scale Hardness (HRC) ball...
- Page 17 Approximate Hardness Conversion Numbers for Non-Austenitic Steels Rockwell B Hardness Range Rockwell Superficial Rockwell Number Rockwell B Vickers 10-mm Knoop F Scale 15-T Scale 30-T Scale 45-T Scale 100kgf (HV) Standard 500-gf Scale 60kgf 15-kgf 30-kgf 45-kgf (HRB) ball 60 kgf (HRF) (HR15T) (HR30T)
- Page 18 Approximate Leeb (Type D) Hardness Conversion for Non-Austenitic Steels (Rockwell C Hardness Range) A Leeb Hardness, Type D Rockwell C Hardness Vickers Hardness Brinell Hardness Impact Device (HLD) 150kgf (HRC) (HV 10) 10mm Steel Ball 3000kgf (HBS) (721) (699) (675) (654)
- Page 19 Weight - Load - Indentor Chart Scale Indentor Type Preliminary Total Typical Applications Symbol Force Force (kgf) (kgf) Spheroconical 98.07 (10) 588.4 (60) Cemented carbides, thin steel, and shallow case hardened steel Diamond 1/16” Carbide Ball 98.07 (10) 980.7 (100) Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
- Page 20 Round Correction Factors Corrections to be added to test results in the following scales for various diameter parts. Corrections to be added to Rockwell C, A and D values Diameter of Convex Cylindrical Surfaces Hardness ¼” 3/8” ½” 5/8” ¾” 7/8”...
- Page 21 Minimum Thickness Requirements Minimum allowable thickness for a corresponding hardness in the respective scales Minimum Minimum Rockwell Rockwell Rockwell Superficial Superficial Superficial Superficial Superficial Superficial Thickness Thickness Inch 0.006 0.15 … … … … … … … … … 0.008 0.20 …...
- Page 22 Main Headquarters: U.S.A Phase II Machine & Tool, Inc. 21 Industrial Ave Upper Saddle River, NJ. USA Tel: (201) 962-7373 Fax: (201) 962-8353 General E-Mail: Info@phase2plus.com BEIJING, CHINA Phase II Instruments (Beijing) Ltd. Room 301,Bldg 2,Qing Yuan Xi Li,Haidian District,Beijing 100192,China Tel:+86-10-59792409 Fax:+86-10-59814851 General E-mail:...
