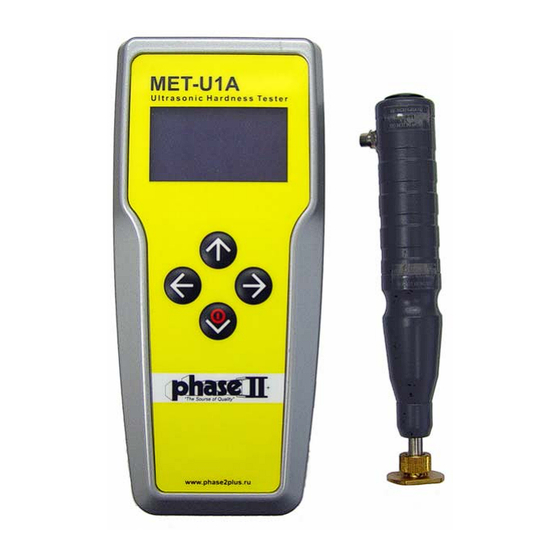

Model No's: MET - U1A & MET - UDA
Instruction Manual
Non-Destructive Hardness Tester!
IP66!
Dust/Waterproof
Protection
(201)933-6300
www.phase2plus.com
* Precision Measuring Tools * Indexing Fixtures * Workholding Fixtures *
* Hardness Testers * Ultrasonic Thickness * Surface Finish * Coating Thickness *
Advertisement
Table of Contents
Related Manuals for phase II+ MET-U1A
Summary of Contents for phase II+ MET-U1A
-

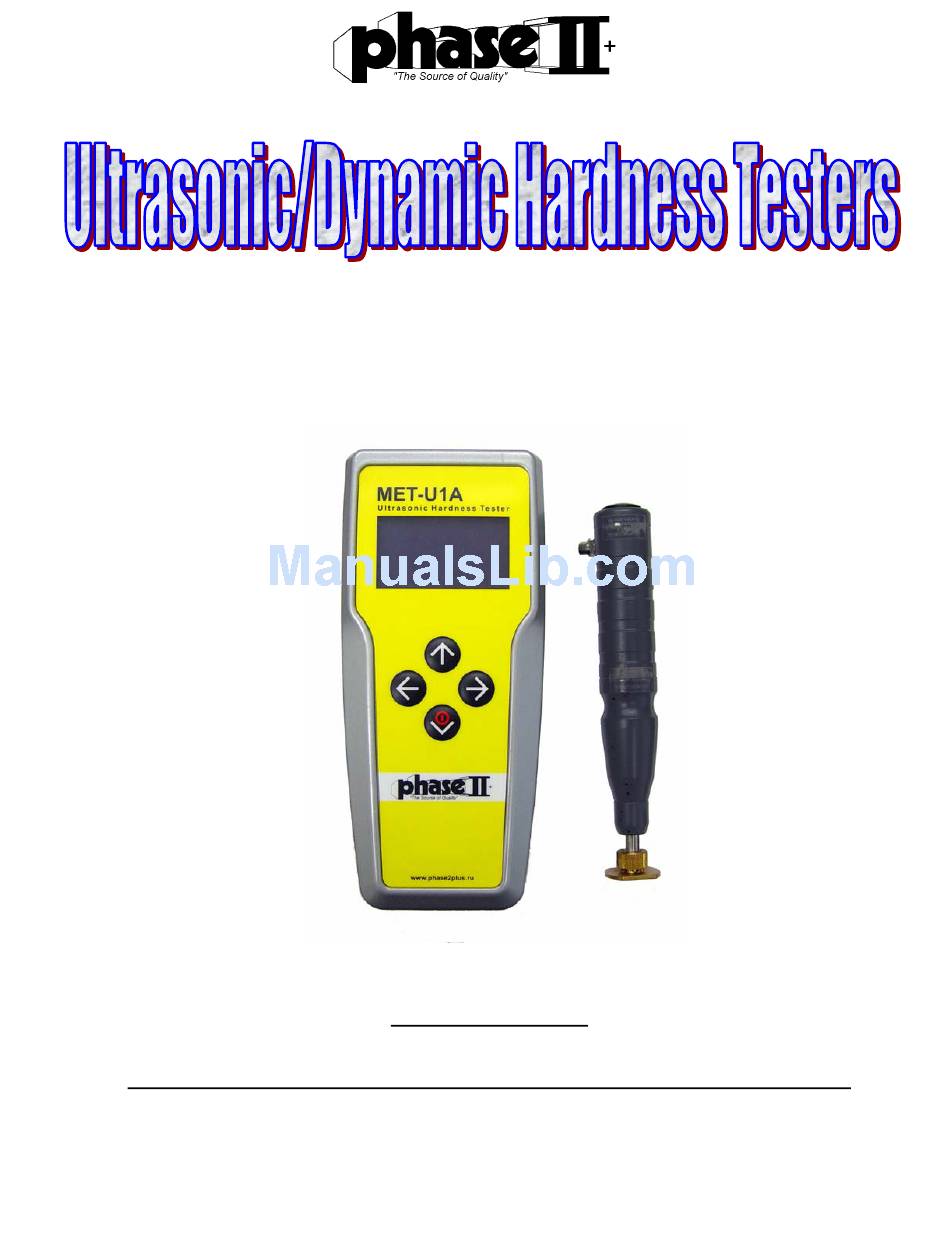

Page 1: Instruction Manual
Model No’s: MET - U1A & MET - UDA Instruction Manual Non-Destructive Hardness Tester! IP66! Dust/Waterproof Protection (201)933-6300 www.phase2plus.com * Precision Measuring Tools * Indexing Fixtures * Workholding Fixtures * * Hardness Testers * Ultrasonic Thickness * Surface Finish * Coating Thickness *... - Page 2 Dynamic Impact Device Type D Ultrasonic Transducer Dynamic Testing Method information: Ultrasonic Testing (UCI)Method information: The Leeb measuring method was first brought into UCI method Ultrasonic Contact measurement technology in 1978. It is defined as Impedance, a hardness testing method the quotient of an impact body’s rebound velocity developed by Dr.
- Page 3 Functions of the Phase II MET-U1A & UDA Hardness Testers The Phase II MET’s are state of the art, handheld hardness testers that provide high accuracy and simplicity of operation for a wide measuring range. It is suitable for testing the hardness of ordinary metals and is widely applied in many industries including the petroleum, chemical, industrial machining and electric power industries, etc.
-
Page 4: Setting Test Parameters
The MET portable hardness testers are designed to measure hardness of metals and alloys in the most popular hardness scales, such as Rockwell C (HRC), Rockwell B (HRB), Brinell (HB), Vickers (HV), and Leeb (LD). Calibration on these scales are carried out directly by Phase II prior to shipment of each unit. The MET hardness testers offer additional “open”... - Page 5 Every level of the menu allows the selection of parameters or modes of operation. • The first level – ‘scale’ – allows to choose the current (operational) hardness scale from the following: HRC, HB, HV, HLD, H1, H2 or H3. •...
- Page 6 Procedure of Operation Preparation for Operation Visual Inspection Make visual inspection of the device, making sure that there is no mechanical damage to the electronic transducer, connective cable. Surface Preparation Prepare the area of the tested surface by removing moisture, lubricants, scale, oxidation, rust, etc. The roughness of the part to be tested and radius of curvature of the tested surface and also mass and size parameters of the article shall correspond to the parameters given in the hardness tester data sheet.
-
Page 7: Display Lighting
Display Lighting Display lighting is switched on and off by pushing button from the first level in the “Scale” menu. Operation with display lighting will slightly reduce the time the device can operate on a full charge. Operation with Electronic Module Choosing parameters Power Unit on according to instructions: Scale Selection... - Page 8 View of Display (Measurement Mode) Explanation of display ‘HRC’ = Rockwell C Scale; ’58.1’ = the measured value on HRC scale; “00” is the number of tests taken to be stored in the 06 archive (as each test is taken, this number will increase from 00 to 01 to 02, etc.
- Page 9 ‘Measurement and Recording’ Operation Start ‘measurement and recording’ operation by pushing button in order to finish and go out from the ‘archive’ operation. Indication on the display is shown on the figure below. To obtain the mean value of your latest archived results, press the button.
- Page 10 Recording in the archive (starting point) The screen below shows how the display will appear when in the archive mode. As shown, the tester is in archive no.2. If this is acceptable, you should press the button to proceed to measurement mode and begin testing.
-
Page 11: Calibration Procedures
Calibration Procedures Special Code Required to Perform this Procedure! This procedure should be performed by highly skilled personnel only! If you are experiencing erratic results with your MET, you should contact Phase II and arrange for an inspection prior to making any changes. - Page 12 ‘Calibration’ Operation Select the scale you wish to calibrate the hardness tester in and press the button to enter next mode. The display will be blinking “Test”. Press the button to enter into ‘Calibration’ mode. Press the button and the display will ask you for your code. Enter the code and then push the button The display indication in the ‘Calibration’...
- Page 13 Measurement on reference hardness block N 2 (step 3) –repeat the actions described in the previous paragraph. Correction (step 4) –Repeat the actions described in step 2. When you have completed the correction, press the button to complete and save the new calibration. Pushing the button will lead to the completion of the steps and going out from ‘Calibration’...
- Page 14 ‘Processing’ Mode ‘Processing’ mode and all operations within this mode shall be conducted separately for U1 ultrasonic transducer and D1 dynamic transducer. Within this mode the listed below operations can be carried out: • compute mean value; • clear archive Select the scale.
- Page 15 Setting the limits for sample mean value computation: • Push button to move < or > sign to the left initial (>02) and the right (<08) number of the sample limits by one; • Every push of button will decrease or increase the left (>01) and the right (<07) number of the sample limits by one.
- Page 16 • Gently press straight down on the transducer body slightly until the diamond pyramid makes initial contact with the surface of your part. Using a little more force, increase the downward pressure . (The Blinking Transducer light will now immediately until the diamond pyramid is forced into the surface stay on constantly showing that you are making a good connection to the part) The effort should be made smoothly.
-
Page 17: Measuring Procedure
The First Measurement • Blinking of ‘transducer’ symbol on the display means that the hardness tester is ready to conduct measurements. Measuring Procedure Use the supplied Leeb test block to check your hardness tester prior to your own testing applications. Loading the impact device Press down the loading tube to lock the impact body. - Page 18 Start to Test Gently press the release button on top of the impact device while the work piece, the impact device and the impact body are all stable and the starting force coincides with the axis of the impact device ←...
-
Page 19: Maintenance And Repair
Battery Replacement: • Remove two rubber plugs on the back side Bottom half of the MET-U1A. Use the supplied hex wrench to loosen the two hex screws. Lift the metal battery cover off to expose the 4-AA batteries. It is recommended that you replace the batteries with a high quality NiMh set of rechargeable batteries. - Page 20 UCI- Ultrasonic Contact Impedance Method Terminology: Definitions: UCI Method UCI method Ultrasonic Contact Impedance, a hardness testing method developed by Dr. Claus Kleesattel in 1961 based on the measurement of the frequency shift of a resonating rod caused by the essentially elastic nature of a of the finite area of contact between the indenter and the test piece during the penetration.
-
Page 21: Leeb Hardness Test (Definition)
Leeb Measuring Method – (For MET-UD only) History The Leeb measuring method was first brought into measurement technology in 1978. It is defined as the quotient of an impact body’s rebound velocity over its impact velocity, multiplied by 1000. Harder materials produce a higher rebound velocity than softer materials. -
Page 22: Troubleshooting Chart
Trouble Shooting Chart: Problem Reason Solution The battery is discharged Charge or replace Display does not switch on The battery is not installed correctly Reinstall, observe the indicated polarity There is no contact in the connector of the transducer with Check the connection reliability the electronic module Readings on the display do not change... - Page 23 ASTM Hardness Round Correction Factors Corrections to be added to test results in the following scales for various diameter parts Corrections to be added to Rockwell C, A, and D values Hardness Diameter of Convex Cylindrical Surfaces Reading 1/4 inc 3/8 in 1/2 in 5/8 in...
- Page 24 ASTM Hardness Conversion Chart Rockwell C Hardness Range Approximate Hardness Conversion Numbers for Non-Austenitic Steels, According to ASTM E-140 The Conversion Values contained herein should be considered approximate only and may be inaccurate for specific applications Vickers Knoop Brinell Tensile 150 kgt 60 kgt 100kgt...
- Page 25 ASTM Hardness Conversion Chart Rockwell B Hardness Range Approximate Hardness Conversion Numbers for Non-Austenitic Steels, according to ASTM E-140 The conversion values contained herein should be considered approximate only and may be inaccurate for Specific applications. Rockwell Superficial Rockwell Vickers Knoop Brinell Tensile Brinelll...
- Page 26 34.1 85.5 76.2 48.3 20.7 33.7 75.9 47.7 19.7 33.3 84.6 76.6 47.0 18.7 32.9 76.3 46.3 17.7 32.4 83.5 74.9 45.7 16.7 32.0 82.5 74.6 45.0 15.7 31.6 74.3 44.3 14.7 31.2 81.5 74.0 43.7 13.6 30.7 73.6 43.0 12.6 30.3 73.3...
- Page 27 It is highly recommended that you contact us as soon as you receive your MET. We will get you up and running in minutes. Your MET-U1A has been Opened, Inspected and Calibrated to perform at Optimum Accuracy and Repeatability. If you have any questions, please call Tech Support.
- Page 28 Main Headquarters: U.S.A Phase II Machine & Tool, Inc. 283 Veterans Blvd Carlstadt, NJ. 07072 USA Tel: (201) 933-6300 Fax: (201) 933-3801 General E-Mail: phase2@comcast.net BEIJING, CHINA Phase II Measuring Instruments (Beijing) Ltd. Room 1204,Bldg 13,Yong Tai Yuan,Qing He,Haidian District, Beijing 100192,China Tel:+86-10-82752121 Fax:+86-10-82750352 General E-mail:...
