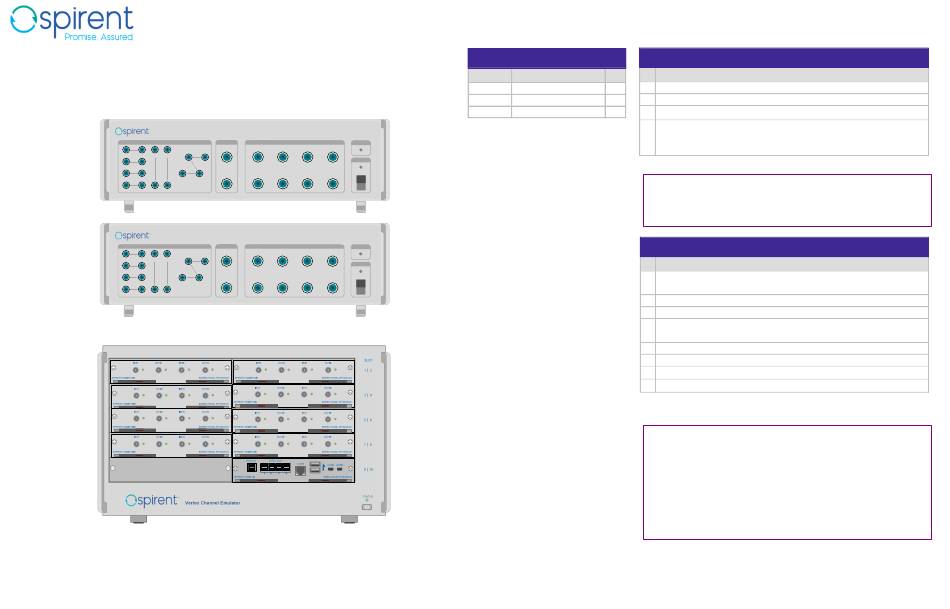

Spirent Setup Guide:
Multilink Duplexing Test System - Vertex
Equipment Layout
XD5
MULTILINK DUPLEXER
CONFIGURATION
U1
U2
Q1
Q2
U3
U4
U5
U6
Z3
U7
U8
Q3
Q4
XD5
MULTILINK DUPLEXER
CONFIGURATION
U1
U2
Q1
Q2
U3
U4
U5
U6
Z3
U7
U8
Q3
Q4
+1 800-SPIRENT – www.spirent.com
STATUS
X1
M1
M2
M3
M4
Z1
Z2
POWER
X2
M5
M6
M7
M8
Z4
I
O
STATUS
X1
M1
M2
M3
M4
Z2
Z1
POWER
X2
M5
M6
M7
M8
Z4
I
O
System Components
Vendor
Model #
Spirent
Vertex
Spirent
XD5-A
Spirent
XD5-B
Page 1 of 11
Assembly Procedure
Qty
Instruction
1
1 Ensure the AC power cords are NOT connected to wall outlets.
1
2 Ensure the XD5s are configured as XD5-A and XD5-B.
1
3 Connect the cables by following the instructions on the following pages.
4 After the cables are connected, power up the equipment according to
the instructions provided in the "Applying Power to the System" table
below.
ATTENTION!
Perform the following procedure after you have
completed all cable routing.
Applying Power to the System
Instruction
1 Make sure the loopback cable is connected on the rear panel of the
Vertex instrument.
2 Connect the AC power cords to all instruments.
3 Plug the AC power cords into the wall outlet.
Plug the Vertex instrument directly into the wall outlet on an individual
4
branch circuit.
5 Switch on the Vertex instrument.
6 Switch on XD5-A.
7 Switch on XD5-B.
8 Ensure each instrument powers up properly.
NOTE:
If only one XD5 is in use, it must be configured as an XD5‐A
unit. If two XD5s are in use by one Vertex, those units must be
configured as XD5‐A and XD5‐B respectively.
Connecting two XD5s of similar name type assignment to a
single Vertex will cause IP conflict problems. To reconfigure
the XD5's type, you must use the Vertex GUI. See the Vertex
user manual for more information.
Information subject to change.
71-008027 Ver. A3
