Summary of Contents for Furniture of America HFW-1861C2

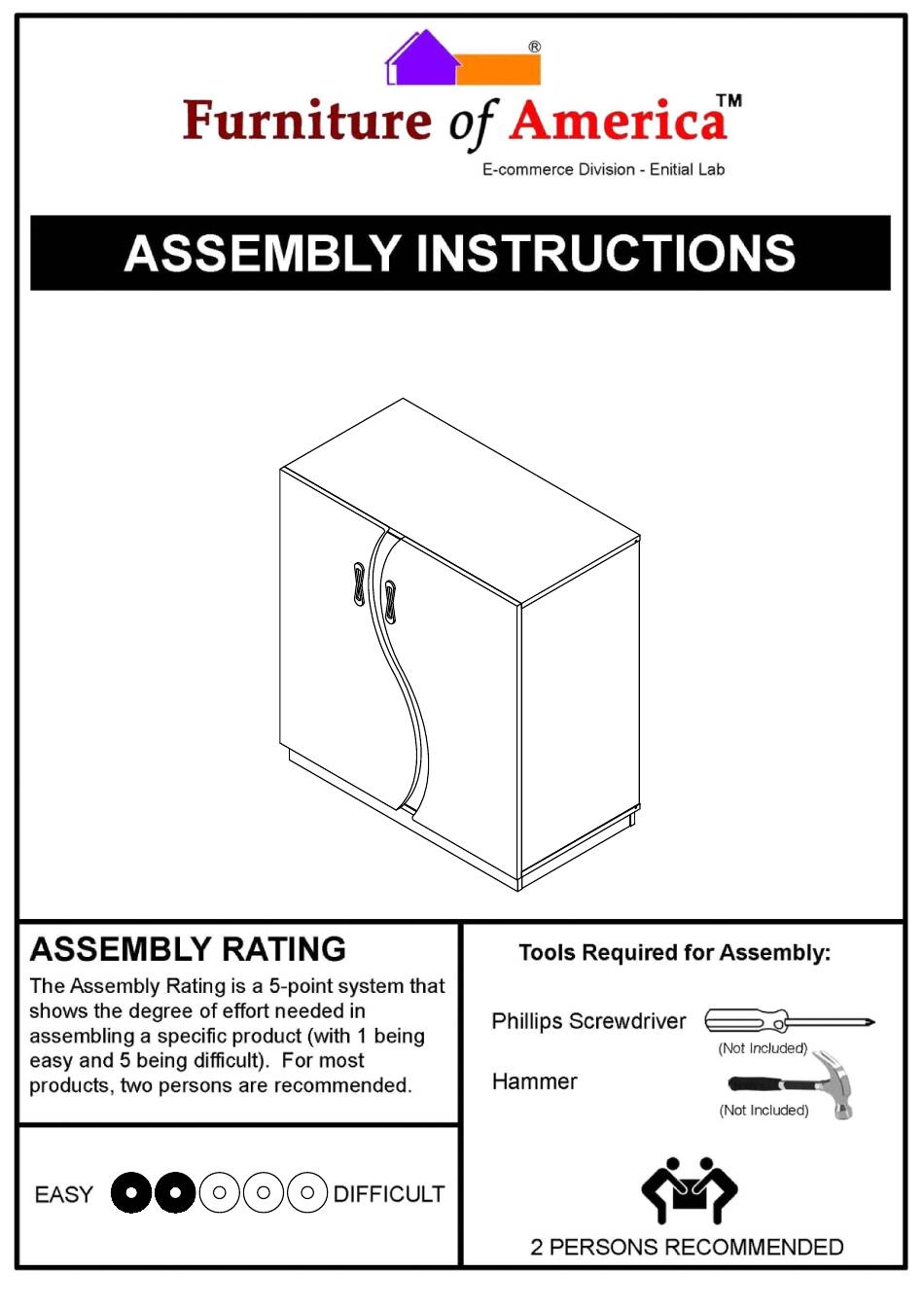

- Page 1 HFW-1861C2 Page 1 of 14 REV.18-01-10...
- Page 2 Page 2 of 14...
- Page 3 Page 3 of 14...
- Page 4 Page 4 of 14...
- Page 5 CAM LOCK FASTENER ASSEMBLY INSTRUCTIONS Page 5 of 14...
-
Page 6: Parts List
SHOE CABINET ASSEMBLY INSTRUCTIONS MODEL # HFW-1861C2 please keep for future reference PARTS LIST 2PCS 2PCS DIMENSIONS : 31.5"(W)*16.3"(D)*33.4"(H) 2PCS 2PCS HARDWARE LIST 1 16PCS 2 16PCS 2PCS 4 21PCS 5 1PC 6 5PCS (8x20) (8x30) 1.0" 7 6PCS 8 12PCS... - Page 7 SHOE CABINET MODEL#HFW-1861C2 Get Ready. Please group boards as below. 2PCS Body 2PCS 2PCS Base 2PCS Doors/Shelf Page 7 of 14...
- Page 8 ASSEMBLY INSTRUCTIONS STEP : 1 Hardware 1 x 16 pcs Hardware 4 x 21 pcs (8X30) Use larger dowels (#4) on step 1. Page 8 of 14...
- Page 9 ASSEMBLY INSTRUCTIONS STEP : 2 Use a dab of glue into dowel holes before inserting dowels on the following panels in the diagram. Hardware 2 x 3 pcs finish finish finish Refer to page 5 on how to secure cam locks (#2) onto cam bolts (#1).
- Page 10 ASSEMBLY INSTRUCTIONS STEP : 4 Hardware 7 x 6 pcs Use longer screws (#7) on steps (#4). 1.6" 1.0" Grooves on panel (#B). STEP : 5 Hardware 2 x 4 pcs Attach panels (#M) to panels (#N) together, then attach and secure them to the bottom of the product as shown in the diagram.
- Page 11 ASSEMBLY INSTRUCTIONS STEP : 6 Hardware 14 x 6 pcs Tap floor protectors (#14) to the bottom of the product by using a hammer. STEP : 7 Hardware 2 x 6 pcs Align and insert back panels (#O,P) to the grooves of the product. Make sure the back panels (#O,P) are fully flushed within the grooves of the product.
- Page 12 ASSEMBLY INSTRUCTIONS STEP : 8 Hardware 8 x 12 pcs Insert shelf pins (#8) to the desired height of the shelves (#H,I). finish STEP : 9 Hardware 3 x 2 pcs (8X20) Hardware 6 x 5 pcs Hardware 9 x 4 sets Hardware 10 x 2 sets Hardware 13 x 4 pcs 8x20...
- Page 13 ASSEMBLY INSTRUCTIONS STEP : 10 Hardware 9 x 4 sets Please refer to last page for hinge adjustment. For safety reason, this item has been supplied with wall straps. We highly STEP : 11 recommend securing the item to the Hardware 11 x 8 sets wall using the supplied hardware Hardware 12 x 2 sets...
- Page 14 Page 14 of 14...
