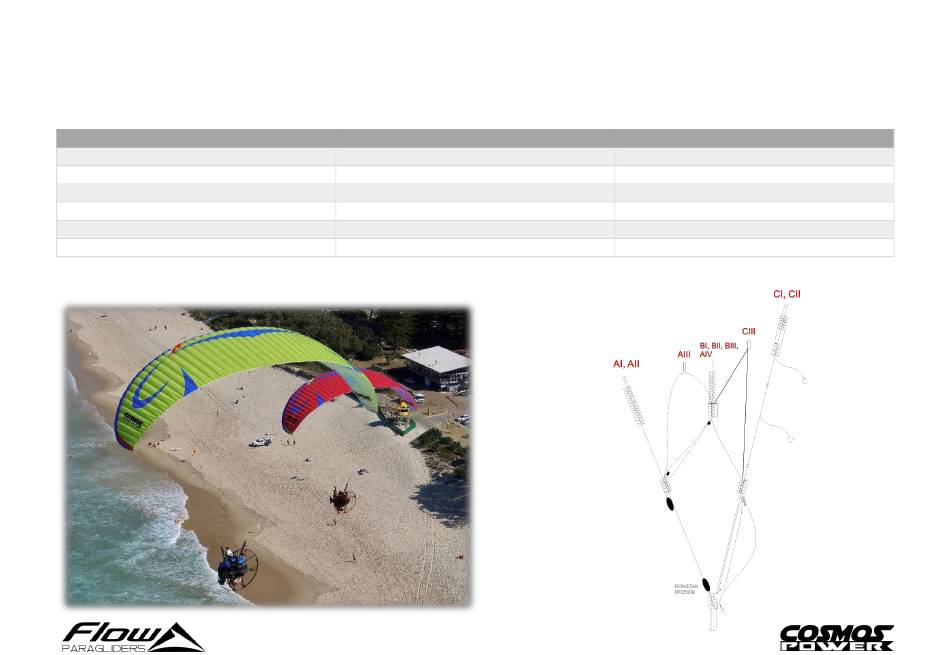

17. RISER DIAGRAM
Sizes 19, 22, 24 and 26
TRIM SPEED (trimmers closed)
A = 500mm
A1 = 500mm
B = 500mm
C1 =500mm
C2 = 500mm
D = 500mm
*Difference should not be more than +/- 5mm
FAST (trimmers fully open)
A = 500mm
A1 = 510mm
B = 540mm
C1 =555mm
C2 = 585mm
D = 625mm
SUPER FAST (trimmers open and full speed)
A = 415mm
A1 = 440mm
B = 505mm
C1 =540mm
C2 = 590mm
D = 680mm
29
