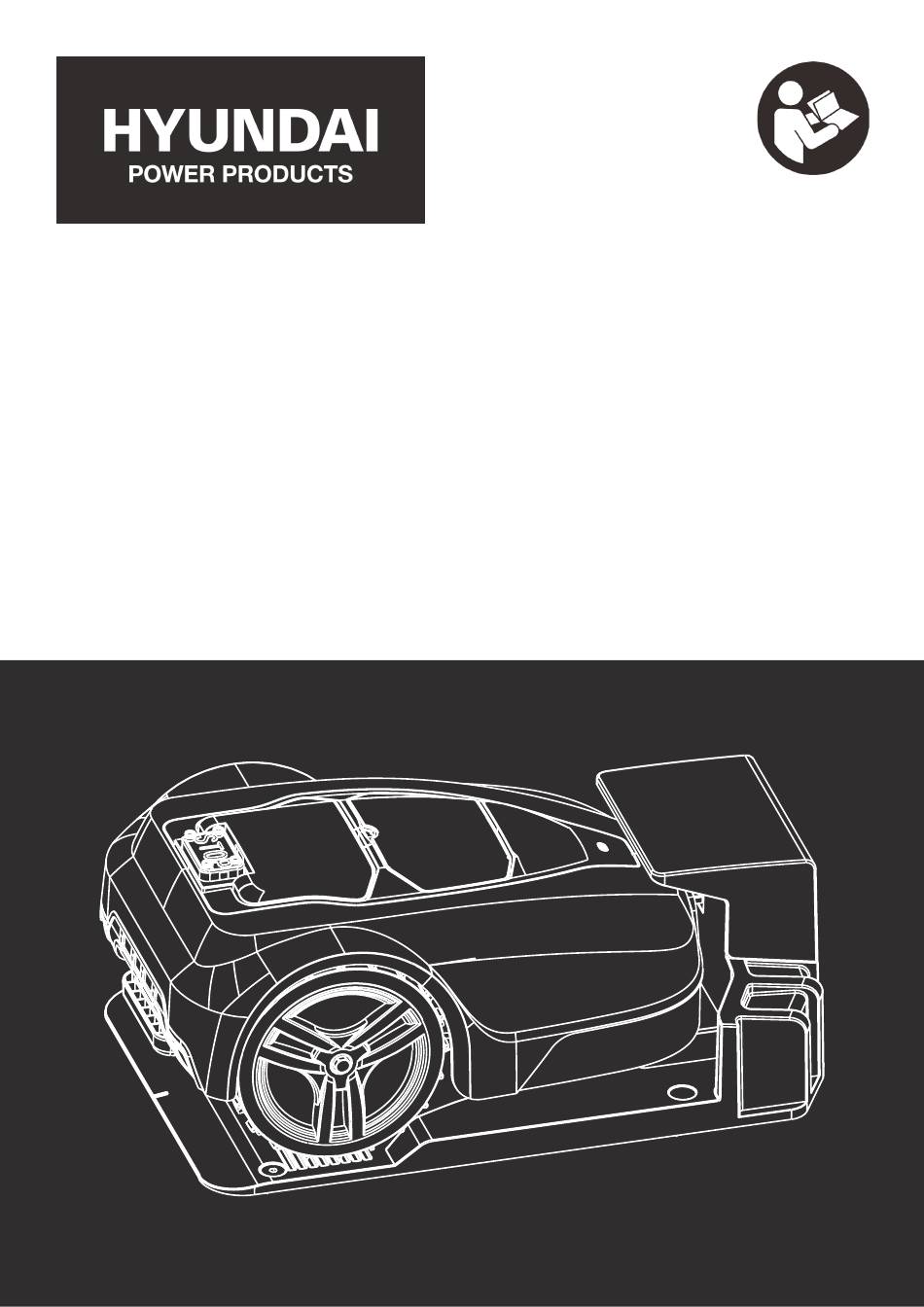

- Page 1 ROBOT LAWNMOWER HYRM1000 Instruction Manual...
- Page 2 We would be delighted if you left us positive feedback! Thank you for purchasing this product. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. Failure to do this may result in personal injury or damage to the product.
-
Page 3: Table Of Contents
Contents Important Information............4 Lawn Setup.............21-33 Set Mowing Pattern.........31 Symbols On The Machine..........5 Set Edge Cutting..........31 General Safety............6-11 Set Spiral Cutting..........32 Understand Your Machine.........6 Manual Mode Setting........32 Operating In Auto Mode........32 Personal Safety..........6-7 Inspect Your Machine........7 Auto Mode Operation........32 Work Area............8 Operating In Manual Mode......32 Manual Mode Operation........33 During Use.............8-9... -
Page 4: Important Information
Important Information As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information. The model number and serial number can be found on the grey specification sticker on the machine. -
Page 5: Symbols On The Machine
Symbols On The Machine These symbols represent important information about the product or instructions on its use. CAUTION! DANGER! Handle carefully. Ignoring the Do not use sharp tools to clean safety signs and warnings applied mower. on the machine as well as ignoring the security and operating instructions can cause serious DANGER! -
Page 6: General Safety
General Safety WARNING : READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE USING THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. Personal Safety Understand Your Machine • WARNING! You must read these •... -
Page 7: Inspect Your Machine
General Safety • Always keep hands and feet away from all • Avoid accidental starting. Be sure the pinch points. machine is off before transporting the machine or performing any maintenance or service on • Do not touch parts that might be hot the unit. -
Page 8: Work Area
General Safety Work Area • Do not work in the rain and when there is a thunderstorm or lightning risk. If there is bad • Make sure you thoroughly inspect the entire weather conditions, do not use the machine. work area and remove all objects and anything that could be thrown by the machine or could •... -
Page 9: Electrical Safety
General Safety Electrical Safety (Where • The robot lawnmower must never be allowed to collide with people or other living Applicable) beings. If a person or other living being comes into the path of the robot lawnmower, the lawnmower must be stopped immediately. DANGER! ELECTRICITY CAN KILL –... -
Page 10: Vibrations
General Safety Vibrations (Where Noise (Where Applicable) Applicable) • The operating noise of the machine can damage your hearing. Wear hearing protection • Prolonged use of hand held (operated) such as earplugs or ear defenders to protect machines will cause the user to feel the effects your hearing. -
Page 11: Personal Protective Equipment
General Safety Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. HAND PROTECTION MUST BE WORN Protective electrically non-conductive gloves are highly recommended when working. FOOT PROTECTION MUST BE WORN Non-skid heavy duty footwear are highly recommended when working. -
Page 12: Getting Started
Description persons and/or damage things. Examples of The HYRM1000 is a robotic lawn mower from improper use may include, but are not limited HYUNDAI. The HYRM1000 has a cutting width of 180mm / 18cm and is powered by - transporting people, children or animals on a rechargeable battery. - Page 13 Getting Started • When the rain is too heavy, the mower will stop working and go to the station. • If the slope is more than 30°, the mower will stop and the mowing motor will stop in one second. •...
- Page 14 Getting Started Mowing Pattern The mower’s movement pattern has four modes: random, zig-zag, edge and spiral. These patterns can be set by the display. If the mower enters an area where it senses the grass is high and dense, it will lower the mowing speed.
-
Page 15: Assembly Safety
Prior to damaged or missing, you must not use the assembly, check all items have been received. machine. Contact HYUNDAI Power Products immediately. You must keep the packaging material in case the machine needs to be returned or repaired. -
Page 16: Unboxing
Unboxing Contents 3. Boundary Wire Laid in a loop around mower’s working area. The boundary wire is laid around the edges of 1. Lawnmower the lawn and around objects and plants, so An automatic lawnmower that mows the lawn the mower stays within the boundary. The wire by moving in an irregular pattern or zig-zag is also used for guiding the mower to the dock pattern. - Page 17 Unboxing...
- Page 18 Unboxing 15 - Charging connector 1 - Emergency button 16 - Indicator light 2 - Control panel cover 3 - Height adjuster cover 17 - Power connector 18 - Boundary connector 4 - Rain sensor 19 - Dock station base 5 - Charging socket 20 - Operator’s manual 6 - Front wheel...
-
Page 19: Assembly
Assembly Preparations Dock Station Installation Before installation, we recommend doing a STEP 1 sketch of the working area, including all obstacles. This makes it easier to see the ideal Select position of the dock station. positions for the dock station and boundary wire. -
Page 20: Connecting The Dock Station
Assembly STEP 6 STEP 10 The low voltage cable (from transformer to Make sure the dock station entrance is charging station) may cross the working area. pointing in a counter-clockwise direction. To It must be either pegged down or buried. In allow the mower to travel back to its base in a some cases there is a better positioning clockwise direction for battery charging. -
Page 21: Charging The Battery
Assembly & Installation Charging The Battery STEP 4 The mower is supplied with a partially charged The boundary wire should be laid 35cm from battery. As soon as the dock station is the area edge, obstacle, fence, flower bed etc. connected, you can charge the battery. - Page 22 Installation Max. • Use a wooden hammer to knock the pegs in the ground. Take care when hammering pegs and make sure the wire is flat on the lawn; the distance between pegs should be approximately 100cm. At corners, the distance between pegs should be 30-50cm. •...
- Page 23 Installation...
-
Page 24: Obstacle Instruction
Installation Obstacle Instruction • Big trees, poles, flower beds, etc can be an obstacle for the mower and prevent you burying the boundary wire. • If flowers should not be mowed, use the boundary wire to protect them. • A big tree with roots that can be an obstacle for the mower should be protected by burying the boundary wire. -
Page 25: Connecting The Boundary Wire
Installation... -
Page 26: Checking The Installation
Installation Checking The Installation Verify the loop signal by checking the LED indicator on the dock station. Flashing blue and red light = Good boundary wire circuit. Continuous red light = Boundary cable circuit is broken. Flashing red light = Charging station faulty. Linking The Mower To The Charging Station STEP 1... -
Page 27: Using The Lawnmower
Using The Lawnmower Wake-Up An Uncharged STEP 6 Battery Press MENU/OK button. When the lawn mower is new or has been STEP 7 stored for a long period, the battery must be charged before starting. Charging takes Close control panel cover. The mowing approximately 2 hours. -
Page 28: Adjusting Cutting Height
Using The Lawnmower Adjusting The Cutting Height Control Panel The cutting height can be adjusted from MIN. • Use the control panel for all commands and (2.5cm) to MAX. (5.5cm). If the grass is long it settings. All functions are accessed via a is appropriate to let the mower start mowing number of menus. -
Page 29: Select Button
Using The Lawnmower Select Button Function Buttons Start mower. Please follow up the LCD Return: display information to start the mower. Press to go back one step in the menu structure, or to interrupt an ongoing input. Via this button, you may set work mode of the mower. -
Page 30: Work Timer
Work Timer Work Timer Work Timer > Mower Startpoints > Set Startpoint Press yes to enter into this interface, then You can set the work day and work time for enter the startpoint length and angle. the lawn mower to operate. You can set two Use the arrow key to select startpoint 1/2/3, schedules in one day. -
Page 31: Lawn Setup
Lawn Setup Set Mowing Pattern Set Edge Cutting Home Screen > Lawn Setup > Auto Mode Home Screen > Lawn Setup > Auto Mode Setting > Mowing Pattern > Random, Zig- Setting > Edge Cutting Zag, Mixed With this function, the mower will mow along Random: Used for mowing narrow areas, the boundary wire from Monday to Sunday. -
Page 32: Set Spiral Cutting
Lawn Setup Set Spiral Cutting AUTO Mode Operation Home Screen > Lawn Setup > Auto Mode These instructions can be used to operate the Setting > Spiral Cutting lawn mower at the time scheduled and startpoint settled for the auto mode settings. After setting this function, the lawn mower Make sure to press the STOP button before could focus on mowing the area where the... -
Page 33: Manual Mode Operation
Lawn Setup Manual Mode Operation STEP 1 Press the OK button. STEP 2 If the (Man) is displayed on the home screen, go to step 3. If the auto is displayed on the home screen, press the HOME button and select (Man) by arrow button, then press OK. -
Page 34: Diagnostics
Diagnostics Check Signal Mowing Motor Test Home Screen > Diagnostics > Check Signal Home Screen > Diagnostics > Test Start Mowing Motor You can check the boundary signal status. ATTENTION - Before you test the mowing motor, we must make sure there is no obstacle at the bottom of the machine. -
Page 35: System Setting
System Setting STEP 1 STEP 3 Select a point from 1 to 3 which you want to Enter new password, input new password test and press the ‘OK’ button. again, press OK button. It will show the setting STEP 2 is ok. -
Page 36: Full Menu Diagram
Full Menu Diagram... -
Page 37: Mowing Startpoints
Mowing Startpoints You can set the mowing startpoints for each day of week. For example, if you set the following 3 startpoints on your lawn, the lawn mower can reach other areas through narrow passages and mow your lawn effectively. By setting the startpoints for each day of the week, you can mow your lawn effectively. -
Page 38: Maintenance & Care
Maintenance & Care Daily Maintenance CAUTION - The lawnmower will remain hot for a while after use. Ensure the machine has cooled before carrying out any IMPORTANT - Routine and accurate maintenance or storage. maintenance is essential for maintaining original machine safety and performance WARNING - Whilst cleaning or doing maintenance work, you need to wear proper levels. -
Page 39: Cleaning
Maintenance & Care Cleaning Blade Replacement STEP 1 CAUTION - DO NOT use a hose pipe or pressure washer to clean the machine. Water Power off the mower and make sure you are can cause damage. wearing protective gloves. STEP 2 Do not use strong detergents or Turn mower upside down. -
Page 40: Winter Storage
Maintenance & Care Winter Storage Transportation 1. Mower must be carefully cleaned before 1. Power off the mower if you intend to carry winter storage. Charge the battery fully before winter storage. 2. Carry by the handle at the rear under the 2. -
Page 41: Specification
Specifications Model HYRM1000 Battery Li-ion battery 22.2V / 2500mAH 55.5Wh Adapter 29.4V / 2.0A @ 100~240V Boundary Wire Length 100m Blade Motor Brushless DC Motor Blade Motor Speed 3200~3500rpm Wheel Motor Brushless DC Motor Bump Sensor Rain Sensor Lift Sensor... -
Page 42: Recycling And Disposal
Recycling & Disposal Recycling And Disposal This symbol means you should ‘Reduce - Reuse - Recycle’ We do not offer a takeback scheme for the recovery of We are a Member of the VALPAK Waste Electrical Electronic National Compliance Scheme and our Equipment (WEEE) &... -
Page 43: Our Product Range
Our Product Range Generators Mini Dumpers Leisure Inverter, Petrol, Diesel And Built-In 4-Wheel Drive Mini Dumper / Power Barrow Motorhome Generators Yard Sweeper Pressure Washers Self Propelled Yard Sweeper Power Brush Petrol, Diesel And Electric Pressure Washers Water Pumps Scarifiers Submersible, Clean And Dirty Water And Petrol Lawn Scarifier And Aerator Professional Chemical Water Pumps... -
Page 44: Useful Information
Register your warranty within 30 days of purchase at: To leave a review, please go to: www.hyundaipowerproducts.co.uk/warranty uk.trustpilot.com/review/hyundaipowerequipment.co.uk Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS Ordering Spare Parts website: www.hyundaipowerproducts.co.uk Only use original spare parts: The Manual Updates... -
Page 45: Notes
Notes... -
Page 46: Contact Us
Need Help? Talk To Our Experts Contact Us Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687880, open Monday-Friday 8.30am-5pm. Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Live chat is open Monday-Friday from 8.30am-5pm. Post Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. -
Page 47: Declaration Of Conformity
• EN 62233:2008 • EN 55014-1:2017, EN55014-2:2015, EN61000-3-2:2014, EB61000-3-3:2013 Product Details Brand: Hyundai Model: HYRM1000 Description: Robotic Lawn Mower Name and address of technical documentation holder and EU distributor: Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. Signed by:... - Page 48 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
Need help?
Do you have a question about the HYRM1000 and is the answer not in the manual?
Questions and answers

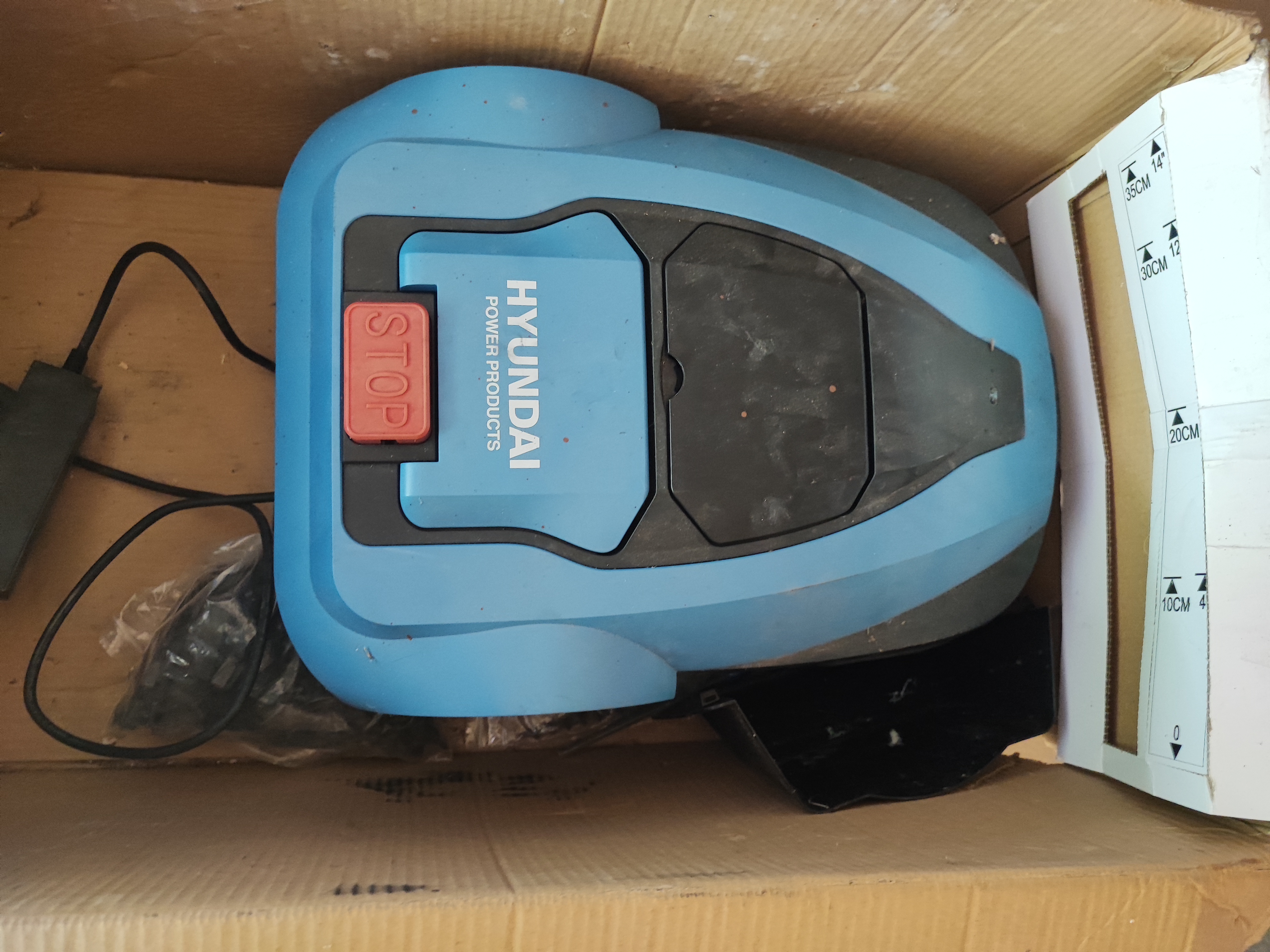

Good afternoon. Hyundai HYRM1000 I was given this unit, but I don't know the password for it, what do I need to do to make it work.
