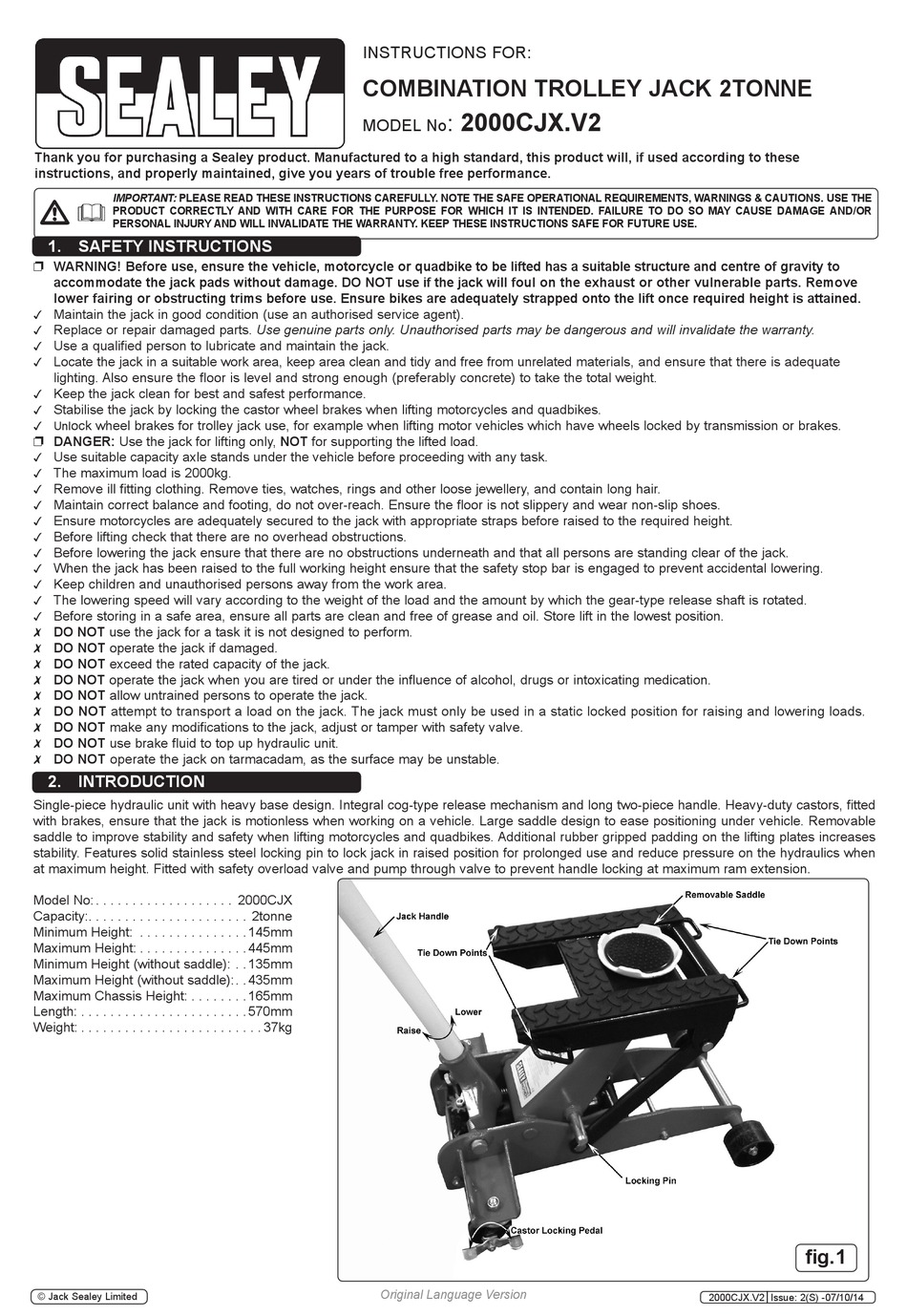

Sealey 2000CJX.V2 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE
PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
 WARNING! Before use, ensure the vehicle, motorcycle or quadbike to be lifted has a suitable structure and centre of gravity to
accommodate the jack pads without damage. DO NOT use if the jack will foul on the exhaust or other vulnerable parts. Remove
lower fairing or obstructing trims before use. Ensure bikes are adequately strapped onto the lift once required height is attained.
Maintain the jack in good condition (use an authorised service agent).

Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.

Use a qualified person to lubricate and maintain the jack.

Locate the jack in a suitable work area, keep area clean and tidy and free from unrelated materials, and ensure that there is adequate

lighting. Also ensure the floor is level and strong enough (preferably concrete) to take the total weight.
Keep the jack clean for best and safest performance.

Stabilise the jack by locking the castor wheel brakes when lifting motorcycles and quadbikes.

ock wheel brakes for trolley jack use, for example when lifting motor vehicles which have wheels locked by transmission or brakes
 Unl
 DANGER: Use the jack for lifting only, NOT for supporting the lifted load.
Use suitable capacity axle stands under the vehicle before proceeding with any task.

The maximum load is 2000kg.

Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery, and contain long hair.

Maintain correct balance and footing, do not over-reach. Ensure the floor is not slippery and wear non-slip shoes.

Ensure motorcycles are adequately secured to the jack with appropriate straps before raised to the required height.

Before lifting check that there are no overhead obstructions.

Before lowering the jack ensure that there are no obstructions underneath and that all persons are standing clear of the jack.

When the jack has been raised to the full working height ensure that the safety stop bar is engaged to prevent accidental lowering.

Keep children and unauthorised persons away from the work area.

The lowering speed will vary according to the weight of the load and the amount by which the gear-type release shaft is rotated.

Before storing in a safe area, ensure all parts are clean and free of grease and oil. Store lift in the lowest position.

 DO NOT use the jack for a task it is not designed to perform.
 DO NOT operate the jack if damaged.
 DO NOT exceed the rated capacity of the jack.
 DO NOT operate the jack when you are tired or under the influence of alcohol, drugs or intoxicating medication.
 DO NOT allow untrained persons to operate the jack.
 DO NOT attempt to transport a load on the jack. The jack must only be used in a static locked position for raising and lowering loads.
 DO NOT make any modifications to the jack, adjust or tamper with safety valve.
 DO NOT use brake fluid to top up hydraulic unit.
 DO NOT operate the jack on tarmacadam, as the surface may be unstable.
2. INTRODUCTION
Single-piece hydraulic unit with heavy base design. Integral cog-type release mechanism and long two-piece handle. Heavy-duty castors, fitted
with brakes, ensure that the jack is motionless when working on a vehicle. Large saddle design to ease positioning under vehicle. Removable
saddle to improve stability and safety when lifting motorcycles and quadbikes. Additional rubber gripped padding on the lifting plates increases
stability. Features solid stainless steel locking pin to lock jack in raised position for prolonged use and reduce pressure on the hydraulics when
at maximum height. Fitted with safety overload valve and pump through valve to prevent handle locking at maximum ram extension.
Model No: . . . . . . . . . . . . . . . . . . . 2000CJX
Capacity:. . . . . . . . . . . . . . . . . . . . . . 2tonne
Minimum Height: . . . . . . . . . . . . . . . 145mm
Maximum Height: . . . . . . . . . . . . . . . 445mm
Minimum Height (without saddle): . . 135mm
Maximum Height (without saddle):. . 435mm
Maximum Chassis Height: . . . . . . . . 165mm
Length: . . . . . . . . . . . . . . . . . . . . . . . 570mm
Weight: . . . . . . . . . . . . . . . . . . . . . . . . . 37kg
© Jack Sealey Limited
INSTRUCTIONS FOR:
COMBINATION TROLLEY JACK 2TONNE
2000CJX.V2
:
MODEL No
Original Language Version
.
fig.1
2000CJX.V2 Issue: 2(S) -07/10/14
