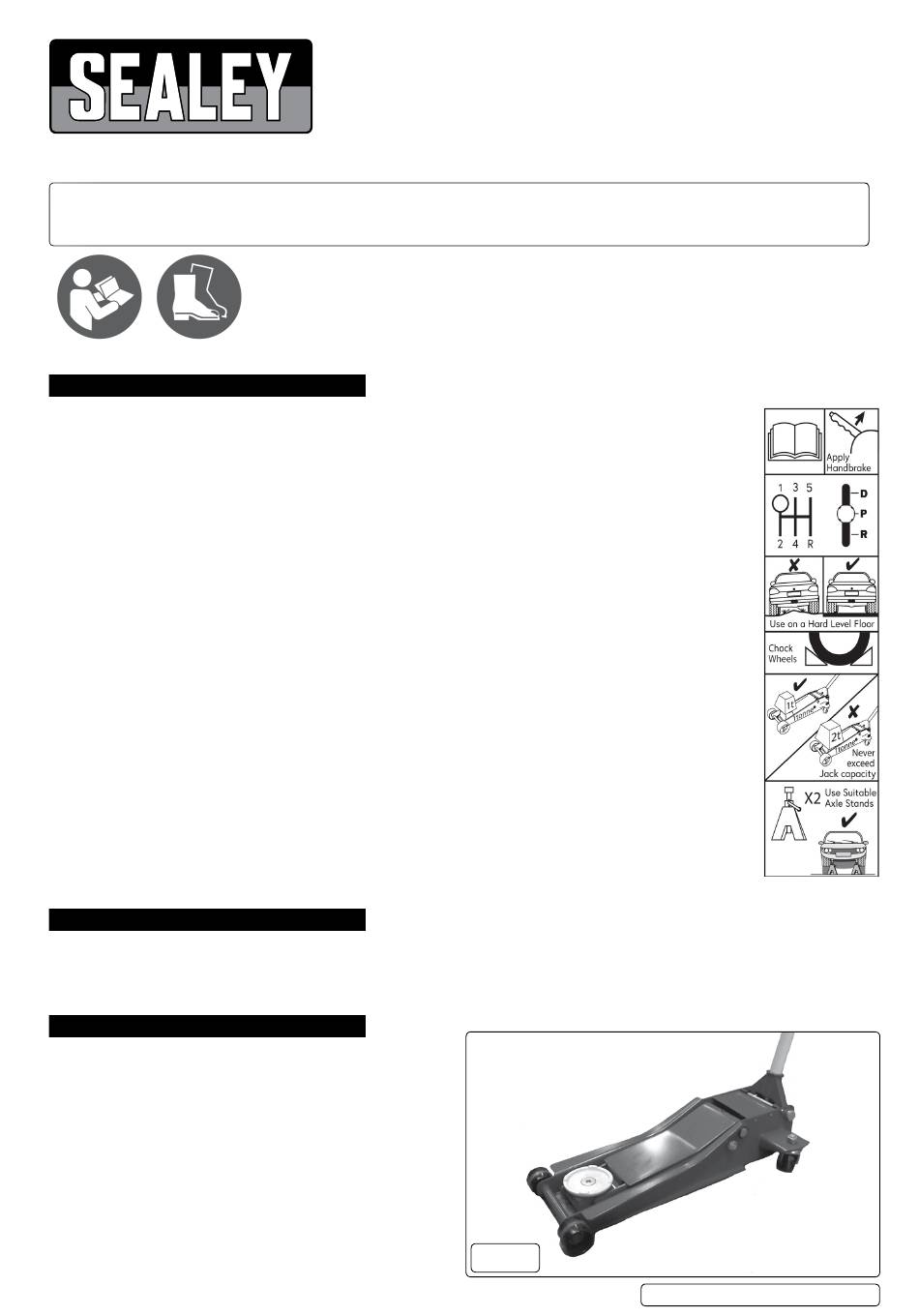

Sealey 2001LE Series Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Wear safety
instructions
footwear
1. SafeTy
ensure the jack is in sound condition and good working order. Take action for immediate repair or replacement
9
of damaged parts. Use genuine parts only. The use of improper parts may be dangerous and will invalidate the
warranty.
locate the jack in a suitable, well lit working area.
9
Keep working area clean and tidy and free from unrelated materials.
9
Use jack on level and solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
9
Chock wheels of vehicle.
9
ensure the vehicle handbrake is engaged, engine is switched off and transmission is in gear (or "PARK" if
9
automatic).
ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc., to allow for vehicle
9
tilting.
ensure all non-essential persons keep a safe distance whilst the jack is in use.
9
ensure there are no passengers in the vehicle.
9
Place jack under only those lifting points recommended by vehicle manufacturer (see vehicle handbook).
9
Check that the lifting point is stable and centred on the jack saddle.
9
ensure the jack wheels are free to move and that there are no obstructions.
9
▲ DanGer: Use the jack for lifting only, noT for supporting the lifted load.
Use suitable axle stands under the vehicle before proceeding with any task.
9
Use a qualified person to lubricate and maintain the jack.
9
ensure that only hydraulic jack oil is used in the jack
9
Do noT operate the jack if damaged.
8
Do noT allow untrained persons to operate the jack.
8
Do noT exceed the rated capacity of the jack.
8
Do noT allow the vehicle to move during lifting or lowering, or use the jack to move the vehicle.
8
Do noT jack vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
8
Do noT work under the vehicle until appropriately rated axle stands have been correctly positioned.
8
Do noT use the jack for purposes other than that for which it is intended.
8
Do noT top up hydraulic system with brake fluid. Use hydraulic jack oil only. (Sealey Part no: HJo500MlS or
8
HJo5lS)
Do noT adjust the safety overload valve.
8
When not in use store jack, fully lowered, in a safe, dry, childproof location.
9
2. inTroDucTion
Twin piston Rocket lift feature brings the saddle to maximum height in 6 strokes. Universal joint release mechanism allows safer, more
controlled lowering of jack. Profiled lifting arm gives low clearance height of 74mm making it suitable for sports and custom cars. Heavy duty
steel chassis provides stability and endurance. Fitted with an overload valve for added safety. Hydraulic oil bypass system protects ram from
being over extended.
3. SpecificaTion
Model no: .....................................................2001le SeRIeS
Capacity: .................................................................... 2 tonne
Minimum Saddle Height: .............................................. 74mm
Maximum Saddle Height: ........................................... 514mm
Maximum Chassis Height: .......................................... 150mm
length: ....................................................................... 740mm
Weight: ...........................................................................32Kg
© Jack Sealey limited
Trolley jack 2 Tonne low enTry
rockeT lifT
2001le SerieS
Model no:
fig.1
Original Language Version
2001LE SERIES Issue 4 12/12/18
