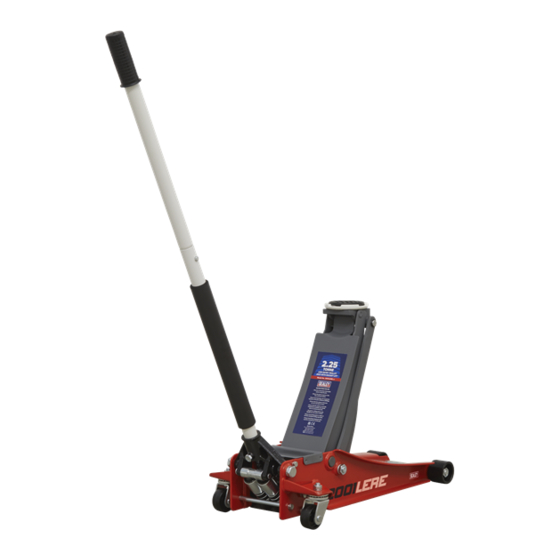

2.25 tonne low entry trolley jack with rocket lift

Advertisement

Quick Links

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Wear safety
instructions
footwear
1.

SAFETY

WARNING! Please note that the handle socket of this jack is retained under tension and must be released
before use. Caution should be taken when releasing, as the handle socket will suddenly raise to its upright
position if not controlled.
The user shall work only in accordance with this instruction manual.
9
The operator shall be provided with all necessary information about training and about pumping and
9
translating forces.
Ensure the jack is in sound condition and good working order. Take action for immediate repair or
9
replacement of damaged parts. Use genuine parts only. DO NOT modify the jack. The use of non-genuine
parts may be dangerous and will invalidate the warranty.
Locate the jack in a suitable, well lit working area.
9
Keep working area clean and tidy and free from unrelated materials. Use jack on level and solid ground,
9
preferably concrete. Avoid tarmacadam as jack may sink in.
Chock wheels of vehicle.
9
Ensure the vehicle handbrake is engaged, engine is switched off and transmission is in gear (or "PARK"
9
if automatic).
Ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc. to allow
9
for vehicle tilting.
Ensure all non-essential persons keep a safe distance whilst the jack is in use.
9
Ensure there are no passengers in the vehicle.
9
It is necessary that the operator can watch the lifting device and the load during all movements.
9
Place jack under only those lifting points recommended by vehicle manufacturer (see vehicle handbook).
9
Check that the lifting point is stable and centred on the jack saddle.
9
Ensure the jack wheels are free to move and that there are no obstructions.
9
DANGER: Use the jack for lifting only, NOT for supporting the lifted load.
Ensure there are no persons or obstructions beneath the vehicle before lowering.
9
It is not allowed to work under the raised load until it is secured by suitable means. Use suitable axle
9
stands under the vehicle before proceeding with any task.
Use a qualified person to lubricate and maintain the jack.
9
Ensure that only hydraulic jack oil is used in the jack.
9
DO NOT operate the jack if damaged.
8
DO NOT allow untrained persons to operate the jack.
8
DO NOT operate the jack when tired or under the influence of drugs, alcohol or intoxicating medication.
8
DO NOT exceed the rated capacity of the jack.
8
DO NOT allow the vehicle to move during lifting or lowering, or use the jack to move the vehicle.
8
DO NOT jack vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
8
DO NOT work under the vehicle until appropriately rated axle stands have been correctly positioned.
8
DO NOT use the jack for purposes other than that for which it is intended.
8
DO NOT top up hydraulic system with brake fluid. Use hydraulic jack oil only. (Sealey Part No:
8
HJO500MLS or HJO5LS)
DO NOT adjust the safety overload valve.
8
When not in use store jack, fully lowered, in a safe, dry, childproof area.
9
If more than 400N of effort is generated in lifting, the efforts shall be lowered by an additional person.
9
Jacks shall be maintained and repaired in accordance with the manufacturer's instructions. Such
9
maintenance and repair shall be carried out by qualified persons.
No modifications shall be carried out which adversely affect the compliance of the jack with the standard.
9
Check the state of the markings and that the markings remain as the initial one.
9
© Jack Sealey Limited
2.25 TONNE LOW ENTRY TROLLEY JACK WITH
ROCKET LIFT
2001LEHV.V2, 2001LERE.V2, 2001LEBL.V2
MODELS:
Original Language Version
TJL3
1 3 5
2 4 R
Use on
h rd level floor
Chock
wheels
Close
Lower
OR
Lift & twist
to lower
Use suit ble xle st nds
X2
w w w . s e l e y. c o . u k
2001LE.V2
Issue 2 (H,1,4,F)
Apply
h ndbr ke
Never
exceed
j ck c p city
R ise
R ise
13/09/23
