INSTALLATION INSTRUCTIONS FOR SYMCOM'S
BE SURE POWER IS DISCONNECTED PRIOR TO INSTALLATION!!
FOLLOW NATIONAL, STATE AND LOCAL CODES!

CONNECTIONS

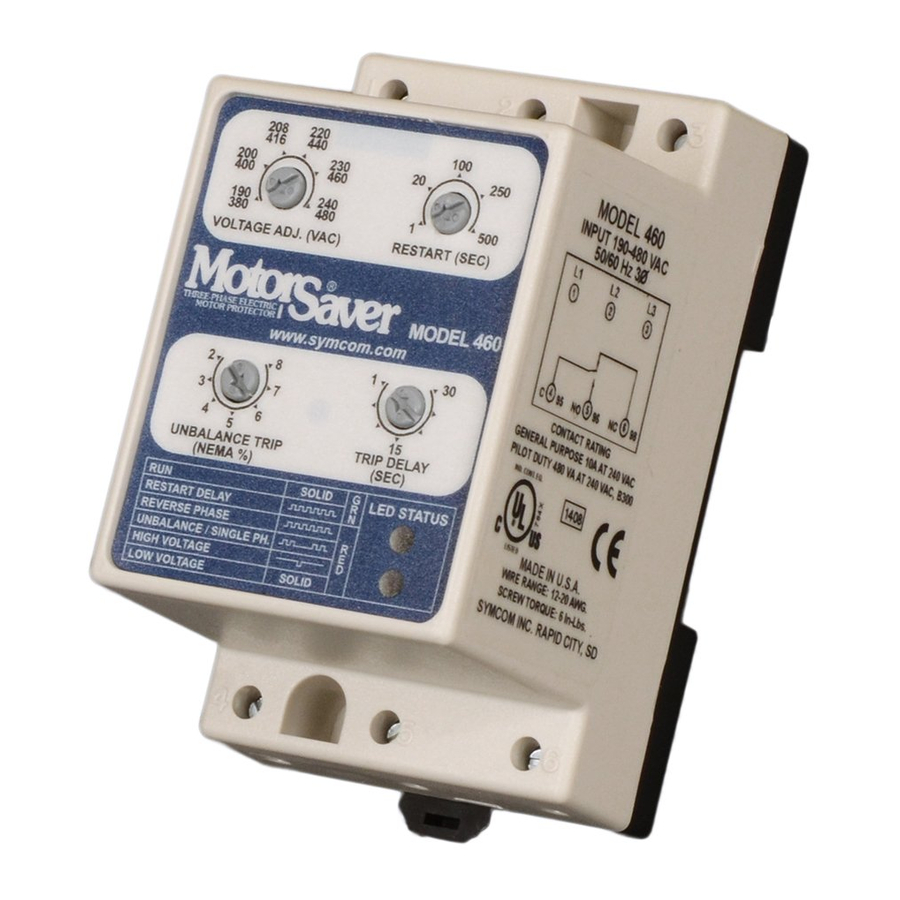

1. Mount the MOTORSAVER
location is wet or dusty, then the MOTORSAVER
enclosure. The 460 can be mounted to a back panel using two #6 or #8 x 5/8 screws or can be
snapped on to a DIN rail.
2. Connect L1, L2 and L3 on the MotorSaver's terminal strip to the LINE SIDE of the motor starter.
(See Figure No. 1).
3. Connect the output relay to the circuitry to be controlled. Connect the normally open contact in
series with the magnetic coil of the motor starter as shown in Figure No. 1 for motor control.
Connect normally closed contact in control circuit as shown in figure No. 2 for alarm operation.
MOTORSAVER
®
in a convenient location in or near the motor control panel. If the

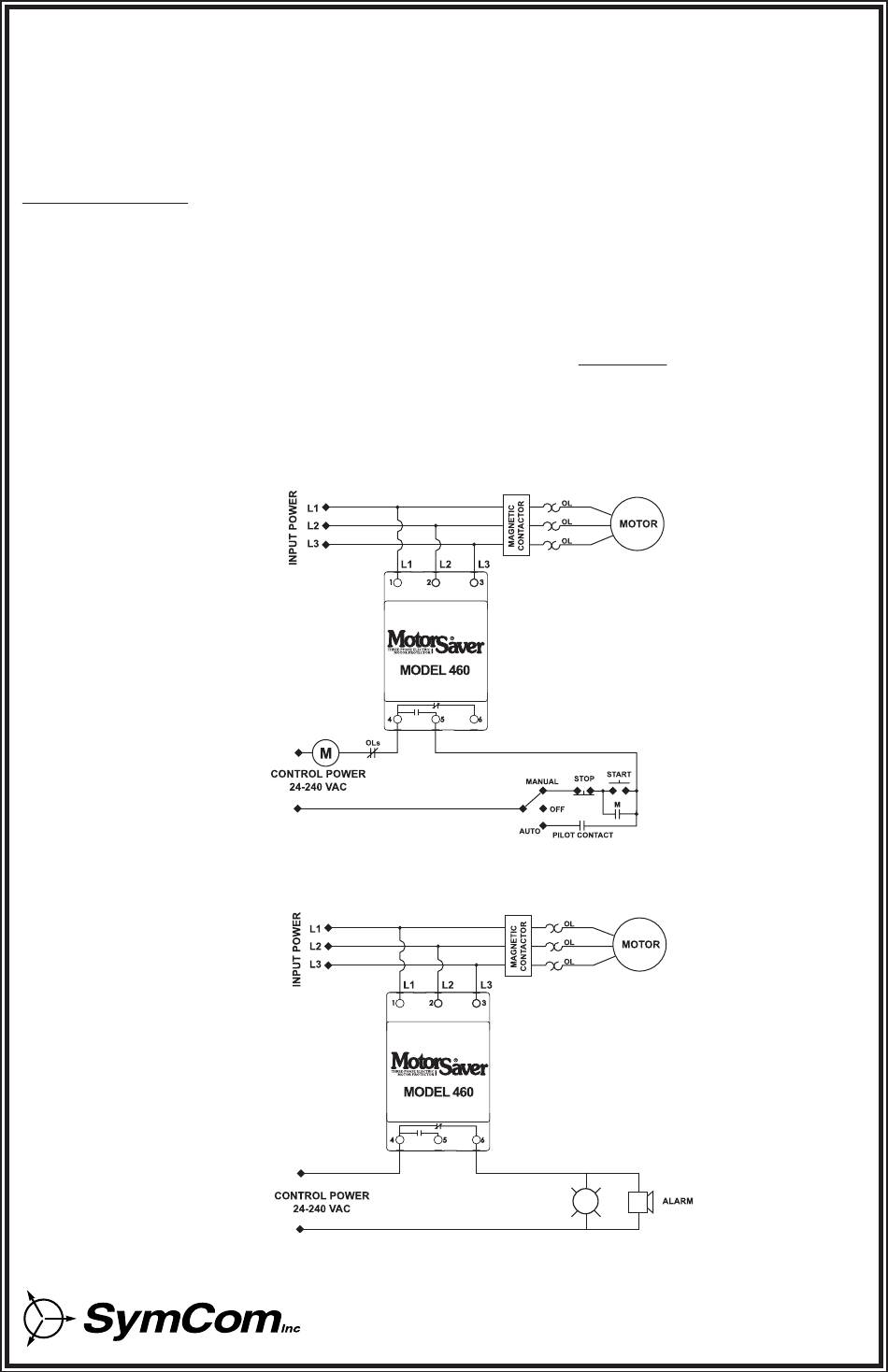

Figure No. 1: Motor Control Wiring Diagram
Figure No. 2: Alarm Wiring Diagram
