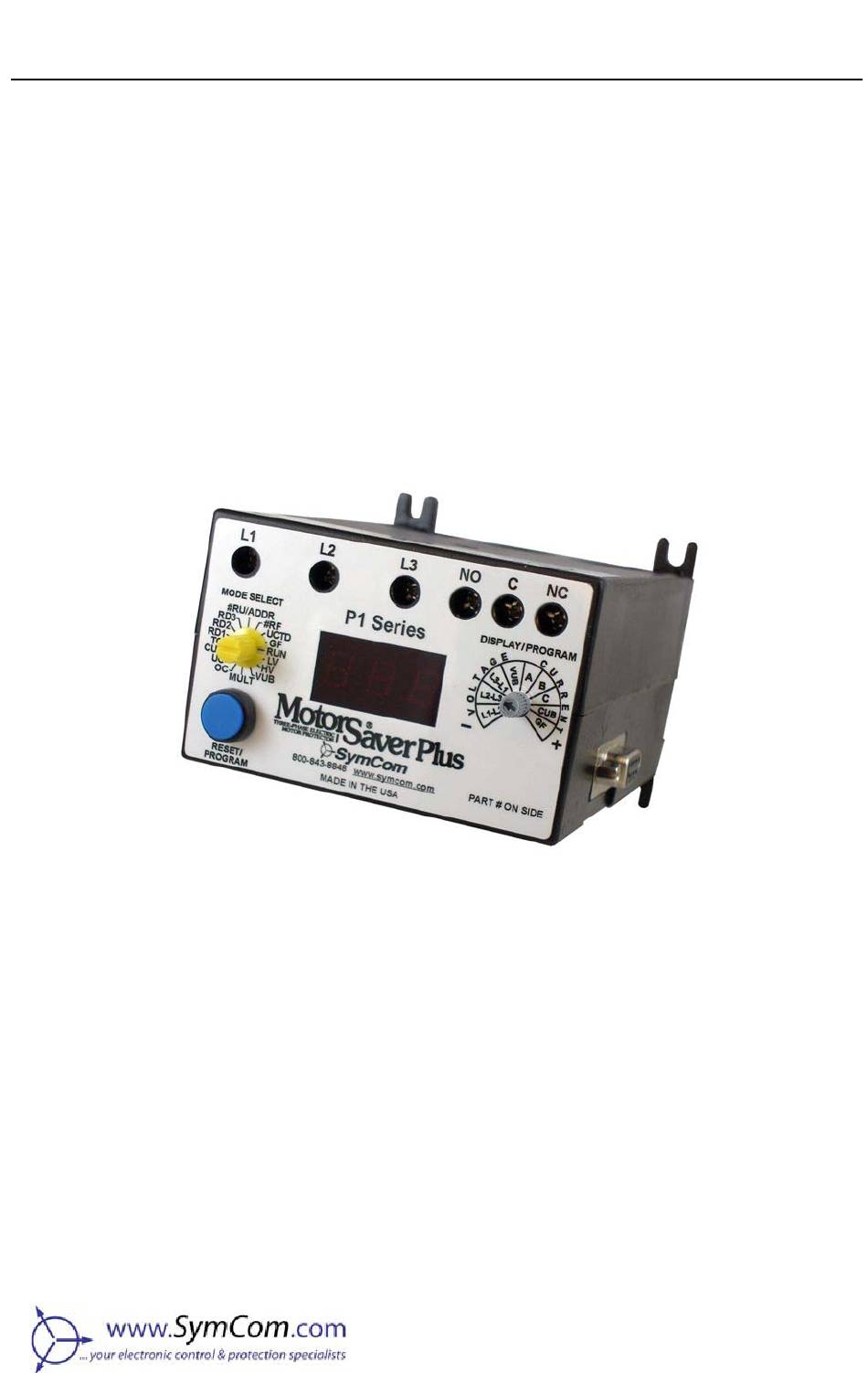

- Page 1 INSTALLATION Revision A1 INSTRUCTIONS Rapid City, SD, USA, 04/2009 MODEL 777-P1, 777-575-P1, 777-HVR-P1 ELECTRONIC OVERLOAD RELAY 2880 North Plaza Drive, Rapid City, South Dakota 57702 (800) 843-8848 · (605) 348-5580 · fax (605) 348-5685...
- Page 2 3-phase power must be applied with a minimum voltage of 200VAC (450VAC for the Model 777-575-P1). The 777-P1 offers more advanced network programmable features and will work with SymCom’s CIO-120-DN, CIO-DN, CIO-MB, CIO-777-PR, CIO-EN, and Modbus RS485MS-2W Communications Modules (sold separately).
- Page 3 0, 240-840 600 (600:5) 540-700 560-980 0, 280-980 700 (700:5) 560-800 640-992/FFF 0, 320-992/FFF 800 (800:5) TABLE 1: Wiring Configuration Based on Motor Load Amps FIGURE 1: Typical Wiring Diagram for FLA of 25-90 © 2009 SymCom, Inc. All Rights Reserved...
- Page 4 FIGURE 2: Typical Wiring Diagram Using External CTs. FIGURE 3: Looping Example Showing Three Conductors (MULT=3 from Table 1) (No other necessary connections are shown.) © 2009 SymCom, Inc. All Rights Reserved...
-
Page 5: Programmable Parameters
UC can be set to 0 if UC protection is not desired. The 777- P1 examines average current to determine if an undercurrent trip condition exists. CUB - SymCom recommends contacting the motor manufacturer for a specific setting. Current unbalance is calculated the same way voltage unbalance is calculated (see formula above). - Page 6 Table 2 shows the next restart delay vs. run time. In general, a longer run time produces a shorter restart delay. This feature allows the 777-P1 to optimize running and rest times automatically. © 2009 SymCom, Inc. All Rights Reserved...
- Page 7 A typical setting for GF is 10-20% of motor FLA (in amps). The GF test procedure in this installation instruction manual must be conducted before the device is brought online. © 2009 SymCom, Inc. All Rights Reserved...
-
Page 8: Operation
4. Turn MODE SELECT switch to RUN. The program is now locked, but all settings can be viewed. The unit can be unlocked by following the same steps except adjust the DISPLAY/PROGRAM knob to “unL” in step 2. © 2009 SymCom, Inc. All Rights Reserved... - Page 9 Trip Time in seconds at 6x OC=(TC x .93359s) Classes TABLE 3: Trip Class Descriptions 10000 1000 Class 30 Class 20 Class 15 Class 10 Class 5 1000 % of OC Setting FIGURE 4: Overload Trip Curves © 2009 SymCom, Inc. All Rights Reserved...
-
Page 10: Programming Examples
From Table 3, for this (and most) submersible pumps, TC = 10. No linear trip delay is required so TC also is set to oFF. RD1- To protect the pump from rapid cycling, RD1 = 30 © 2009 SymCom, Inc. All Rights Reserved... -
Page 11: System Display
TABLE 4: Fault Codes and Their Meaning On power up, the 777-P1 will show the current software revision. For example if the software revision is 3204, the 777-P1 will show 032 followed by 004. © 2009 SymCom, Inc. All Rights Reserved... - Page 12 Up to 99 units can be installed on one RS-485 network. Further information can be obtained at www.symcom.com. A remote reset button can be connected directly to the 9-pin connector using a male sub-D connector. It should be wired as shown in Figure 5.
-
Page 13: Troubleshooting
A ground fault current greater than the programmed GF Display is showing a solid value has been detected. A manual reset is required. “GrF.” Check the motor for insulation breakdown. TABLE 5: Troubleshooting Chart © 2009 SymCom, Inc. All Rights Reserved... -
Page 14: Ground Fault Testing Procedure
8. The results of the test are to be recorded on the test form provided below. The form should be kept by those in charge of the building’s electrical installation in order to be available to the authority having jurisdiction. 9. Confirm programmed parameters and proceed with installation instructions. © 2009 SymCom, Inc. All Rights Reserved... - Page 15 --------------------------------------------------- GROUND FAULT TEST RESULTS* Date Performed by Results Location *A copy of this form should be retained by the building’s electrical foreman. ----------------------------------------------------- © 2009 SymCom, Inc. All Rights Reserved...
- Page 16 Radio Frequency Immunity (RFI), Conducted IEC 61000-4-3, Level 3 10V/m Radio Frequency Immunity (RFI), Radiated Fast Transient Burst IEC 61000-4-4, Level 3, 3.5 kV input power Surge 61000-4-5 Level 3, 2kV line-to-line; Level 4, 4kV line-to-ground © 2009 SymCom, Inc. All Rights Reserved...
- Page 17 2–255 seconds (standard) GF- Ground Fault Current Threshold (1–20A) or oFF NOTES: SymCom's Overload Relay can be programmed prior to installation by applying 120VAC between the L1 and L2 terminals (except 575 volt model). * 575 volt model. ** HVR model *** If "oc"...
- Page 18 NOTES © 2009 SymCom, Inc. All Rights Reserved...
- Page 19 NOTES © 2009 SymCom, Inc. All Rights Reserved...
- Page 20 Visit us at www.symcom.com to see our complete product listing! © 2009 SymCom, Inc. All Rights Reserved...
