- Page 1 INSTALLATION MANUAL 9509093 Wolfen Wall Mounted Hand Basin Right Hand 1 Taphole 9509101 Wolfen Wall Mounted Hand Basin and Bracket Right Hand 1 Taphole Installation Details | Warranty...

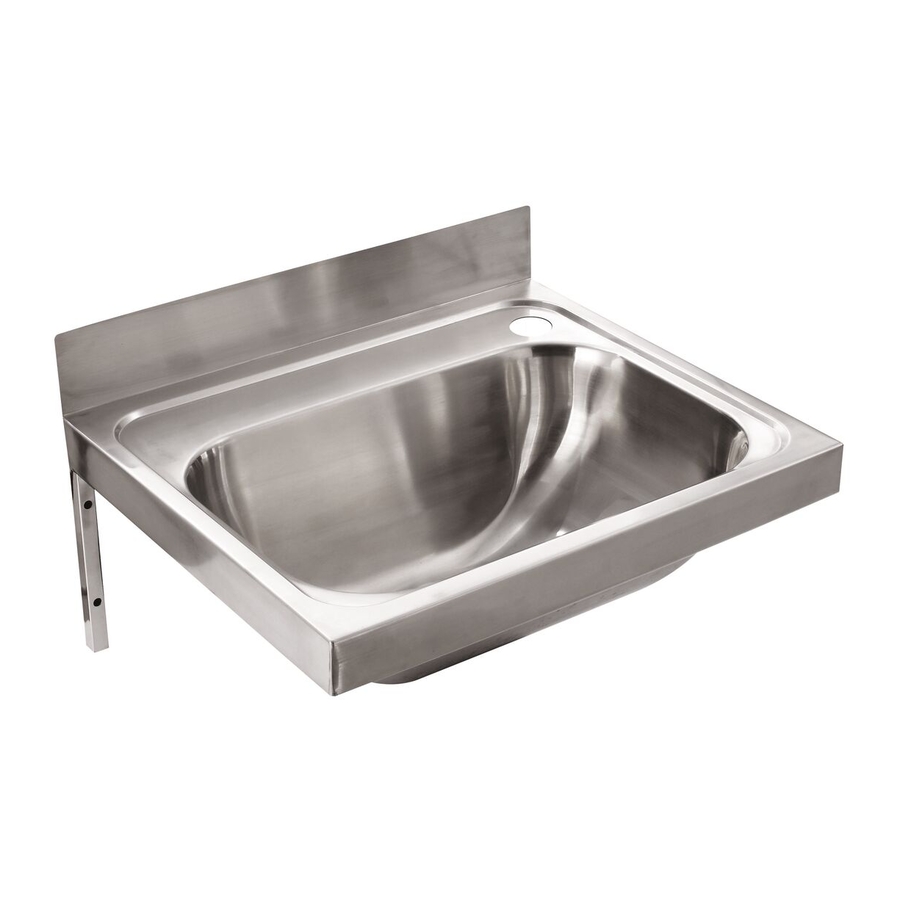

- Page 2 Cleaning Warranty Delivering unrivalled quality Designed for absolute performance, Wolfen’s Wall Mounted Hand Basin sets new standards in quality and durability. Made from 304 Stainless Steel and to be fitted with 40mm Plug Waste. The Hand Basin is ideal for any domestic or commerical application.
-
Page 3: Technical Information
1.0mm Finish Polished Stainless Steel Waste 40mm Plug Waste (sold seperately) Mounting Bracket Sold Separately: 9509093 Accessories Mounting Bracket Included: 9509101 **Not suitable for coastal environments Wolfen Wall Mounted Hand Basin WOLFEN INSTALLATION MANUAL | Wolfen Wall Mounted Hand Basin... - Page 4 WOLFEN INSTALLATION MANUAL | Installation Instructions TECHNICAL INFORMATION Wolfen Wall Mounted Hand Basin 9509093 WOLFEN INSTALLATION MANUAL | Wolfen Wall Mounted Hand Basin...
-
Page 5: Installation Instructions
2. Drill holes as marked and install first wall bracket with appropriate fixing screws Note: Horizontal distance between fixing points is 485mm 3. Ensure that brackets have been installed parallel to each other and are level horizontally 4. Place Wolfen Hand Basin onto brackets 5. Install 40mm plug waste 6. Connect waste trap CLEANING We recommend the use of soap water or approved cleaners. - Page 6 • Proof of purchase (including the date of purchase) is provided • The installation of the product is in Don’t risk it, use a licensed plumber.™ accordance with the instructions provided WOLFEN INSTALLATION MANUAL | Wolfen Wall Mounted Hand Basin...
- Page 7 IF AFTER CHECKING THE INSTALLATION INSTRUCTIONS AND IMPORTANT INFORMATION, THE PROBLEM HAS NOT BEEN IDENTIFIED, CUSTOMERS ARE TO CONTACT THE BRANCH WHERE THE PRODUCT WAS PURCHASED. THESE DETAILS CAN BE FOUND ON YOUR PURCHASE INVOICE. General contact details for Reece are as follows: Reece Australia Pty Ltd 118 Burwood Hwy Burwood VIC 3125...
- Page 8 reece.com.au/wolfen...
