XPAND REACH
Stretcher Bar Return– Assembly Instructions

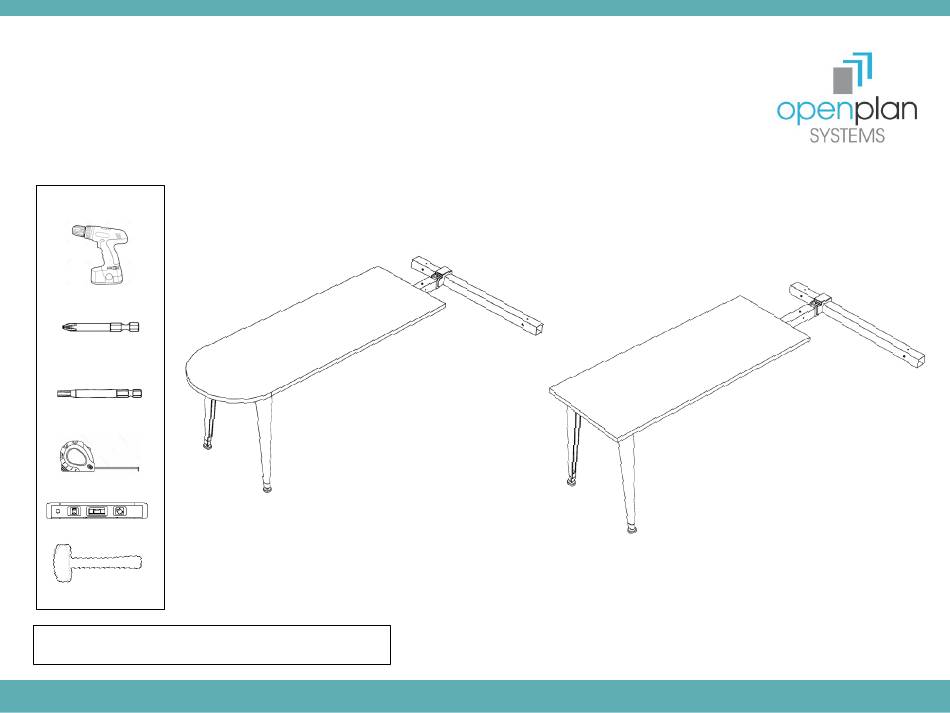

Tools Required
Cordless Drill
Philips bit with extension
for Work Surface screws
(XP-Screw-WS)
3/16 Hex drive bit
for XP-Screws
Measuring Tape
Level
Rubber Mallet
For additional assembly support, refer to www.openplan.com
or contact 844.OPS.OPS1
www.openplan.com | 844.OPS.OPS1 | sales@openplan.com
XPand Reach – Stretcher Bar Return
Advertisement
Related Manuals for Openplan XPAND REACH
Summary of Contents for Openplan XPAND REACH
- Page 1 XPand Reach – Stretcher Bar Return XPAND REACH Stretcher Bar Return– Assembly Instructions Tools Required Cordless Drill Philips bit with extension for Work Surface screws (XP-Screw-WS) 3/16 Hex drive bit for XP-Screws Measuring Tape Level Rubber Mallet For additional assembly support, refer to www.openplan.com or contact 844.OPS.OPS1...
- Page 2 XPand Reach – Stretcher Bar Return XPand Parts Used for Assembly Item Part Part Image Item Part Part Image name Description name Description XP-LA Leg Assembly XP-SB-XX Stretcher Bar, XX” XP-SB- Stretcher Bar XP-RB Return Bracket Bracket Bracket XP-CT-SB- Cable Tray for XP-LR-XX Leg Rail, XX”...
- Page 3 XPand Reach – Stretcher Bar Return XPand offers two types of end legs, Tapered legs and Rectangular legs. Though the legs look different, the assembly process is same. To assemble the Return components to the Stretcher bar, Return bracket (XP-RB) is used.
- Page 4 XPand Reach – Stretcher Bar Return Step 4: Assemble the XP-SB-XX (Stretcher Bar) to Step 3: Assemble XP-SB-Bracket the XP-SB-Bracket using (2) XP-Screws. to the XP-RB using (2) XP-Screws. Note: The Stretcher bar is 5” shorter than the specified size.
- Page 5 XPand Reach – Stretcher Bar Return Step 5: Assemble XP-SB-Bracket to the other end of the Stretcher Bar using (2) XP-Screws. Step 7: Assemble another leg to the other end of the Leg Rail Step 6: Assemble XP-LA to the XP-LR-XX (Leg using (2) XP-Screws.
- Page 6 XPand Reach – Stretcher Bar Return Step 8: Assemble the Return XP-SB-Bracket to the center hole of the Leg rail using (2) XP- Screws Step 9: Place the Spine Work Surface and the Return Work surface on the frame, make sure they are perpendicular and flush (don’t assemble them yet).
- Page 7 XPand Reach – Stretcher Bar Return XP-WSSB Return Work Surface Spine Work Surface Figure A Step 11: Secure Leg rail cover (XP-LRC-24) to the Leg rail (XP-LR-24).
- Page 8 XPand Reach – Stretcher Bar Return Step 12: Place the Work Surfaces on the frame. Center the Work Surfaces by leaving ¼” overhang over sides, and ½” overhang on front and back for Single/Double Bench. Place the Return Work Surface Perpendicular and flush with the Spline Work Surface. Secure the Work Surfaces to the Work Surface Support Arms (XP-WSSA-XX) and Work Surface Support Brackets (XP-WSSB) using (4) Work Surface Screws (XP-SCREWS-WS) per Bracket.
- Page 9 XPand Reach – Stretcher Bar Return Step 13: Use Self Tap screws to assemble XP-HA-SCT-XX (HA Step 14: Level the Single and Return Station unit by turning the leveling Cable tray)/ XP-CT-SB-XX (Single Cable Tray) to the Stretcher feet. bar.
