XPAND INSTALLATION GUIDE

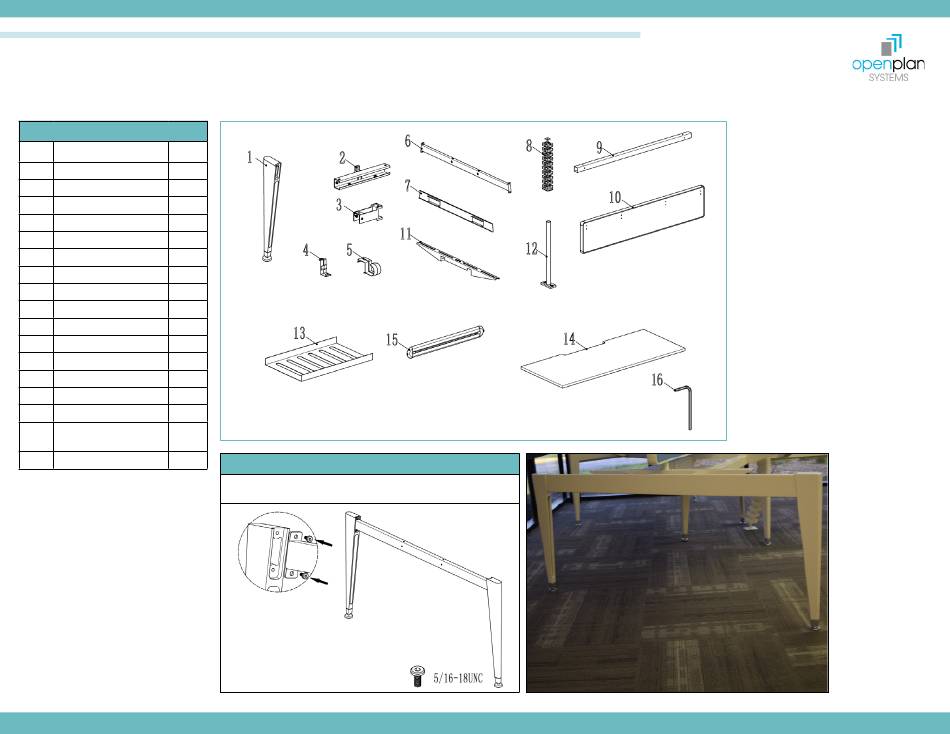

PARTS & TOOLS LIST
NO.
NAME
QTY
1
End Leg
6
2
Mid-Bracket
2
3
Stretcher Bracket
4
4
Cable Tray Clip
24
5
Cable Holder Clip
4
6
Leg Rail Bench
2
7
End Leg Cover
2
8
Wire Management
1
9
Bench Tube
4
10
Screen
2
11
Work Surface Support
4
12
Screen Bracket
4
13
Cable Tray
6
14
Worksurface
4
15
Screen Accessory Rail
2
16
Hex Allen Wrench
3
(3/16", 4mm, 2.5mm)
17
5/16-18UNC Screws
44
BENCHING ASSEMBLY
STEP 1
Insert the leg rail bench into the end legs and attach using
provided screws.
www.openplan.com | 844.OPS.OPS1 | sales@openplan.com |
REV 09.29.17
1
Advertisement
Related Manuals for Openplan XPAND
Summary of Contents for Openplan XPAND
- Page 1 Screen Bracket Cable Tray Worksurface Screen Accessory Rail Hex Allen Wrench (3/16”, 4mm, 2.5mm) 5/16-18UNC Screws STEP 1 Insert the leg rail bench into the end legs and attach using provided screws. www.openplan.com | 844.OPS.OPS1 | sales@openplan.com | REV 09.29.17...
-
Page 2: Cable Tray Clip
Insert screen bracket through top bench arms and secure using provided screws. STEP 4 Attach end legs assemblies to mid leg assemblies using bench tubes and securing with provided screws. Attach end leg covers to each end leg assembly. www.openplan.com | 844.OPS.OPS1 | sales@openplan.com | REV 09.29.17... -
Page 3: Wire Management
Attach work surfaces to support panels and slide screens onto screen brackets. Attach screen accessory brackets to screens using provided screws. Note: Do not use powered drill to secure accessory rail to screens www.openplan.com | 844.OPS.OPS1 | sales@openplan.com | REV 09.29.17... - Page 4 Bench Tube Screen Work Surface Support Screen Bracket Cable Tray Worksurface Screen Accessory Rail Hex Allen Wrench (3/16”, 4mm, 2.5mm) 5/16-18UNC Screws STEP 1 Attach mid-brackets to end legs using provided screws. www.openplan.com | 844.OPS.OPS1 | sales@openplan.com | REV 09.29.17...
-
Page 5: Bench Tube
Insert screen bracket through top bench arms and secure Attach end legs assemblies to mid leg assemblies using bench tubes and securing with using provided screws. provided screws. Attach end leg covers to each end leg assembly. www.openplan.com | 844.OPS.OPS1 | sales@openplan.com | REV 09.29.17... - Page 6 Attach work surfaces to support panels and slide screens onto screen brackets. Attach screen accessory brackets to screens using provided screws. Note: Do not use powered drill to secure accessory rail to screens www.openplan.com | 844.OPS.OPS1 | sales@openplan.com | REV 09.29.17...
-
Page 7: Cable Tray Clip
Screw the leg feet onto the bottom of each leg using Slide four cable tray clips onto each cable tray. Secure bench tubes (long) to stretcher bar brackets and provided screws. attach to leg rails using provided screws. www.openplan.com | 844.OPS.OPS1 | sales@openplan.com | REV 09.29.17... - Page 8 Attach bench tubes/leg rails to end legs using provided screws. Lower stretcher bars onto end Connect stations together using bench tubes (short) and stretcher link brackets using legs and attach using provided screws. provided screws. Secure inner screen inserts to leg rails using provided screws. www.openplan.com | 844.OPS.OPS1 | sales@openplan.com | REV 09.29.17...
- Page 9 Attach cable trays to stretcher assembly. Secure leg rail covers to each end leg assembly. Attach work surfaces to stretcher bars. Lower screens onto screen brackets. Attach screen Secure wire management to cable trays with provided screws. accessory rails to each screen. www.openplan.com | 844.OPS.OPS1 | sales@openplan.com | REV 09.29.17...
- Page 10 Place Duplex and Cable Tray Bracket assembly in desired location of Cable Management Tray. Using XP Screw tighten Cable Tray Bracket Plate to the Cable Tray Bracket, clamping the cable tray tightly. www.openplan.com | 844.OPS.OPS1 | sales@openplan.com | REV 09.29.17...
- Page 11 Insert remaining Power plugs into power blocks to complete power block. And secure flexible conduit into larger side of cable cord clip connections. Route electrical cables and secure using cable cord (XP-PC). clips (XP-PC). www.openplan.com | 844.OPS.OPS1 | sales@openplan.com | REV 09.29.17...
- Page 12 XPAND INSTALLATION GUIDE CABLE TRAY POWER Completed electrical shown secured in place. www.openplan.com | 844.OPS.OPS1 | sales@openplan.com | REV 09.29.17...
- Page 13 Power block clip shown in place before being twisted Power block clip shown in place after twisting 90 90 degrees to lock in place. Power block mounts degrees. directly to cable management tray. www.openplan.com | 844.OPS.OPS1 | sales@openplan.com | REV 09.29.17...
- Page 14 Cable Tray. Twist the bracket assembly to secure in place. Insert/place data components within CAT 6 base. Once all data components are in place, guide CAT 6 top in place and “click” to secure. www.openplan.com | 844.OPS.OPS1 | sales@openplan.com | REV 09.29.17...
- Page 15 XPAND INSTALLATION GUIDE GLASS SCREEN FRAME Glass screen bracket shown in place mounted Glass screen bracket shown in place. through work surface support. www.openplan.com | 844.OPS.OPS1 | sales@openplan.com | REV 09.29.17...
- Page 16 (XP-WSSA) using two XP-Screws and tighten, as shown. Channel Brackets (XP-G-SB) using four screws provided. extrusion (XP-G-E) ensuring it is fully seated. Seat Glass Channel Extrusion Endcaps (XP-G-EC) into ends of the Glass Channel Extrusion (XP-G-E). www.openplan.com | 844.OPS.OPS1 | sales@openplan.com | REV 09.29.17...
- Page 17 XP-ELAXX - MLA24 XPAND SINGLE RUN XPAND REACH XPAND REACH ITEM NO. PART NUMBER DESCRIPTION XP-ELAXX XPAND END LEG ASSEMBLY - XX XP-ELAXX-MLA24 XP-ELAXX - MLA24 XP-MLA24 XPAND MID LEG ASSEMBLY - SINGLE XPAND SINGLE RUN XP-SB-SINGLE-XX STRETCHER BAR SET - SINGLE...
