Openplan XPAND REACH Assembly Instructions

Double bench: spine glass-

Hide thumbs Also See for XPAND REACH:

XPAND REACH

Double Bench: Spine Glass- Assembly

Instructions

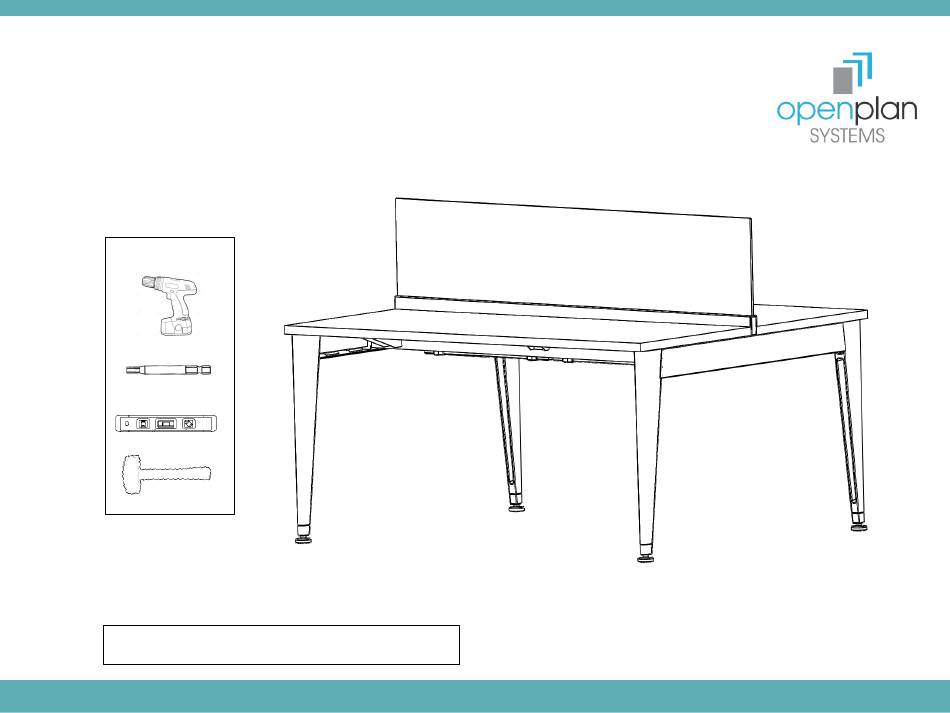

Tools Required

Cordless Drill

3/16 Hex drive bit

for XP-Screws

Level

Rubber Mallet

For additional assembly support, refer to www.openplan.com

or contact 844.OPS.OPS1

www.openplan.com | 844.OPS.OPS1 | sales@openplan.com

Table of Contents

Do you have a question about the XPAND REACH and is the answer not in the manual?

Page 1 XPAND REACH Double Bench: Spine Glass- Assembly Instructions Tools Required Cordless Drill 3/16 Hex drive bit for XP-Screws Level Rubber Mallet For additional assembly support, refer to www.openplan.com or contact 844.OPS.OPS1 www.openplan.com | 844.OPS.OPS1 | sales@openplan.com...
Page 2 XPand Reach – Double Bench-Spine Glass XPand Parts Used for Assembly Item Part name Part Description Image XP-G-XXXX Clear/Frosted Glass XP-G-EC Glass Extrusion End Cap XP-G-EXX Glass Extrusion XX” XP-G-SB Glass Channel Bracket 5/16-18 x .5” Hex Socket XP-Screw Cap Screw, FT, SS...
Page 3 XPand Reach – Double Bench-Spine Glass To Assemble Spline Glass to Double Bench, (2) Glass Channel Brackets (XP-G-SB), (1) Glass Extrusion and (4) XP-Screws are used. Step 1: Align the holes of the Glass Channel Bracket (XP-G-SB) with the holes on Work Surface Support Arm (as shown in Figure A) and assemble it from the bottom using (2) XP-Screws per Bracket.
Page 4 XPand Reach – Double Bench-Spine Glass Step 3: Slide in the Glass into the Extrusion and cover the Glass extrusion ends using End Caps. Note: Due to variation in the glass extrusion channel opening, OPS is providing Filament Tape with the Glass. Refer “Installation Alert: Glass Extrusion Assembly”...
