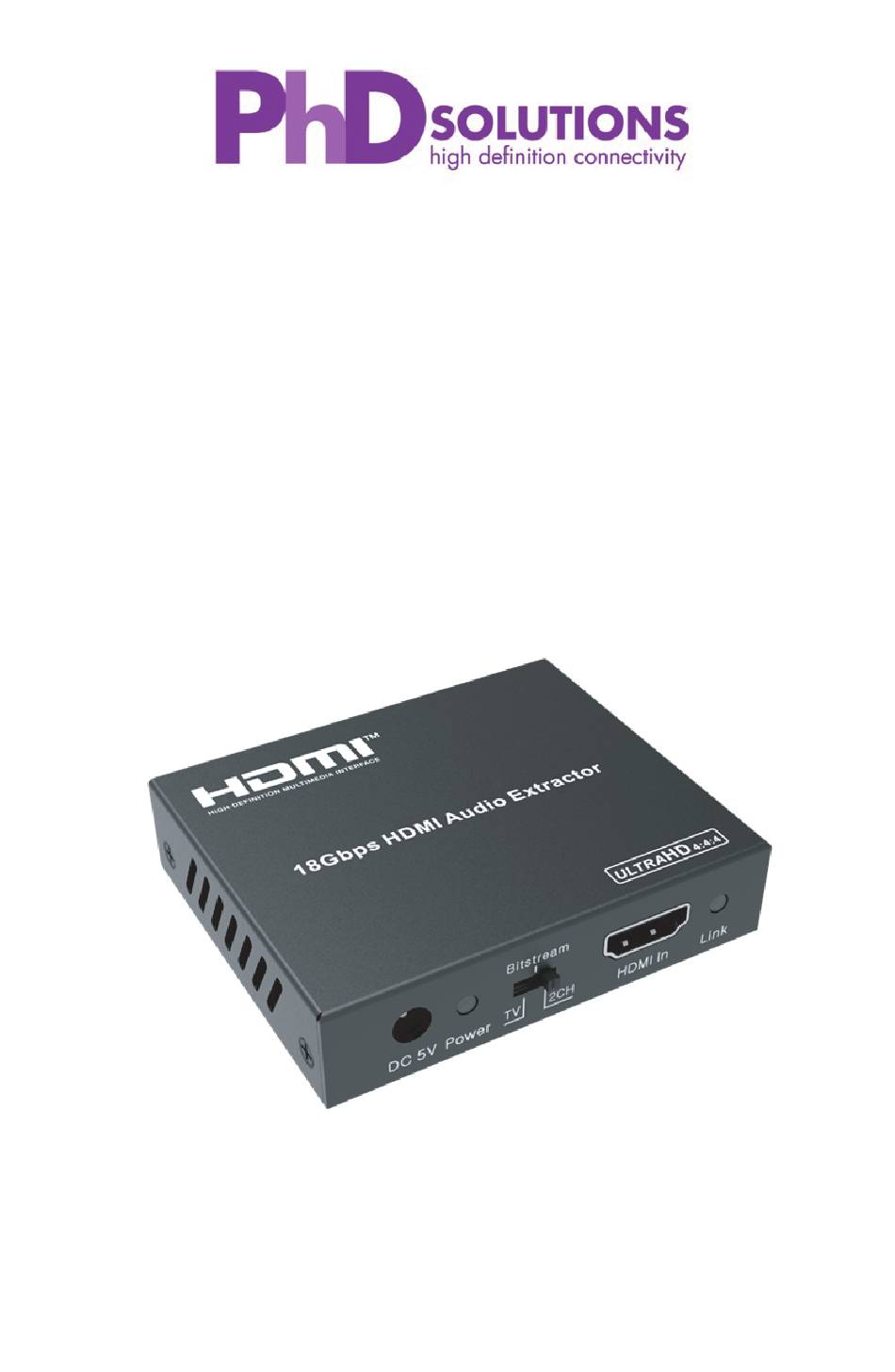

- Page 1 HDMIDAC1 HDMI 18Gbps Audio Extractor with HDCP 2.2 User Manual VER 1.0_ 23-12-2020 HDMIDAC1 User Manual...
-
Page 2: Table Of Contents
Safety and Performance Notice Only use the power supply supplied with the unit, or a PhD Solutions supplied replacement. Do not disassemble any of the equipment. This will void the manufacturer’s warranty. Table of Contents... -
Page 3: Introduction
HDMIDAC1 USER MANUAL 1. Introduction The PhD HDMI audio extractor, extracts audio signals from any HDMI compliant source and outputs digital tos- link optical and analog stereo L/R audio. It also supports bitstream audio to analog stereo output and retains opti- cal and HDMI out audio pass-through. -
Page 4: Package Contents
HDMIDAC1 USER MANUAL 3. Package Contents • 1× HDMI 18Gbps Audio Extractor • 1× 5V/1A power supply • 1× User manual 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18Gbps Up to 4K2K@50/60Hz(YUV4:4:4),... - Page 5 HDMIDAC1 USER MANUAL Connections Inputs 1x HDMI Type A [19-pin female] 1x HDMI Type A [19-pin female] Outputs 1x L/R Audio Out [3.5mm Stereo mini-jack] 1x Optical TOSLINK Out [S/PDIF] Mechanical Housing Metal Enclosure Color Black 73.5mm[W] x 60.7mm[D] x...
-
Page 6: Front Panel
HDMIDAC1 USER MANUAL 5. Operation Controls and Functions 5.1 Front Panel Bitstream DC 5V Power Link HDMI In Name Function Description Connect 5V/1A adaptar to AC wall 1 DC 5V outlet to supply power to the unit. 2 Power LED System power indicator LED... -
Page 7: Rear Panel
HDMIDAC1 USER MANUAL 5.2 Rear Panel HDMI OUT L/R Out OPTICAL OUT Name Function Description HDMI output port. Connect to the HDMI 2.0 display with an 18Gbps HDMI cable. Stereo 3.5 mm mini jack Analog L/R OUT audio output. OPTICAL Toslink digital optical audio output (Mirrors HDMI). -
Page 8: Application Diagram
HDMIDAC1 USER MANUAL 6. Application Diagram www.phdsolutions.co... -
Page 9: Product Warranty
Should you feel your product does not function adequately due to defects in materials or workmanship, PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the period indicated below: Repair the product with new or refurbished parts. - Page 10 If the Product or a component incorporated within it is no longer available, PHD Solutions may replace the Product with a similar product of similar function, at PHD Solutions’ sole discretion. This is your sole and exclusive remedy for breach of this Limited Warranty. Any Product that has...
- Page 11 USER MANUAL Before being able to claim under this Limited Warranty, the owner of the Product must (a) notify PHD Solutions of the intention to claim during the Warranty Period and providing a description of the alleged failure, and (b) comply with PHD Solutions’...
- Page 12 Product or software can impair the Product’s performance and may invalidate this Limited Warranty. PHD Solutions does not warrant that operation of the Product will be error-free or uninterrupted or that the Product will in every case process all data correctly.
- Page 13 6.LIMITATION OF LIABILITY PHD Solutions disclaims all liability of any kind of PHD Solutions’ suppliers. The PHD Solutions online services (“services”) may provide you information (“product information”) regarding your products performance and/or peripherals connected to your product (“product...
- Page 14 (electronic, mechanical, magnetic, optical, chemical, manual, or otherwise) without express written permission and consent from PHD Solutions. © Copyright 2020 PHD Solutions. All Rights Reserved. Version 1.0 – 23 December 2020 www.phdsolutions.co www.phdsolutions.co...
