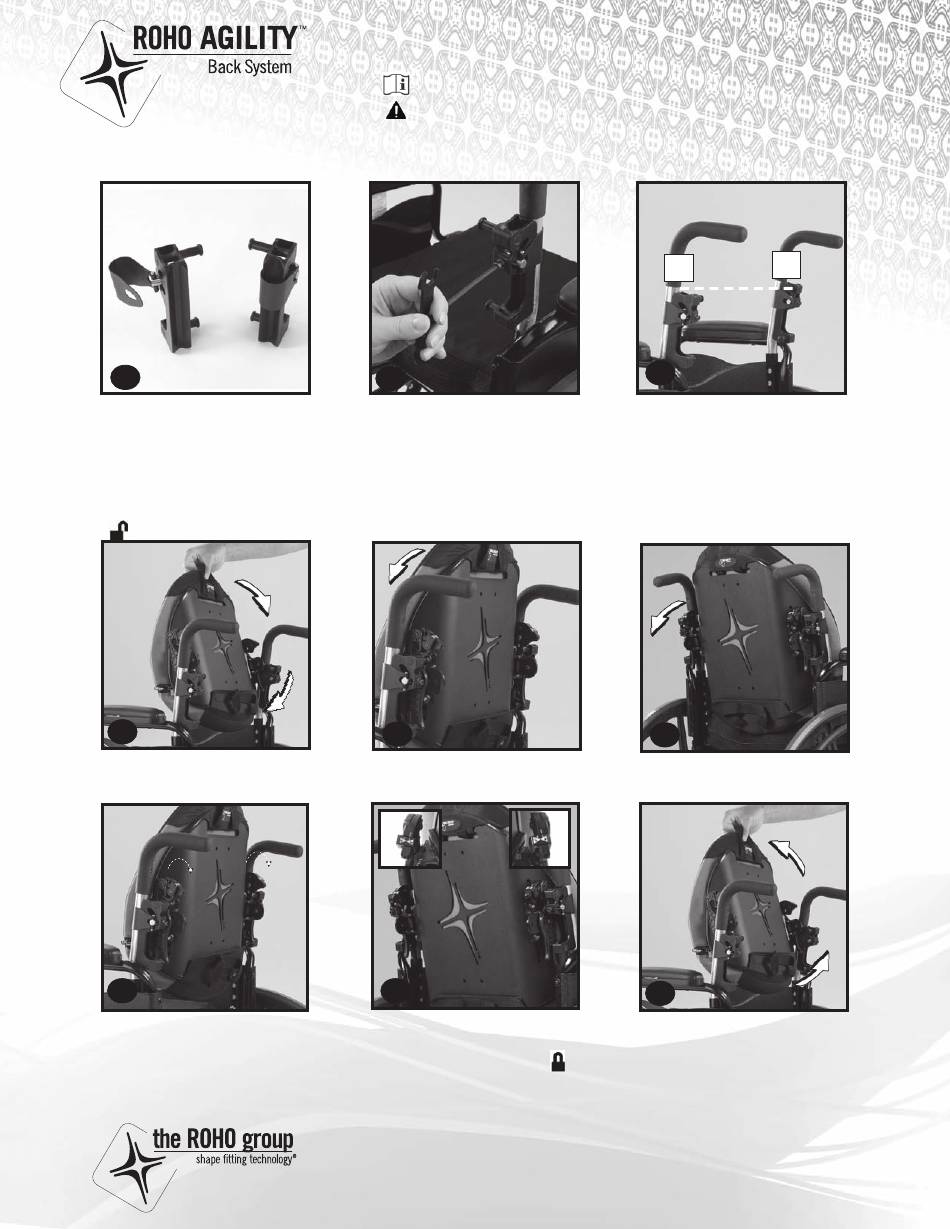

ROHO AG3-1410A-1 Quick Setup Manual

BA C K C ANE HARD WARE INSTA LL AT ION
1
Loosen cane hardware bolt. Press end
of adjustment cylinder and unclip
the pivoting cane band. Rotate cane
bracket away from the cane band.
A G I LI T Y I NSTALLAT ION
( ) Note: UNLOCK safety locks to install the AGILITY.
1
Hook lower ends of double hooks onto
the lower pins of the cane brackets.
4
Push down on back shell until latches
open and upper ends of the double
hooks wrap around the upper pins.
Latches should be fully down in the
closed position.
Quick Setup Guide
Refer to Operations Manual for complete instructions.
WARNING: DO NOT attach AGILITY with the individual seated in the wheelchair.
2
Clip cane band around the cane as shown
and tighten cane hardware bolt. Repeat on
opposite cane with the other cane hardware.
2
Tilt back shell toward the canes until
latches rest on upper pins.
5
Lock the latches by pushing both left
and right safety locks toward the center
of the back shell to the LOCKED ( )
position.
©2012 ROHO, Inc. Manufactured by ROHO, Inc. The following are registered trademarks of ROHO, Inc.: AGILITY™, ROHO
ROHO, Inc. has a policy of continual product improvement and reserves the right to amend specifications presented in this guide.
R
L
3
Ensure that both cane hardware are
evenly aligned and tighten the hardware
bolts using the provided Allen wrench.
3
Lift back shell up then tilt it backwards
toward the canes.
6
Reverse these steps for removing AGILITY.
® , shape fitting technology ® .
Item #: T20217
Rev: 9/12
Print Date: 9/12
