The fitting goal is to provide a comfortable and secure fit with a minimal amount of
occlusion, while providing a pleasing appearance.
The ideal device placement is to position the faceplate slightly past the tragus into the
canal. The body of the device should allow gaps between its shell and the canal wall. The
tip should ideally not come in contact with the canal wall. The faceplate should not be
visible from the front and may be slightly visible from the side (fig 1).
Step 1:
Check to be sure the ear canal is large enough to hold the body of the
APT-D (see Inserting APT-D into Ear below). If the canal is too small,
the APT-D is not an appropriate device for this client.
Step 2:
Medium D-Ring
(see Attaching D-Ring to APT-D Body below).
Step 3:
Insert the APT-D into ear (see Inserting APT-D into Ear below). If the D-
Ring will not fit or is deformed when it is in the ear then go to step 7
Small D-Ring.
1260 Red Fox Road ∙ Arden Hills, MN 55112 ∙ TEL: (651) 636-9770 ∙ FAX: (651) 636-8944
Kesselschmiedstrasse 10 ∙ D-85354 Freising, Germany ∙ TEL: 049-8161-4804-0 ∙ FAX: 049-8161-4804-18
www.intricon.com
APT-D Fitting Recommendations

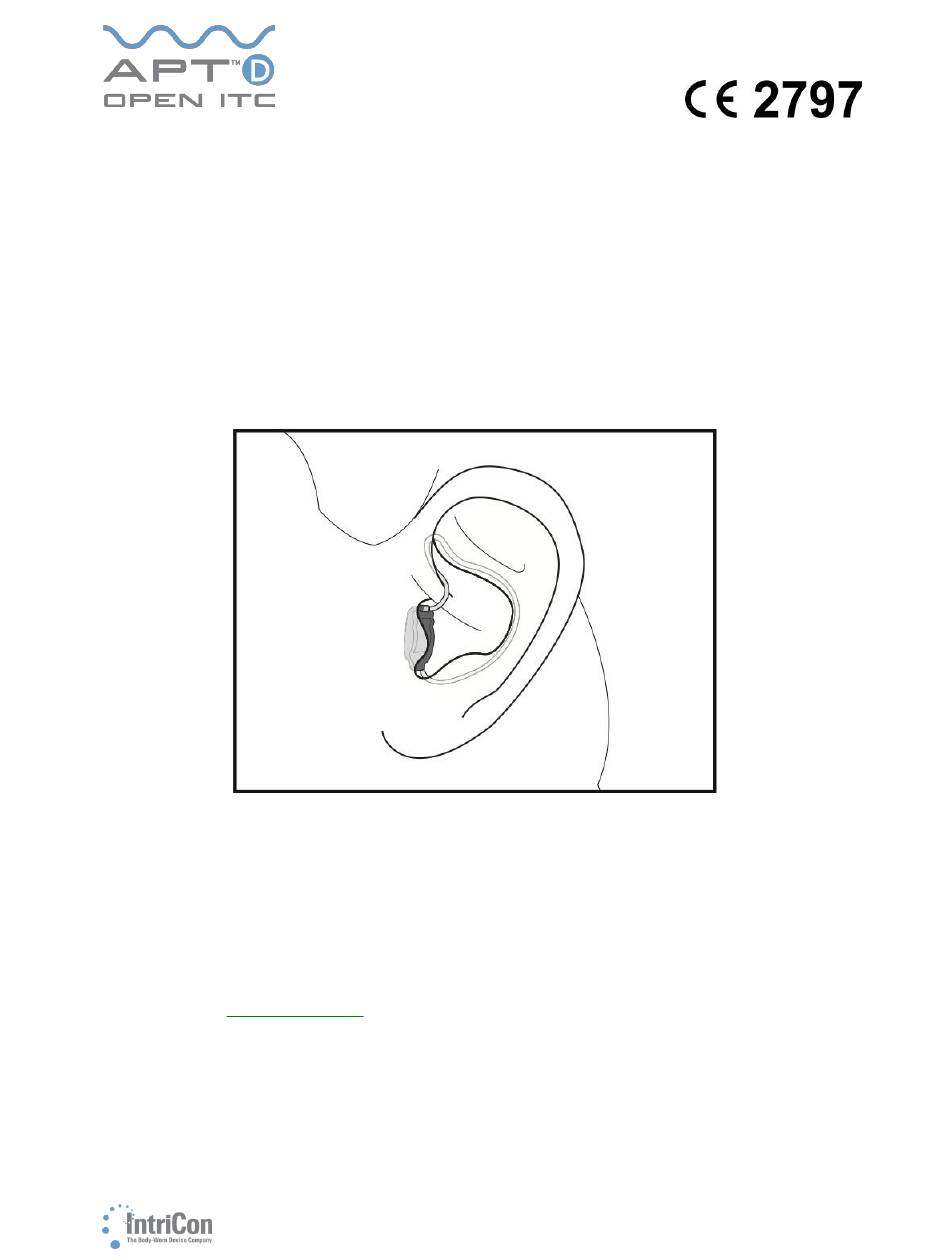

Figure 1
Selecting the appropriate D-Ring
- Attach the medium D-Ring to the APT-D body
Doc 22556 Rev C ECO 58875 (10/28/19)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for IntriCon APT-D
Summary of Contents for IntriCon APT-D
- Page 1 (see Attaching D-Ring to APT-D Body below). Step 3: Insert the APT-D into ear (see Inserting APT-D into Ear below). If the D- Ring will not fit or is deformed when it is in the ear then go to step 7 Small D-Ring.
- Page 2 APT-D Body (see Removing the APT-D D-Ring below). Step 8: Insert the APT-D into ear (see Inserting APT-D into Ear below). If the D- – The APT- Ring will not fit or is deformed when it is in the ear then Stop D is not an appropriate device try an open fit BTE.
- Page 3 Attaching the D-Ring to the APT-D Body The APT-D body is designed to work for either the left or right ear. Attaching the D- Ring to the body will make the APT-D into a left or right device.
- Page 4 Figure 6 Removing the APT-D D-Ring To remove the APT-D D-Ring, pull in the opposite direction in which it is shown to attach them above. Hold the device in one hand. Then pull at the upper and lower clips with the other hand until the D-Ring releases from the unit. It is very important that you hold the D-Ring as close to the clip as possible to prevent any damage to the D-Ring.
- Page 5 Left Ear Figure 7 With the APT-D in your left hand, move the device up to your ear (fig 8). Begin inserting the device by directing the nose of the device a short distance down the ear canal towards the ear drum (fig 9). Gently push the D-Ring into the concha from the bottom (fig 10) and the top (fig 11).
- Page 6 (A loose fit is preferable to a fit that causes pressure on the ear or in the canal). When a user is first learning how to insert the APT-D into their ear, a mirror or finding someone to assist is highly recommended.
- Page 7 D-Ring (fig 13). Then pull the D-Ring and device out of the ear. Figure 13 APT-D Acoustic Push Button The acoustic push button has four settings: Off, Single Tap, Double Tap and Hold &...
- Page 8 Operating the tap switch does NOT require the device to be touched. Inserting and Extracting the Wax Guard 1260 Red Fox Road ∙ Arden Hills, MN 55112 ∙ TEL: (651) 636-9770 ∙ FAX: (651) 636-8944 Kesselschmiedstrasse 10 ∙ D-85354 Freising, Germany ∙ TEL: 049-8161-4804-0 ∙ FAX: 049-8161-4804-18 www.intricon.com...
- Page 9 The APT-D is designed for a shallow location in the ear canal, so wax is typically less of an issue than with traditional ITEs. Still, a wax guard is used to insure against wax damage to the receiver. A wax guard tool is used for the removal and insertion of the wax guards.
- Page 10 Figure 16 1260 Red Fox Road ∙ Arden Hills, MN 55112 ∙ TEL: (651) 636-9770 ∙ FAX: (651) 636-8944 Kesselschmiedstrasse 10 ∙ D-85354 Freising, Germany ∙ TEL: 049-8161-4804-0 ∙ FAX: 049-8161-4804-18 www.intricon.com...
