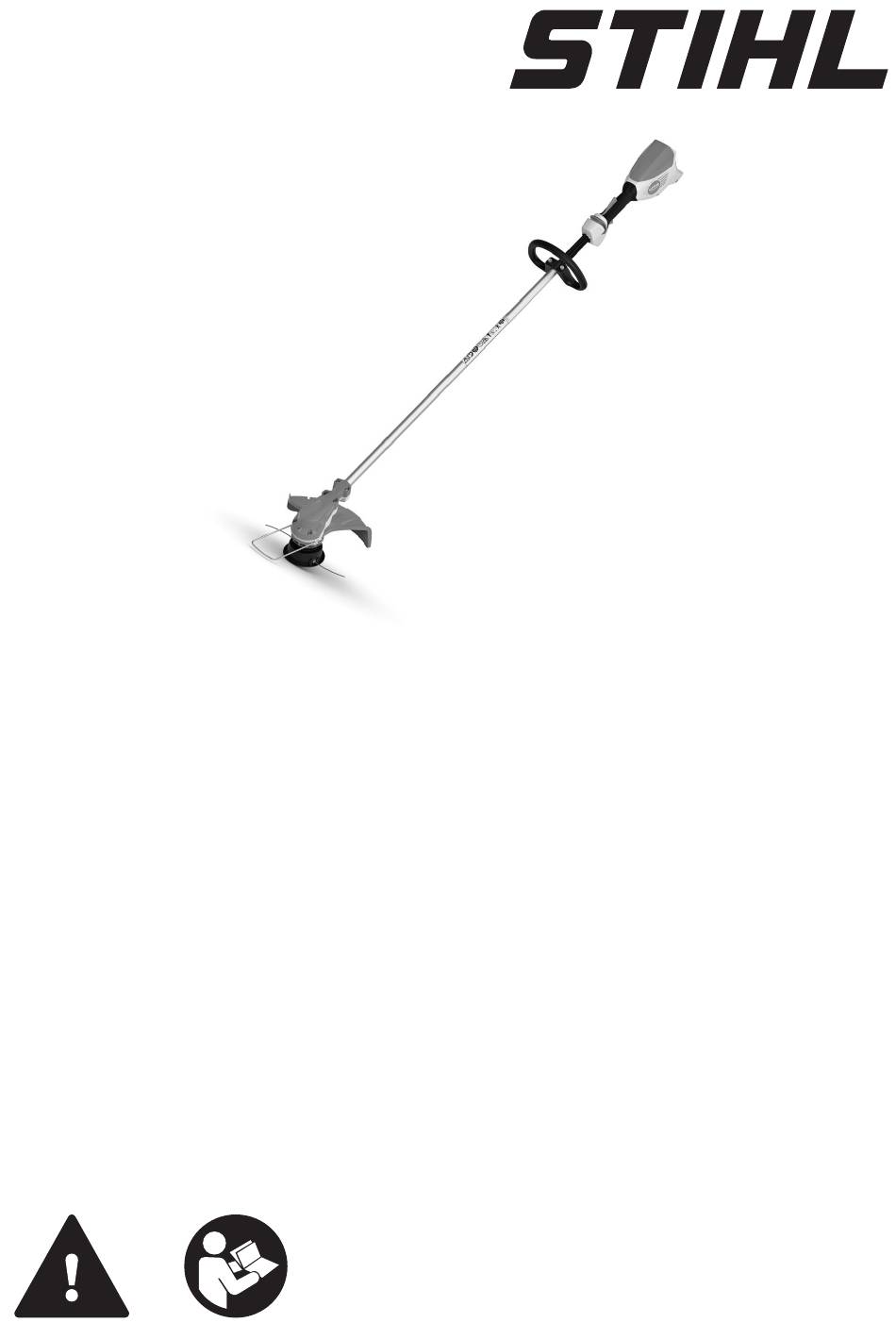

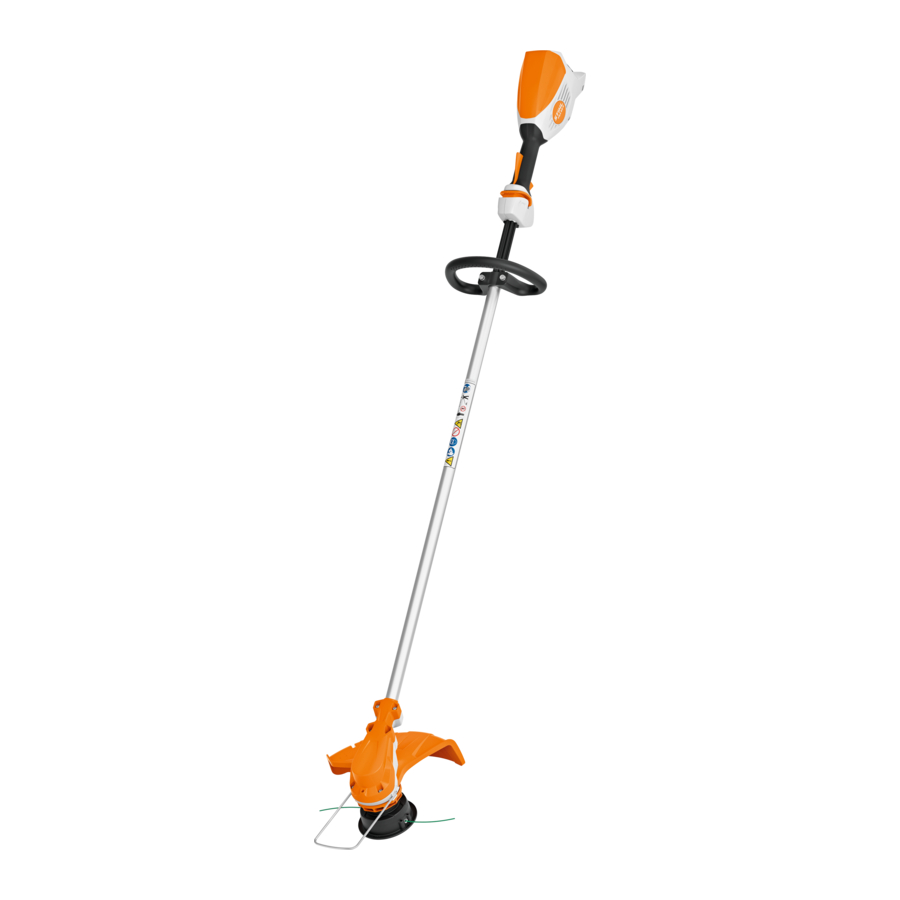

- Page 1 STIHL FSA 60 R 2 - 20 Instruction Manual...
-
Page 2: Table Of Contents
STIHL expressly commit themselves to a sus‐ tainable and responsible handling of natural resources. This user manual is intended to help you use your STIHL product safely and in an environmentally friendly manner over a long service life. We thank you for your confidence in us and hope you will enjoy working with your STIHL product. -
Page 3: Overview
3 Overview English Overview 12 Connecting cable The connecting cable connects the charger to Brushcutter, battery and the mains plug. charger 13 Charger The charger charges the battery. 14 Battery The battery supplies power to the brushcutter. 15 LEDs The LEDs indicate the state of charge of the battery and any faults. -
Page 4: Safety Precautions
Intended Use The data next to this symbol indicates the energy content of the battery according to The STIHL FSA 60 R brushcutter is designed for the cell manufacturer’s specification. The mowing grass. energy content available during operation is lower. - Page 5 ► If you have any queries: Contact a STIHL assess them. Bystanders, children and ani‐ servicing dealer for assistance.
- Page 6 ► Never mount metal cutting attachments. ► Do not operate it in the rain or in a ► Fit genuine STIHL accessories for this brush‐ damp environment. cutter. ► Mount the cutting attachment and deflector as described in this user manual.
- Page 7 ► Work with a correctly installed line limiter ► Replace worn or damaged warning signs. blade. ■ Fluid may leak from a damaged battery. If the ► If you have any queries: Contact your STIHL fluid contacts the skin or eyes, this may cause servicing dealer. irritation.
- Page 8 ► Stop work, remove the battery and contact ► Do not touch damaged areas. ► Disconnect the plug from the wall your STIHL servicing dealer for assistance. outlet. ■ Trimmer vibrations may occur during opera‐ ► Never touch the connecting cable, extension tion.
- Page 9 4 Safety Precautions English ► Lay the connecting and extension cables on ► Pack the battery in packaging in such a way a dry surface. that it cannot move. ■ The extension cable becomes hot during oper‐ ► Secure the packaging so that it cannot move. ation.
-
Page 10: Preparing Trimmer For Operation
■ The charger is not protected against all ambi‐ repairs: Contact your STIHL servicing dealer ent conditions. The charger may be damaged for assistance. if it is exposed to certain ambient conditions. -
Page 11: Charging The Battery, Leds
0-20% temperature. The actual charging time may differ from the specified charging time. For specified charging times see www.stihl.com/charging- times. ► Press the button (1). The charging process starts The LEDs (5) glow green for about 5 seconds and indicate the state of charge. -
Page 12: Assembling The Trimmer
English 7 Assembling the Trimmer LED on Charger The LED indicates the operating status of the charger. If the LED glows green, the battery is being charged. ► If the LED flashes red: Rectify the malfunction. Malfunction in charger. Assembling the Trimmer ►... -
Page 13: Adjusting Trimmer For User
8 Adjusting Trimmer for User English Adjusting Trimmer for User Adjusting and Setting the Loop Handle The loop handle can be set to different positions to suit the height and reach of the user. ► Switch off the brushcutter and remove the bat‐ tery. -
Page 14: Switching The Trimmer On/Off
► Release the trigger and the Ergo lever. ► Wait for the cutting attachment to stop rotat‐ ing. ► If the cutting attachment continues to rotate: Remove the battery and contact your STIHL dealer. The brushcutter is defective. 11 Testing the Trimmer and ►... -
Page 15: Operating The Trimmer
► Press button on battery. The LEDs glow or flash. ► If the LEDs do not glow or flash: Do not use the battery and contact your STIHL servicing dealer. There is a malfunction in the battery. 12 Operating the Trimmer 12.1... -
Page 16: Storing
15.2 Storing the Battery with a damp cloth. STIHL recommends that you store the battery ► Clean the electrical contacts in the battery with a charge between 40 % and 60 % (2 LEDs compartment with a paintbrush or soft brush. -
Page 17: Maintenance
► If the connecting cable has a malfunction or is vals: damaged: Do not use the charger and have Every 12 months connecting cable replaced by a STIHL servic‐ ► Have the trimmer checked by a STIHL servic‐ ing dealer. ing dealer. 18 Repairing 18.1... -
Page 18: Specifications
– Cord length 20 m up to 50 m: AWG 13 / – Length without cutting attachment: 1680 mm 2.5 mm² The running time is shown at www.stihl.com/ battery-life. If rated voltage on the rating label is 100V to 127V: 20.2... -
Page 19: Combinations Of Cutting Attachments And Deflectors
21 Combinations of Cutting Attachments and Deflectors English tools. The vibration levels actually occurring may Original STIHL spare parts and original STIHL vary from the values indicated, depending on the accessories are available from STIHL dealers. type of application. The vibration levels indicated... - Page 20 2014/35/EU, 2014/30/EU and 2011/65/EU. The year of manufacture, country of manufacture and serial number are applied to the blower. The complete EC Declaration of Conformity is available from ANDREAS STIHL AG & Co. KG, Badstrasse 115, 71336 Waiblingen, Germany. 0458-832-0121-B. VA0.B21.
- Page 21 24 EC Declaration of Conformity English 0458-832-0121-B. VA0.B21.
- Page 22 English 24 EC Declaration of Conformity 0458-832-0121-B. VA0.B21.
- Page 23 24 EC Declaration of Conformity English 0458-832-0121-B. VA0.B21.
- Page 24 *04588320121B* 0458-832-0121-B...
