BEER GN 2/1 Operating Manual, Installation & Technical Specifications
Hot tower heated self-service showcase for presentation of warm packaged food
Hide thumbs
Also See for GN 2/1:
- Operating manual (27 pages) ,
- Operating instructions & installation instructions (23 pages)
Subscribe to Our Youtube Channel
Related Manuals for BEER GN 2/1
Summary of Contents for BEER GN 2/1

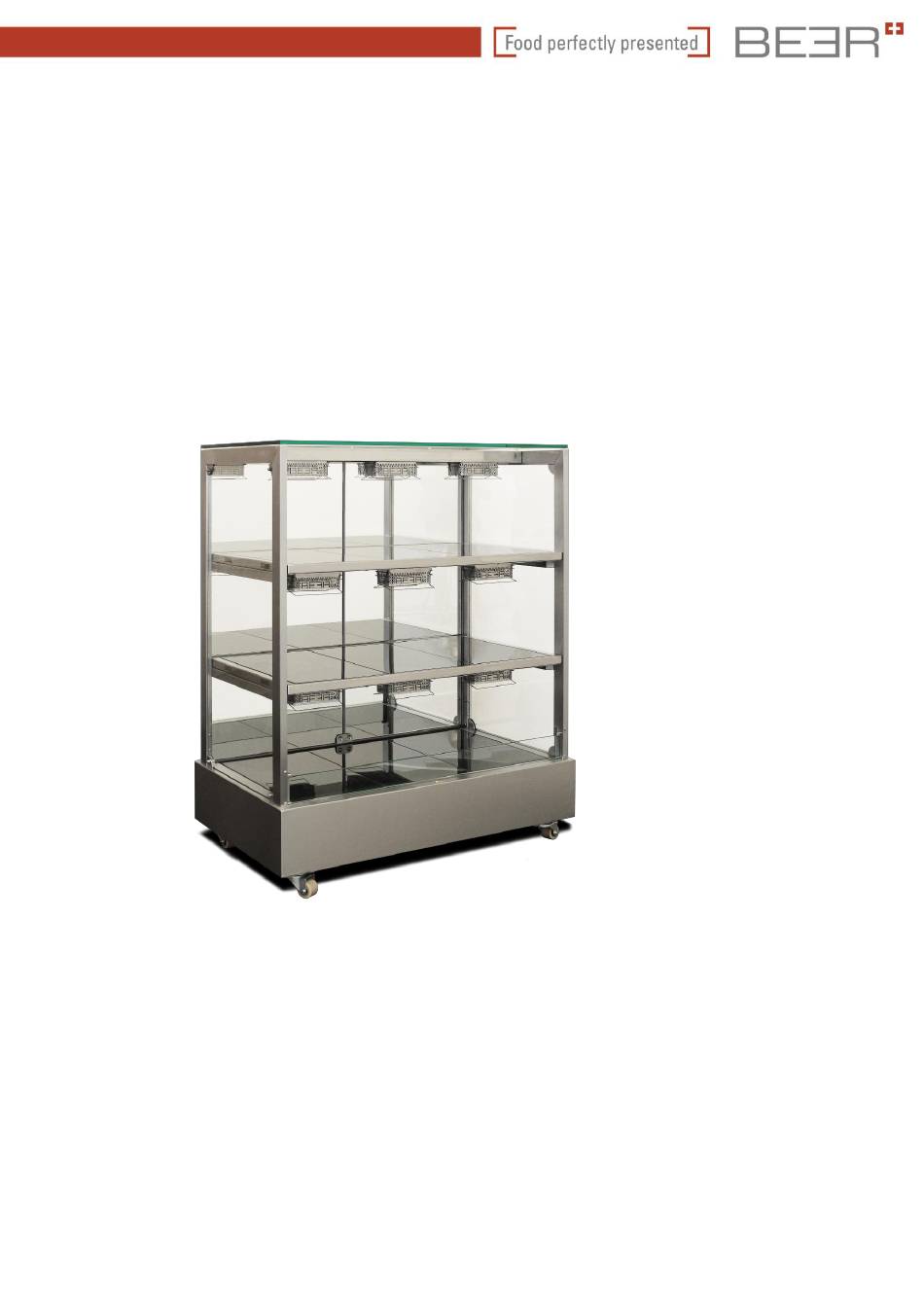

- Page 1 Hot Tower Heated Self-Service Showcase for presentation of warm packaged food Operating Manual Installation & Technical Specifications...
-
Page 2: Table Of Contents
11.2 Guide to Install the touch-guard (optional) ..............16 11.3 Lamps and heating elements ..................17 11.4 Trouble shooting ......................18 After sales service ......................19 Appendix ........................20 Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a Tel. - Page 3 Warranty claims can only be forwarded if all instructions are strictly followed. Version Datum Mutation 1.00 01.05.2019 create Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a Tel. +49 (0)71 61 659 876 info@beergrill.com CH –...
-
Page 4: Introduction
The manual must always be kept close to the unit and easily accessible. Caution! Beer Grill AG cannot assume any responsibility or warranty obligations for any damage sustained due to non-adherence to the installation and oper- ating instructions or due to improper use. -
Page 5: Technical Data
Children must not be allowed to play with the equipment. Cleaning and operator's maintenance must not be per- formed by children without supervision. Technical data GN 2/1 GN 3/1 GN 4/1 Dimensions in mm (W x D x H) -
Page 6: Operating Instructions And General Information
Any changes or alterations of the appliance or the use of individual spare parts and especially parts essential for the functioning of the appliance that are not original Beer Grill parts as well as non-adherence to notes in the operating manual will cause the lapse of our warranty and the exclusion of liability claims. -
Page 7: Safety References
Ceran plate, if heating elements switched on and until they are completely cooled down. • Shatter protection glass with bracket, halogen lamp and housing. • Cover of illumination bridge. Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a Tel. +49 (0)71 61 659 876 info@beergrill.com... -
Page 8: Glass/Accident Risk
Counter is again ready for operation. Glazing/Danger of accident Beer counters are equipped with one sheet safety glass (ESG). Incorrect, badly mounted or damaged glass may fall out and cause serious injuries. Be sure to check all glazing before opening the self-service counter, but also after cleaning the glass (especially the front- glass) if: •... -
Page 9: Warranty And Liabilities
Warranty and liabilities Basically, the "General Terms and Conditions" of the Beer Grill AG company, Allmendstrasse 7, CH-5612 Villmergen, apply in which the details of the guarantee claims are regulated. Claims of warranty are excluded if they result from one or more of the follow- ing causes: •... -
Page 10: Installation Of The Hot Tower
Stainless steel is not totally resistant to substances containing chlorine or acids. These may corrode the equipment's materials. The appliances must not get in contact with such substances. Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a... -
Page 11: Connecting Of The Hot Tower
After installing the Hot Tower, socket for electric connection has to remain accessible if possible. The replacement of the connection cable has strictly to be done by the manu- facturer, after sales service or an authorized technician only. Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. -
Page 12: Start-Up/Operating Manual
If settings have to be altered, loosen the screws and remove the cover. After the settings have been made, re- place the cover and secure with the screws. Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a Tel. -
Page 13: Control
Never fill with too much product or product that is too cold! We recommend switching off the warming devices when they are not being used outside operating hours. Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a... -
Page 14: Cleaning And Care
The heat plates are to be cleaned only with a smooth cloth and a usual, non-abra- sive household cleaner. • Rear panels/doors Use only soft cloth with a neutral cleaning agent to clean the mirror. Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a Tel. -
Page 15: Prohibited Detergents And Techniques
In addition to daily cleaning, service and maintenance of the warming de- vices are required to be carried out in regular intervals by qualified special- ists. Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a... -
Page 16: Maintenance
Repair work must only be done by trained, qualified personnel and only original replace- ment parts may be used. 11.2 Guide to Install the touch-guard (optional) Hold the touch-guard with both hands. Slightly pull apart Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a Tel. -
Page 17: Lamps And Heating Elements
Caution Infrared lamps with less than 100 Watt (Item 2002660) have not enough power and the food cool down very rapidely. Caution risk of burning! Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a Tel. -
Page 18: Trouble Shooting
We are not liable for loss of goods, even if the appliance is still covered by warranty. It is therefore recommended that the temperature of the appliance be checked periodically. Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a... -
Page 19: After Sales Service
In this case, the appliance must be repaired by a qualified technician or by the Beer Grill customer service. Inform the Beer Grill customer service in case of malfunctions. Please check the electrical connections and the fuses before calling. -
Page 20: Appendix
13 Appendix Drawing No. 19Ea030-40B wiring diagram, 3 level GN 2/1 until GN 4/1 Drawing No. 19Ea040-44B wiring diagram, 4 level GN 2/1 until GN 4/1 Drawing No. 19Ea050-44B wiring diagram, 4 level GN 5/1 Drawing No. 19Ea050-45A wiring diagram, 5...
