230vac control unit with radio receiver to control one 24vdc motor for adjustable slats - 120w integrated transformer (24 pages)
Summary of Contents for Teleco TVPLA868CC2

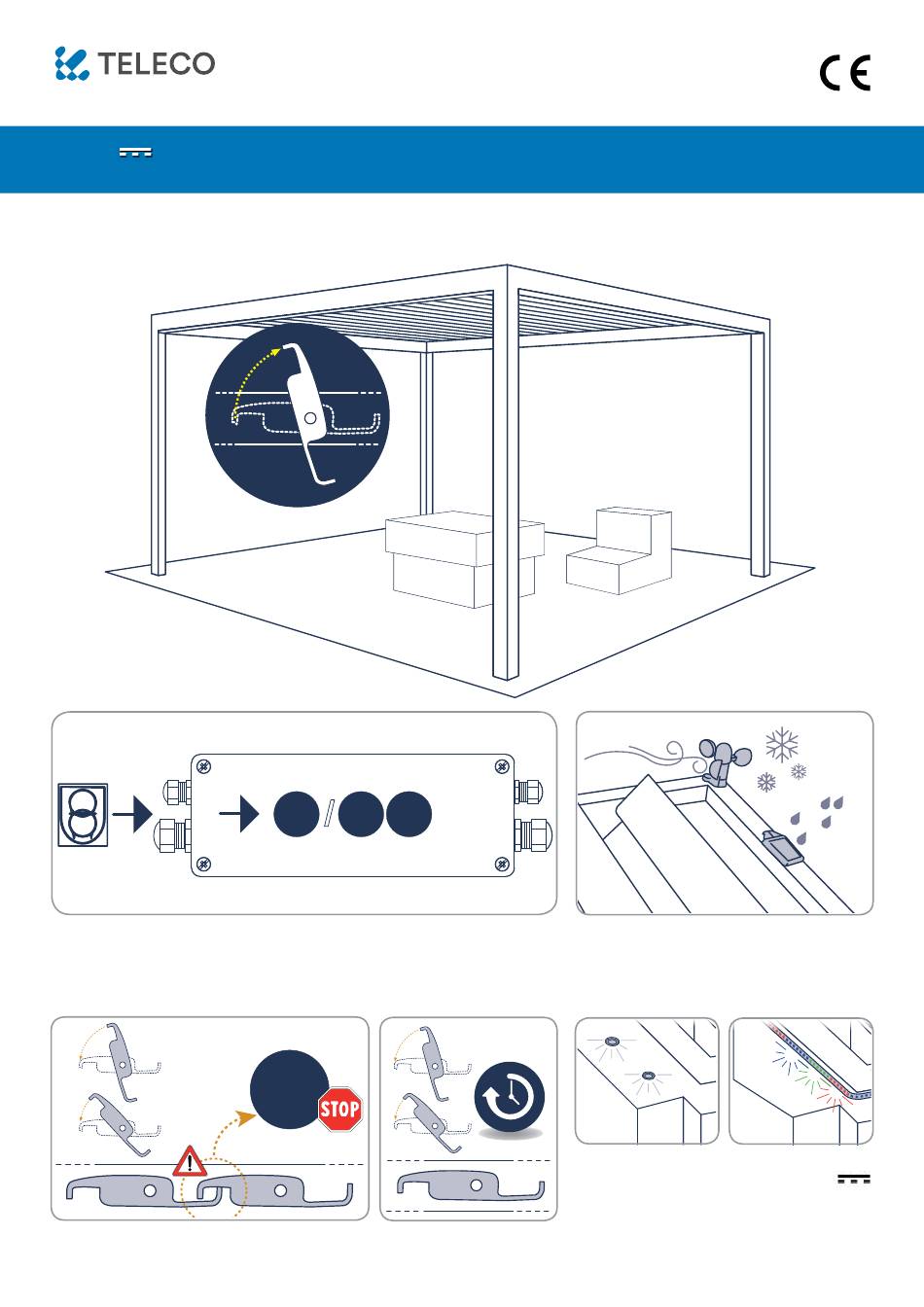

Page 1
Self-learning procedure for limit switches and working times. 24Vdc 24Vdc 24Vdc LED CARD (optional) to control the 1-colour, RGB or RGBW 24V LED lights. 24Vdc 24Vdc TVPLA868CC2(S)-CC2B(S) DATE: 06/04/18 DOC.: T569.16_EN This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights...
Page 2
To prevent infiltration of water, wire the product as follows: The manufacturer, Teleco Automation s.r.l, declares that the type of radio equipment is compliant with Directive 2014/53 / EU. The full text of the EU compliance declaration is available at the following Internet...
Page 3
RAIN SENSOR (WHITE, +12V Power supply RAIN SENSOR (BLUE, SIGNAL) Optional LED CARD RAIN SENSOR (YELLOW, GND) (only in TVPLA868CC2(S) version) 10A Fuse AERIAL RF AERIAL GND ATTENTION! The electronic board is protected by a 10A fuse. TEMPERATURE SENSOR (BLACK) The maximum allowed power, including the plug-in LED controller board, is 240W.
Page 4
Pergola with 1 motor 1. MOTOR CONFIGURATION 5 s) L3 flashes Continuous sound DIP4=OFF Press P1 and P2 simultaneously DIP5=OFF and hold for 5 s Check that movement 24Vdc stops when the limit switch is reached (L1 ON) If it doesn’t, change the Closing threshold as per PAR 2.4 (page 7) and repeat.
Page 5
Pergola with 2 synchronized motors 1. MOTOR CONFIGURATION 5 s) L3 flashes Continuous sound DIP4=OFF Press P1 and P2 simultaneously DIP5=ON and hold for 5 s Check that movement 24Vdc s t o p s w h e n t h e l i m i t switches are reached (L1 L1+L2 and L2 ON)
Page 6
Pergola with 2 independent motors 1. MOTOR 1 CONFIGURATION 5 s) L3 flashes Continuous sound DIP4=OFF Press P1 and P2 simultaneously DIP5=OFF and hold for 5 s Check that movement 24Vdc stops when the limit switch is reached (L1 ON) If it doesn’t, change the Closing threshold as per PAR 2.4...
Page 7
3. SELF-LEARNING OF LIMIT SWITCHES MOTOR 1 first, then MOTOR 2 < 1 s complete complete 5 s) opening opening complete complete closing closing Press P1 and P2 simultaneously twice in quick succession and hold them the second time for 5 s DO NOT change the DIP configuration.
Page 8
TRANSMITTERS Transmitter with built-in light sensor 0 % (Closed) (see product instructions for details) 33 % 66 % 1 - Light sensor 100 % (Open) 2 - OPEN button Open (hold-to-run) 3 - CLOSE button 7/42 STOP 4 - Light level memorization button GREEN MOUSE CHANNEL 5 - Activation/deactivation light control button...
Page 9
Radio codes memorization P1 or P2 If the system is configured as pergola with 2 independent motors, it associates memorization procedure using P1 to motor 1 and memorization procedure using P2 to motor 2. Note: the same radio code can in any case be associated with both motors. In the other configurations memorization is possible using either P1 or P2.
Page 10
Radio code deletion P1 or P2 If the system is configured as pergola with 2 independent motors, use P1 to delete associations with motor 1 and P2 for motor 2. Carry out deletion with either P1 and P2 if the code is associated with both motors. In the other configurations deletion is possible using either P1 or P2.
Page 11
Alarm priority Factory setting WIND sensor HIGH ACTIVATED The anemometer (ANEM4) detects wind speed, which the control unit compares with the threshold set through DIPs 1-2-3 (see table). The control unit is only compatible with anemometers generating 4 pulses per rev. DIP1 DIP2 DIP3...
Page 12
Activation/deactivation of the TEMPERATURE sensor by means of P1 * continuous ACTIVATION *** sound (only if the sensor is connected) 5 s) L4 flashes DEACTIVATION *** once every 3 s Alarm priority Factory setting RAIN sensor ACTIVATED ALARM ACTIVATED when What happens with ALARM ACTIVATED ALARM NOT ACTIVE when The sensitive surface of the sensor detects...
Page 13
Change of the automatic alarm angles Use the following procedures to change the default angles of the pergola slats associated with the alarms. The system must have been configured and at least one transmitter memorized. HOLD P1 or P2 ** (5 s) continuous sound...
Page 14
TROUBLESHOOTING (what to do IF…) Problem Solution The system needs to be programmed, see section 2. At power-on, the control unit does not move the motors and emits no warning. L3 flashes and an intermittent sound starts after configuration. Repeat the procedure. At the end of it DO NOT change the DIP4-5 setting. P1 and P2 must be pressed simultaneously.
Page 15
TVPLA868CC2B(S) TVPLA868CC2B(S) M1 + M2 (4 wires Sensors Sensors Power supply cable) Only in TVPLA868CC2(S) version (h = 74mm) Power supply Max. power for each output 4,5A 185 mm Maximum power applicable to the board 240W Fuse (blade) Operating temperature range -20°...
Page 16
TELECO AUTOMATION GMBH TELECO AUTOMATION OCEANIA PTY LTD ITALY FRANCE GERMANY AUSTRALIA Tel. +33.(0)472.145080 Tel. +39.0438.388511 Tel. +49.(0)8122.9563024 Tel. +61.(07)5502.7801 info@telecoautomation.com info@telecofrance.com info.de@telecoautomation.com info@telecoautomation.com.au This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights...
