Summary of Contents for Beka Hospitec AVERO Premium Plus
Page 1
Operating manual Original operating manual AVERO Premium Plus Lifting bath tub Version 2.10 / English Subject to technical modifications 2020-11-16...
Installation ......................12 Electrical connection ..................12 Protective conductor ..................13 First start-up ....................13 6.3.1 AVERO Premium Plus, floor mounting .............14 6.3.2 AVERO Premium Plus, wall mounting .............15 Operating elements and their function ..............17 Keypad for operating the bath tub functions ...........18 7.1.1 The height adjustment................18...
Page 3
Disposal of the product ................25 Troubleshooting/customer care service .............26 Appendix ......................28 13.1 Technical data .....................28 13.2 Dimensions of the AVERO Premium Plus 190 .........29 13.3 Dimensions of the AVERO Premium Plus 170 .........30 13.4 Wiring diagram ....................31 13.5 Declaration of Conformity ................32 13.6...
1.1 Acknowledgement Dear customer, we would like to express our sincere thanks for the trust you have placed in us by purchasing this BEKA Hospitec GmbH product. Our products are manufactured and tested according to stringent quality criteria. 1.2 Manufacturer’s address BEKA Hospitec GmbH Am Rübenmorgen 3...
The maintenance, inspection, assembly and installation as well as well as further technical interventions on the product must only be executed by BEKA Hospitec either by specialised companies authorised to this effect by BEKA Hospitec. The operation of the product as well as technical interventions on the product must only be carried out by specially trained personnel.
3.3 Description In this manual, the product is called bath, lifting bath tub and tub. These names always refer to the same product. Operating manual AVERO Premium Plus V2.10 E Page 6 of 44...
The product has been designed for bathing and caring for patients in hospitals and care centres. The AVERO Premium Plus lifting bath tub may only be used for the specified purpose. NOTE The AVERO Premium Plus lifting bath must be used by...
Solely intended for indoor use. Protection class I Do not put feet on the frame. Protection against the penetration of liquids: Protection against IPX4 water splashing from all directions. Operating manual AVERO Premium Plus V2.10 E Page 8 of 44...
▪ Please make sure that your feet are not located beside the bath tub before and during the height adjustment procedure. ▪ Do not stand between the bath tub and an obstacle during the transport procedure. Operating manual AVERO Premium Plus V2.10 E Page 9 of 44...
Page 10
▪ The tub size reducer must be inserted in the opposite guides. ▪ Repairs to components of the AVERO Premium Plus lifting bath tub are only authorized by trained expert personnel. Please contact the after-sales service. The opening the device or other accessories will lead to the expiration of all guarantee, warranty and liability claims.
(at least 2 persons). Remove the bubble wrap and the stretch film. Please take care not to damage the surface of the bath tub with the tools. Operating manual AVERO Premium Plus V2.10 E Page 11 of 44...
All supply and drain hoses as well as the electrical cables must be installed so as to avoid the danger of tripping. The AVERO Premium Plus is connected to the power supply network through a shock- proof protective socket featuring the legally prescribed splash guard (IP class), 230 V AC/50Hz, 3 x 1.5 mm², 1.5 KW, 16 Ampere, fault-current circuit breaker 30 mA,...
Only when these conditions are met, the manufacturer considers himself responsible for the impact on the safety, the reliability and the function of the device. In the event of a new connection of an AVERO Premium Plus lifting bath tub, the technical data must be observed. WARNING To prevent scalding, the hot/cold water mixer must be set up in accordance with the local water supply prior to the first use.
Installation 6.3.1 AVERO Premium Plus, floor mounting The bath tub requires additional fixation in order to avoid tilting. Please observe the images below to this effect. Components: Tools: Image 1: Image 2: Image 3: Image 4: Image 5: Image 6:...
Installation Image 13: Image 14: 6.3.2 AVERO Premium Plus, wall mounting The bath tub requires additional fixation in order to avoid tilting. Please observe the images below to this effect. Components: Tools: Image 1: Image 2: Image 3: Image 4:...
Page 16
Installation Image 11: Image 12: Image 13: Image 14: Image 15: Image 16: Image 17: Operating manual AVERO Premium Plus V2.10 E Page 16 of 44...
Adjustable tub legs USB-port sound system (optional) Bath tub shortener (optional) Keypad Temperature sensor for the bath water temperature Aromatherapy system screw Eccentric plug with tub outlet connection (optional) Tub inlet Operating manual AVERO Premium Plus V2.10 E Page 17 of 44...
If you press the “UP” button, the bath travels up. If you press the “DOWN” button, the bath travels down. When the end-of-travel positions are reached, the travel movement is automatically switched off. Operating manual AVERO Premium Plus V2.10 E Page 18 of 44...
Keep button (5) pressed and then press the buttons (8) and (10) simultaneously. The hand shower can at all times (even when the scalding protection is active) be switched off by pressing button (5). Operating manual AVERO Premium Plus V2.10 E Page 19 of 44...
If you bath tub features the “Automatic water stop” function, the water supply is automatically stopped when the filling level is reached. For the AVERO Premium Plus lifting bath tub, 2 predefined filling heights can be selected for the bath tub filling.

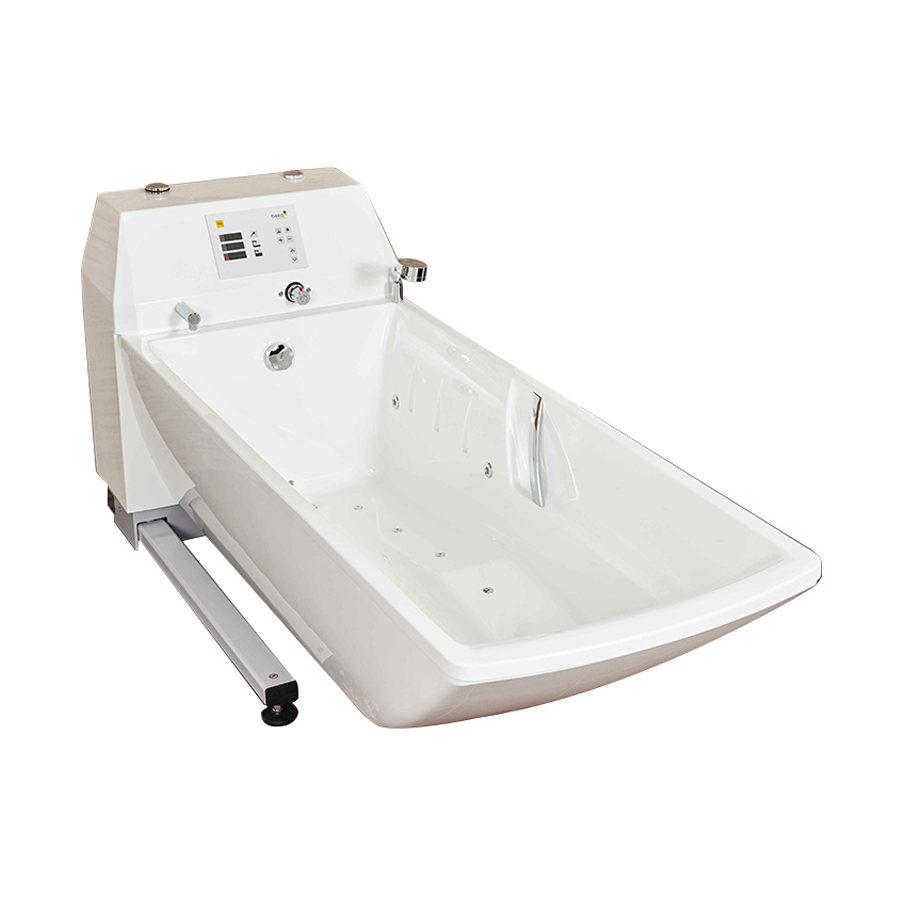

Operation The AVERO Premium Plus lifting bath tub is an ergonomically shaped bath tub in GFK material with a completely closed external cladding. The lifting bath tub is free standing on three sides and requires only little space.
Cleaning/Disinfection 8.2 During use Press the button “6 or 7” of the keypad to fill the AVERO Premium Plus lifting bath tub. If the water has reached the desired height, the filling is automatically stopped. Note: If your bath tub does not feature the “automatic water stop”...
For the manual disinfection of the surface, an isopropyl alcohol solution or a customary disinfection aerosol (spray) can be used. The tub body of the AVERO Premium Plus lifting bath tub is in glass-fibre reinforced plastic and can be disinfected with a surface disinfectant (not aggressive).
Checks/tests Checks/tests In order to ensure a safe use of our AVERO Premium Plus lifting bath tub and the protection of the users and the patients, BEKA Hospitec prescribes an annual safety check. The execution of the safety checks and maintenance must be documented and proven on request.
BEKA dealer, who will recycle the product in accordance with the locally applicable regulations and laws. For an environmentally-sound disposal, the company BEKA Hospitec GmbH will provide more information in its capacity of manufacturer. Please clean and disinfect the product prior to its disposal as well.
Check that the flow rate is sufficient for the supply conditions. c) Check if the connecting hoses are buckled. Check if the seals are damaged, replace seals if The faucet leaks water. necessary. Operating manual AVERO Premium Plus V2.10 E Page 26 of 44...
Page 27
12 please contact the after-sales services of your dealer either the manufacturer. BEKA Hospitec GmbH Am Rübenmorgen 3 35582 Wetzlar Phone: +49(0)641-9 22 22-0 Fax: +49(0)641-9 22-22-20 info@beka-hospitec.de Operating manual AVERO Premium Plus V2.10 E Page 27 of 44...
- Atmospheric pressure: 800 – 1060 hPA Storage and transport - Temperature range: -20° C to 70° C - Relative humidity: 10% to 80%, non-condensing - Atmospheric pressure: 800 hPa Operating manual AVERO Premium Plus V2.10 E Page 28 of 44...
Option 3.1: as wall drain DN 50, flush with the plate. 0100. Option 3.2: as floor drain, min. drain capacity always 1 l/s. Junction box (at least 16 A. Positioned according to DIN VDE 0100-701. Operating manual AVERO Premium Plus V2.10 E Page 31 of 44...
Shower hose for disinfection (yellow) L = 2.0m 13.6.1 Spare parts/consumables Spare parts or consumables are available upon request from your BEKA Hospitec dealer or directly from the manufacturer. Please note: You cannot exchange and replace all spare parts by yourself.
The image shows the Unscrew the shower hose, which is shower hose from unscrewed from the the angle angle connection. connection to the bath tub. Re-assemble in reversed order! Operating manual AVERO Premium Plus V2.10 E Page 34 of 44...
Image 4: Image 3: The image shows Unscrew the the disinfectant sleeve nut of the hose, which is disinfectant hose. unscrewed from the disinfectant shower. Re-assemble in reversed order! Operating manual AVERO Premium Plus V2.10 E Page 35 of 44...
Unscrew the disinfectant hose and disinfectant hose its angle connection at from the angle the tub. connection. Image 3: The image shows the removed disinfectant hose. Re-assemble in reversed order! Operating manual AVERO Premium Plus V2.10 E Page 36 of 44...
EMC and must be installed and operated in accordance with the EMC instructions included in the accompanying documents. For the devices and systems from BEKA Hospitec GmbH, no special measures must be observed. Portable and mobile HF-communications equipment can interfere with electrical medical equipment.
Page 38
Guidance and manufacturer’s declaration - electromagnetic immunity (Table 202) The AVERO Premium Plus been designed for use in the hereafter listed ELECTROMAGNETIC ENVIRONMENTS. The customer or the user of the AVERO Premium Plus must ensure that the appliance is used in such environment.
Page 39
Guidance and manufacturer’s declaration - electromagnetic immunity (Table 204) The AVERO Premium Plus been designed for use in the hereafter listed electromagnetic environments. The customer or the user of the AVERO Premium Plus must ensure that the appliance is used in such environment.
Page 40
AVERO Premium Plus (Table 206) The AVERO Premium Plus is intended for use in an electromagnetic environment with controlled HF interferences. The customer or the user of the AVERO Premium Plus can avoid electromagnetic interference by respecting and observing the minimum distance between portable and mobile HF telecommunication devices (transmitters) and the AVERO Premium Plus depending on the rated output of the communication device as given below.
According to the Medical Device Directive, you are compelled to keep a journal for this device. You can use this journal as template. Journal Device: AVERO Premium Plus Manufacturer: BEKA Hospitec GmbH, Am Rübenmorgen 3, 35582 Wetzlar Serial number: _____________________________________________ Date of purchase: _____________________________________________ Site:...
Page 42
Appendix Type of Date Result Measure Signature: inspection Operating manual AVERO Premium Plus V2.10 E Page 42 of 44...
